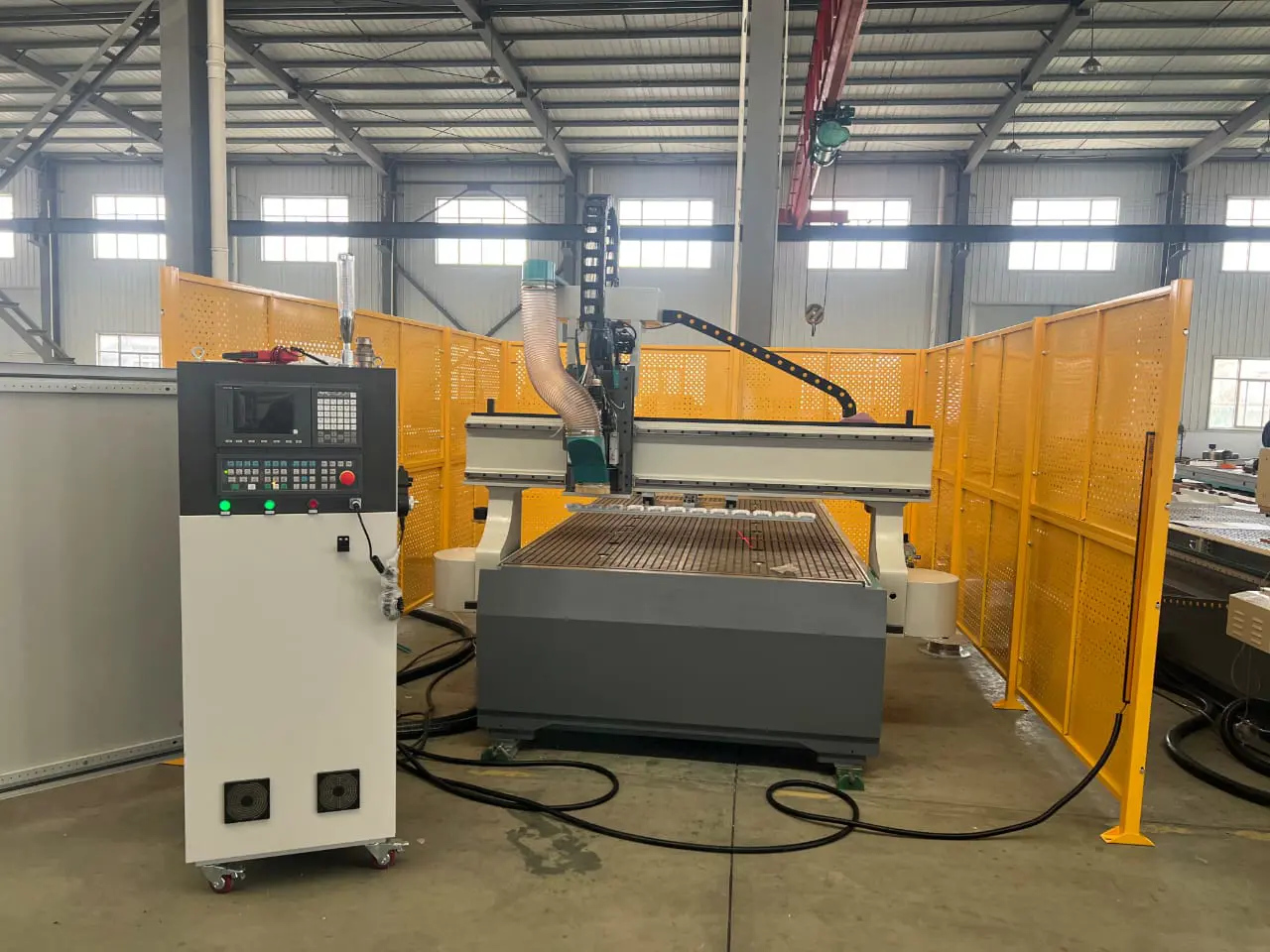

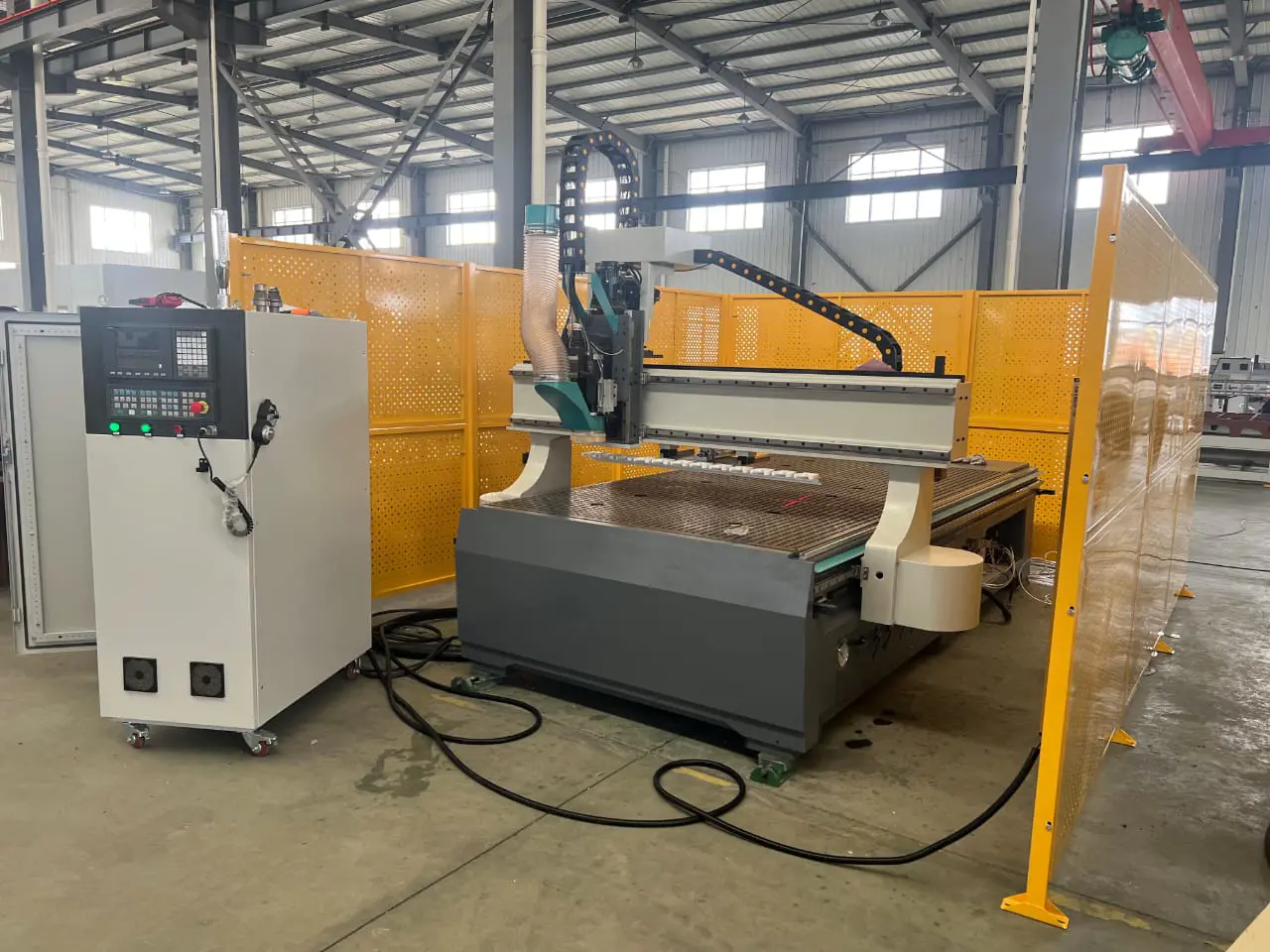

EUROMET W4 CNC milling plotter

EUROMET W4 CNC milling plotter  is designed for precision milling, engraving and machining of materials such as wood, MDF, plastics and light metals. The machine is used in the furniture and automotive industries, prototyping, education, and other applications requiring high machining accuracy.

Key features:

• Rigid, welded H-type frame, subjected to double heat treatment, provides stability and durability during operation.

• Water-cooled 15 kW milling spindle with a speed of up to 24,000 rpm also enables tapping.

• Hybrid table with a vacuum system, T-slots, 6 vacuum zones and a 50 mm thick MDF spoilboard provides secure workpiece clamping.

• Automatic tool change with a 12-position tool magazine reduces setup time and streamlines the machining process.

• PMI linear guides and ball screws on the X, Y and Z axes support positioning accuracy and repeatability.

• The Syntec control system with handwheel facilitates machine operation and machining-process control.

• Tool-length and workpiece sensors enable precise setting of operating parameters.

• Rapid traverse of up to 45 m/min and a maximum machining speed of 24 m/min ensure high productivity.

• Yaskawa servo drives, a Fuling/Sifang inverter and an FCUP lubrication system increase configuration reliability.

• Safety fencing and electrical and pneumatic safeguards enhance operational safety.

Functions

• 2D machining and tapping of M5–M10 holes.

• Ribbed steel structure designed for precision industrial operation.

Standard equipment

• Grid vacuum table with T-slot rails.

• Cooled electrospindle with coolant spray and air blast directed at the tools.

• Automatic tool-change system with a 12-position magazine.

• Tool-length and workpiece probe, auto-calibration function and positioning pointer.

• Syntec software in English/Polish.

• Handheld pendant.

• 5 HSK63F tool holders and 18 ER32 collets.

• Automatic lubrication system.

• Independent dust and chip extraction system.

• Signal tower.

• Safety fencing.

• CE certificate.

• Operating manual in English/Polish.

Software

• Perpetual FreeCAD licence included in the machine price.

• Optional: Fusion 360 licence available at additional cost, quoted upon customer request.

Technical specifications



X-axis travel	1500	mm
Y-axis travel	3000	mm
Z-axis travel	200	mm
Tool magazine capacity	12	-
Spindle power	15	kW
Spindle speed	0-24000	rpm
Tool holder type	HSK63F	-
Collet type	ER32	-
Maximum rapid traverse speed	45	m/min
Maximum machining speed	24	m/min
Positioning accuracy	±0,05	mm
Repeatability	±0,02	mm
Vacuum pump	5,5	kW
Vacuum port diameter	150	mm
Power supply	400 V / 50 ±5%	Hz
Apparent power	24	kVA
Dimensions L × W × H	3760x2468x2065	mm
Machine weight	approx. 3000	kg

 Transport EXW EUROMETAL POLAND MISZEWKO. Warranty: 12 months.
