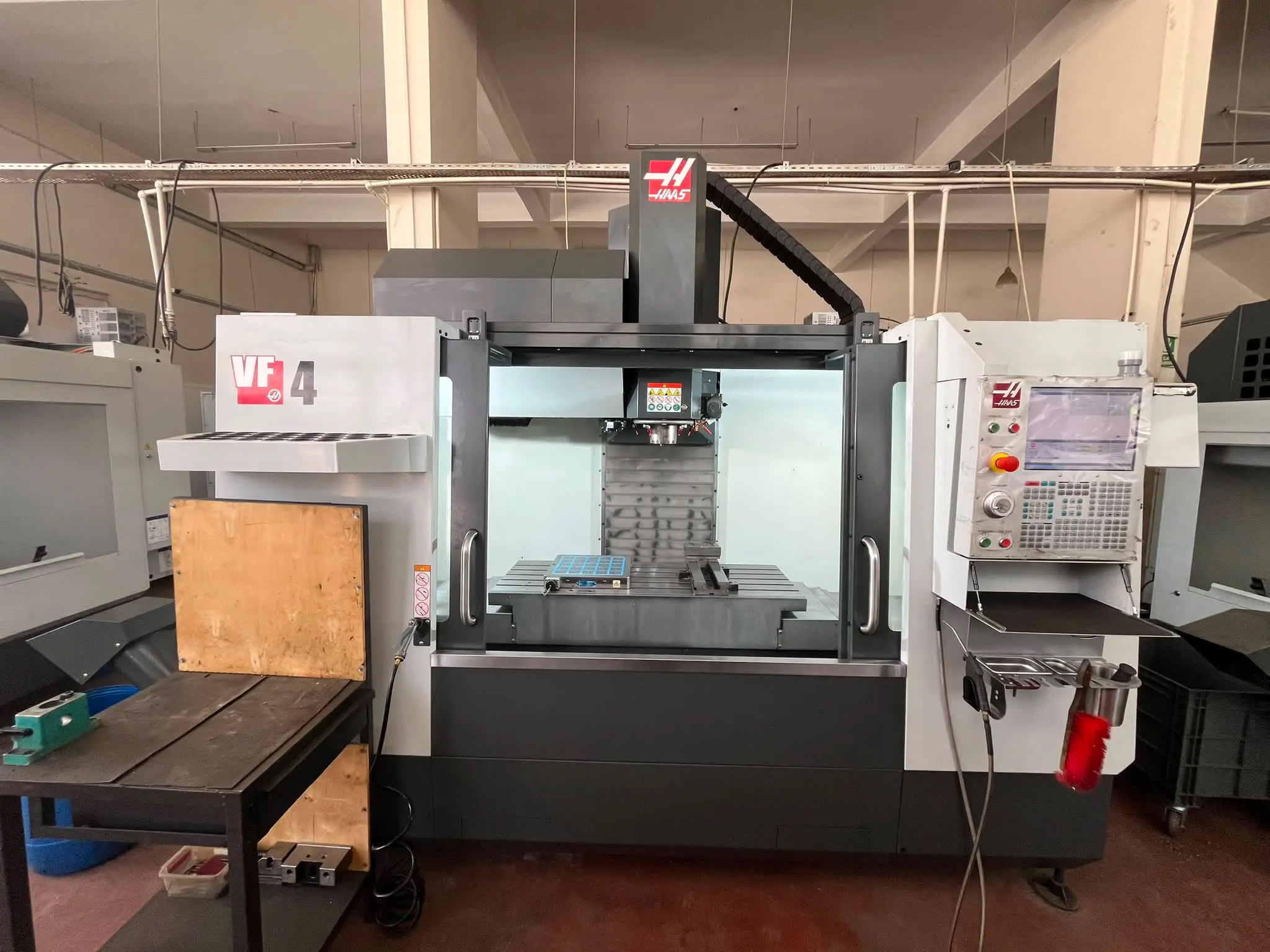

Haas VF-4-SE CNC Vertical Machining Center

• feeds in the X/Y/Z axis: 1270/508/635 mm
• rapid traverse in the X,Y,Z axis: 25.4 m/min
• feed rate in the X,Y,Z axis: 16.5 m/min

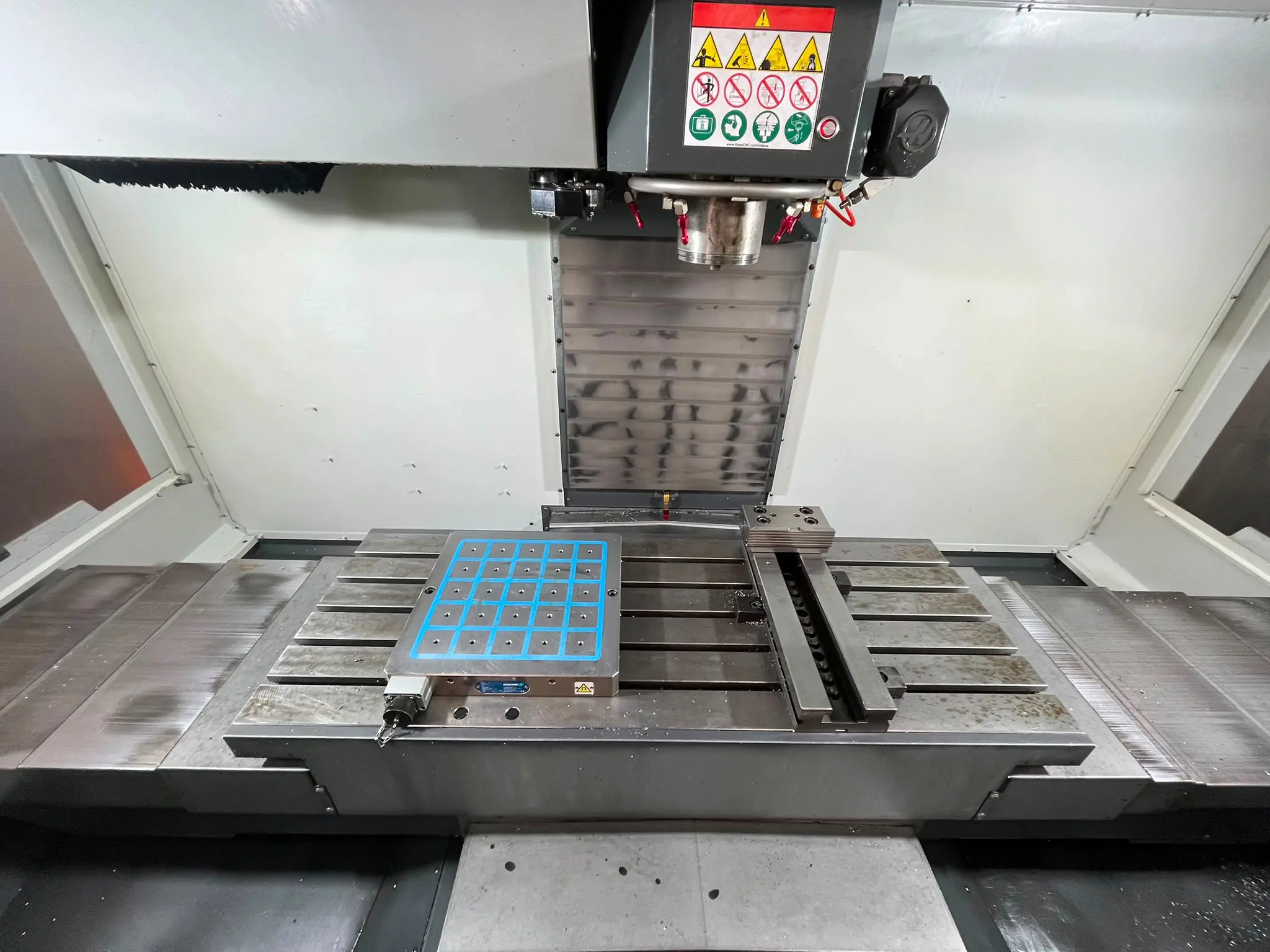

• work table dimensions (L x W): 1321 x 457 mm
• maximum workpiece weight: 1588 kg
• maximum spindle rotational speed: 8100 rpm
• spindle torque (at 2000 rpm): 122 Nm
• spindle torque (at 450 rpm with 2-stage gearbox option): 339 Nm
• maximum spindle power: 22.4 kW
• distance between work table surface and spindle: 102-737 mm
• spindle taper: ISO 40
• 20-position tool magazine
• maximum tool diameter: 89 mm
• maximum tool weight: 5.4 kg
• tool change time: 4,2 s
• positioning accuracy: ± 0.005 mm
• positioning repeatability: ± 0.003 mm
• T-slot width: 16
• distance between T-slots: 80 mm
• maximum pulling force of X and Y axes: 11,3 kN
• maximum pulling force of Z-axis: 18.6 kN
• machine switch-on time: 1435 h
• compressed air pressure: 6.9 bar
• compressed air consumption: 113 l/min
• coolant tank capacity: 208 l
• power supply: 3x 440 V; 50/60 Hz
• weight of machine: 6033 kg

Price: USD 66,000.00
