1MAI PLOIESTI Heavy duty lathe SN1800X3000 Heavy duty lathe

Posted By :
Comments : 0

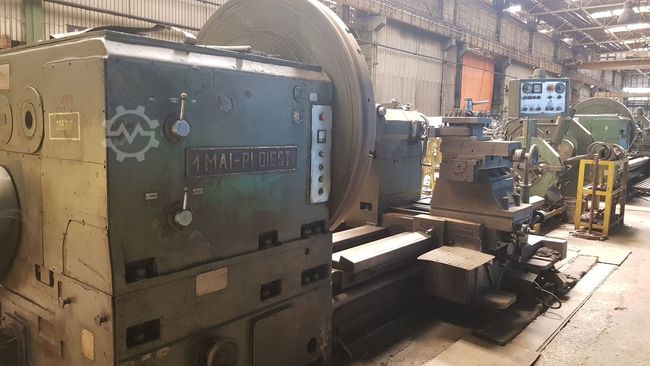

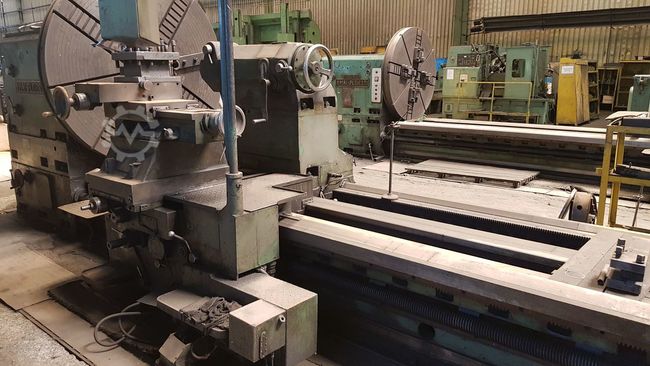

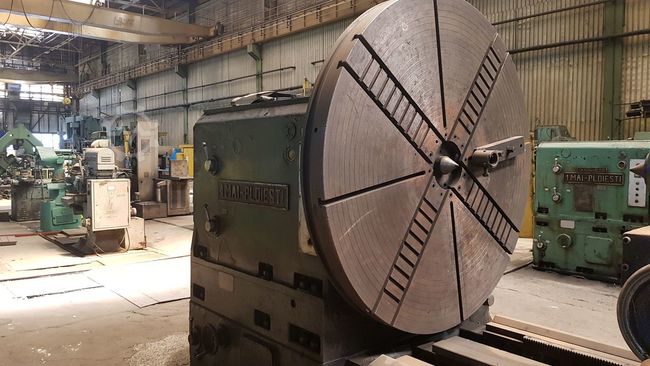

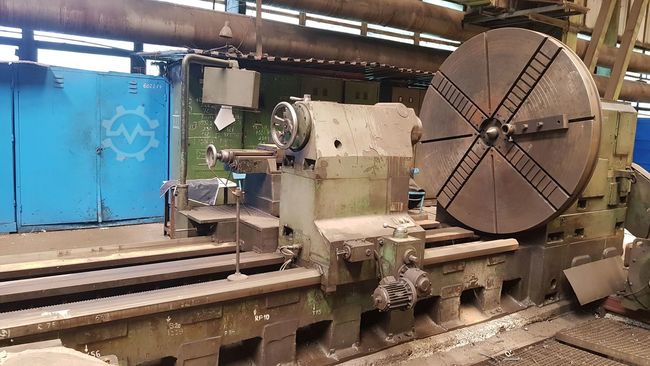

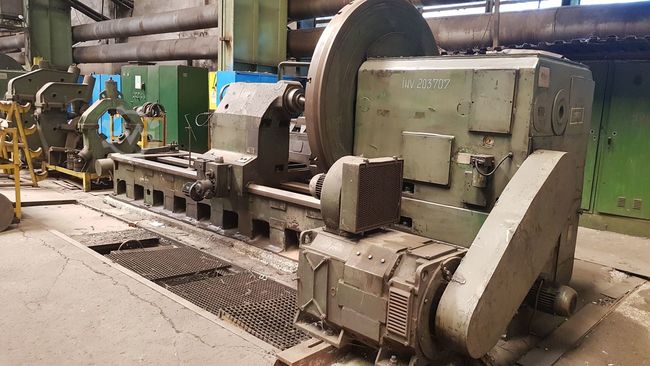

Heavy duty lathe SN1800X3000
Manufacturer: 1MAI PLOIESTI (Romania)
N0p29
Year of manufacture: 1986

Main technical data :
• 3 guideways
• width of the bed 1150mm
• face plate diameter: 1800mm
• max. swing over bed: 1800mm
• faceplate max. clamping dia. 1660mm
• max. weight of workpice clamped only on the faceplate: 5000kg
• max. swing over slide: 1450mm
• height of centers: 900mm
• distance between centers: 3000mm
• max. weight of the workpiece: 16to
• speed range of the main spindle: 1.5 – 300rpm
• main drive DC motor: 75KW
• quill travel 300mm
• longitudinal feed: 0.4 – 480 mm/min
• transversal feed: 0.2 – 240 mm/min
• intermediate slide feed: 0.15 – 180 mm/min
• intermediate slide travel: 500mm
• cross slide travel: 520mm
• tool holder travel: 175mm
• Machine weight: ab. 22400kg

Standard accessories :
– one steady rest

For more information please contact us.

Machine Data

Machine IDWM233909
1MAI PLOIESTI Heavy duty lathe SN1800X3000
Machine typeHeavy duty lathe
Manufacturer1MAI PLOIESTI
ModelHeavy duty lathe SN1800X3000
Year of manufacture1986
Conditiongood (used)

Price and Location

LocationBucurești , Romania

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
