5 Axes Vertical Machining Centre

Posted By :
Comments : 0

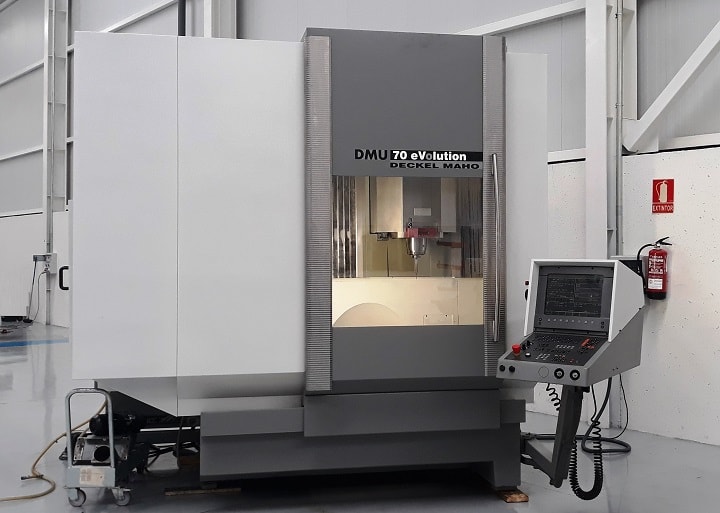

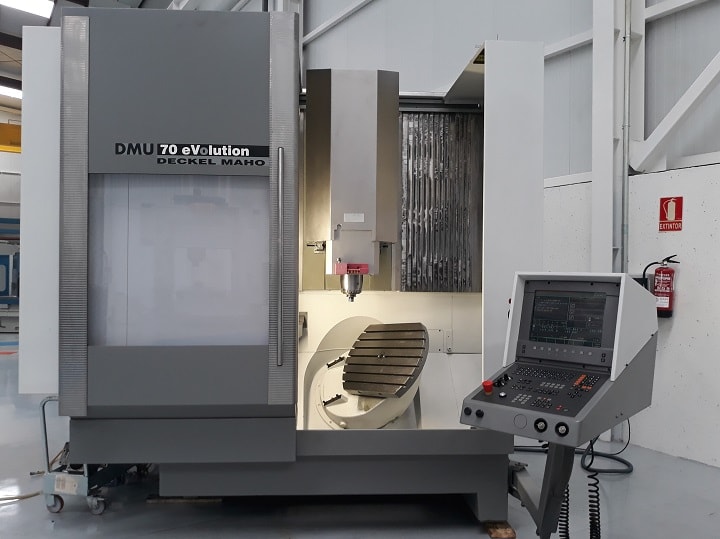

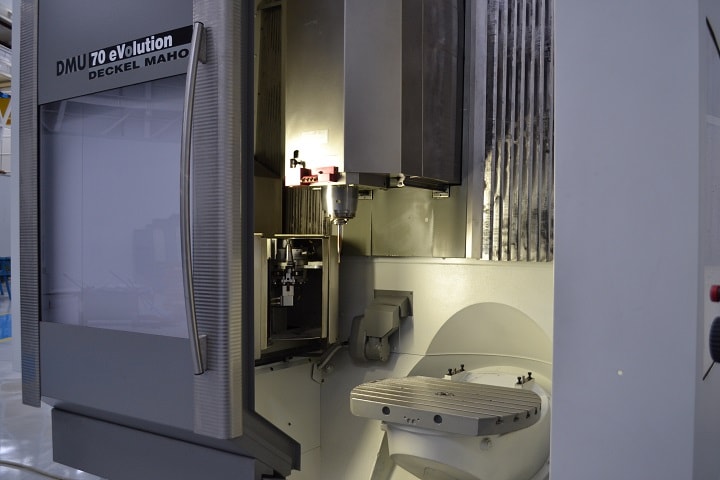

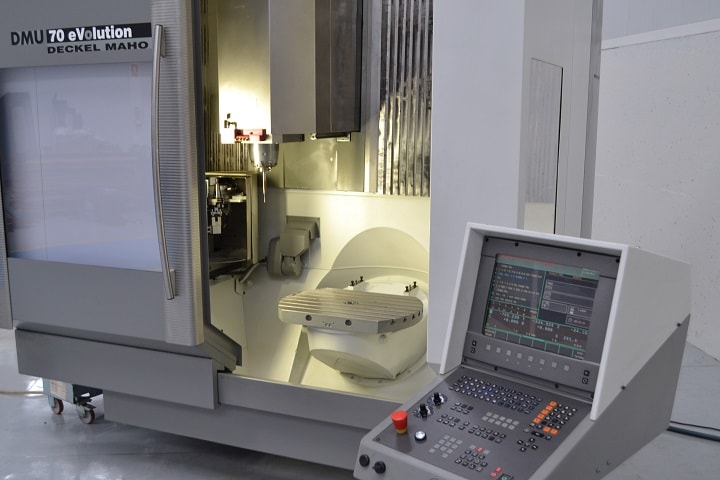

5 Axes Vertical Machining Centre

  • Manufacturer: DECKEL MAHO
  • Model: DMU 70 eVolution    (S/n: 15035703424)
  • Year of manufacture: 2001
  • Year of inspection: 2019
  • Control unit: HEIDENHAIN TNC-426

Traverse of axes:

  • X axis traverse: 800 mm
  • Y axis traverse: 600 mm
  • Z axis traverse: 520 mm

Main drive:

  • Speed range: 20 – 18000 r.p.m.
  • Spindle power (40/100 % ED): 22,5/15 kW
  • Spindle torque (40/100 % ED): 130/87 Nm

Feedrates:

  • Feedrate (X/Y/Z): 0 – 20000 mm/min
  • Rapid feedrate (X/Y/Z): 50 m/min

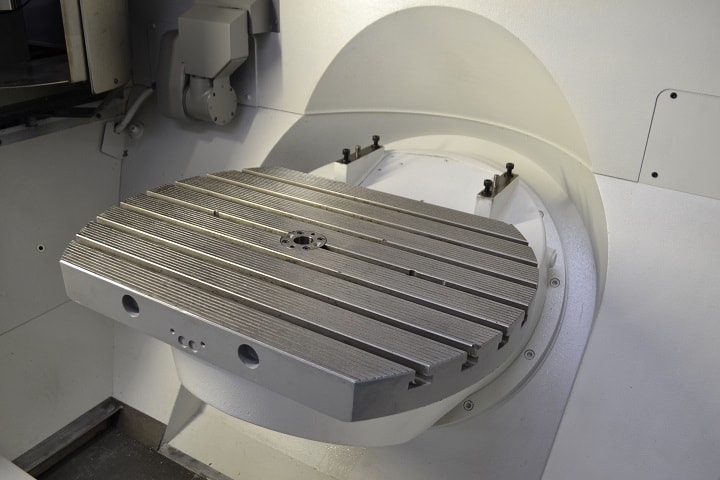

Working table (B+C axes):

  • Table dimensions : Ø 700 x 500 mm
  • Maximum weight on table: 350 Kg
  • T slots (Number / Size / Tolerance): 7 / 14 mm / H7
  • C axis traverse: 360º (resol. 0.001º)
  • B axis traverse: 180º (resol. 0.001º)

Machine:

  • Machine dimensions (LxWxH) : 2574 x 5320 x 2829 mm
  • Machine weight: 8320 Kg

Cone:

  • Taper nose: SK 40 (DIN 69871)

Power supply:

  • Phases | Frequency | Voltage | Power:  3N | PE~50-60Hz | 400/230V | 50 kW

Accesories:

  • External cooling
  • Automatic tool changer: ATC-32
  • Tool max. weight / Tool max. diameter: 6 Kg / 315 mm
  • Electronic handwheel: NEW! HR-510
  • Equipped with Renishaw probe: RP2

Machine Data

Machine IDWM225903
DECKEL MAHO DMU 70 eVolution
ManufacturerDECKEL MAHO
ModelDMU 70 eVolution
Year of manufacture2001
ConditionUsed Machine
Hours of Operation1
Serial number15035703424

Price and Location

PriceON REQUEST
CurrencyEUR
LocationBurgos - Spain

Seller

Esther Bascones
Company NameNicolás Correa Service
Authorized PersonEsther Bascones
Websitewww.ncservice.com
Phone+34947473619
