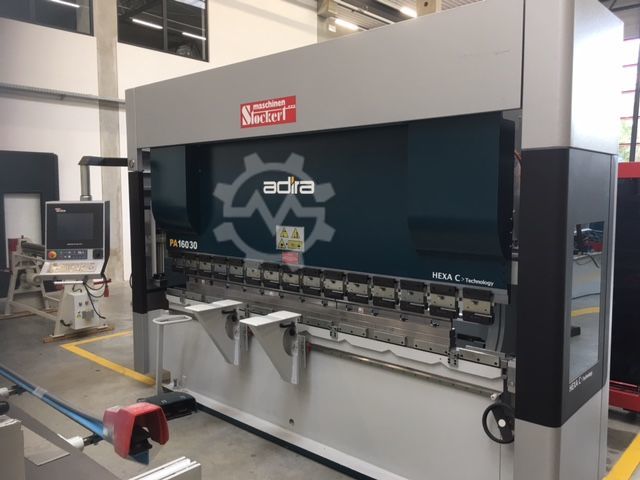

Adira PA 16030 Press brake

Posted By :
Comments : 0

pressure: 160 t, bending length: 3050 mm
Scope of delivery:
* without tools
* Oil filling
* LazerSafe security system/CE
* Foot pedal

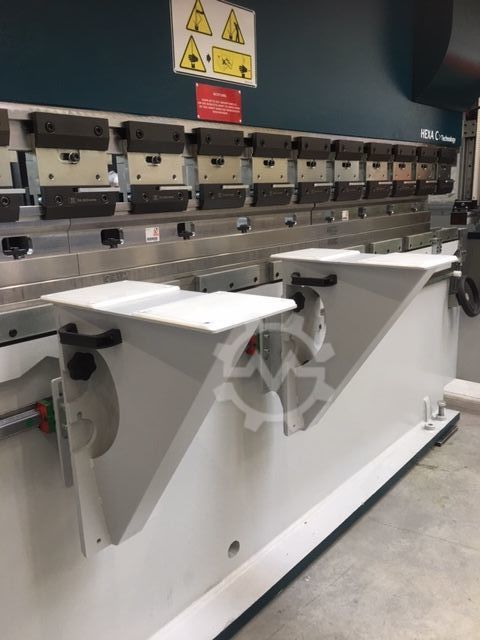

* Two front support arms 500 mm, movable
Table crowning: WILA motorized
Fq0djcbj
Special features:

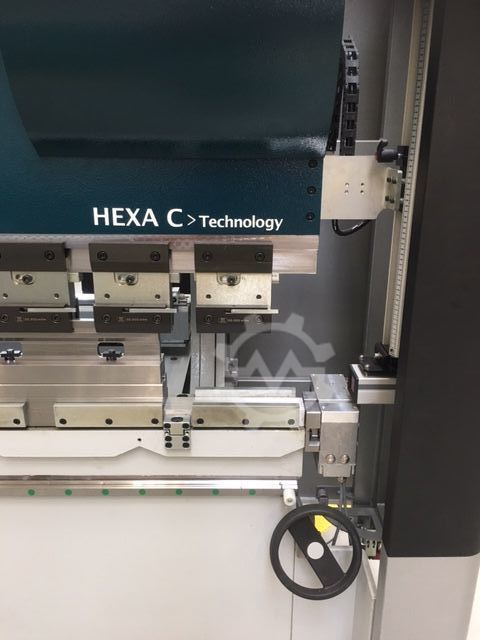

* Patented HEXA-C frame: torsion-resistant and
therefore very accurate
* Hydraulics in semi-hybrid equipment very energy-saving
because the engine runs only at 5Hz when idling
* The parallelism in up and down is controlled by two
high precision servo valves
* Two linear encoders ensure precise positioning
of the press beam
* Adjustable guide of the press beam made of
self-lubricating material
* Electrical and hydraulic system with overvoltage protection
* X & R axis run on backlash-free ball screws
driven via servo motors
* 2 manual stop fingers Z axis
* Machine rear side with light barrier fused

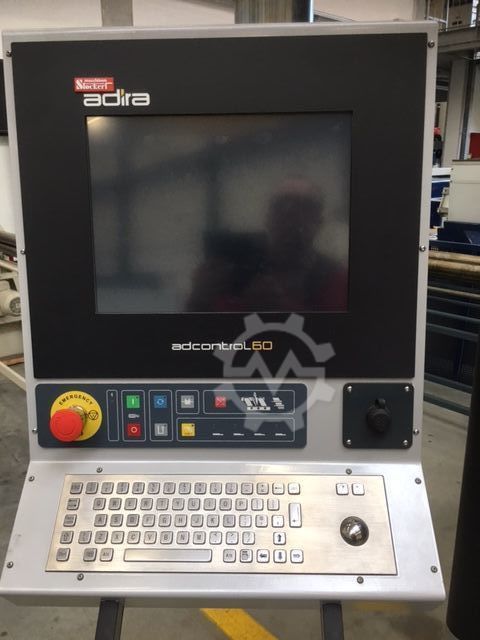

* AD 60 CNC control type Adcontrol 2 D
Colour: grey/blue
Machine weight: 7700 kg
Total power requirement: 15 kW
Projection: 400 mm
stand width: 2550 mm
backgauge: 625 mm
table width: 60 mm
forward speed: 150 mm/sec
working speed: 10 mm/sec
retraction speed: 150 mm/sec
R axis: 200 mm
The advertisement was translated automatically and some translation errors may have occurred.

Machine Data

Machine IDWM231074
Adira PA 16030
Machine typePress brake
ManufacturerAdira
ModelPA 16030
Year of manufacture2018
Conditionas good as new (ex-display)
Serial numberM00000836
