Bed type Milling Machine CORREA CF20/20

Posted By :
Comments : 0

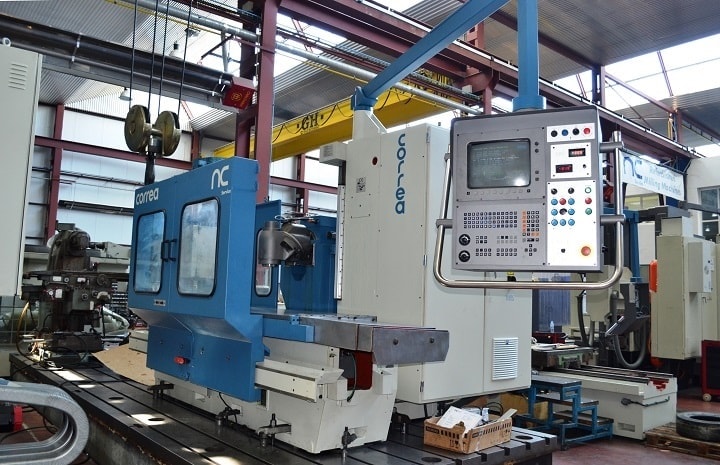

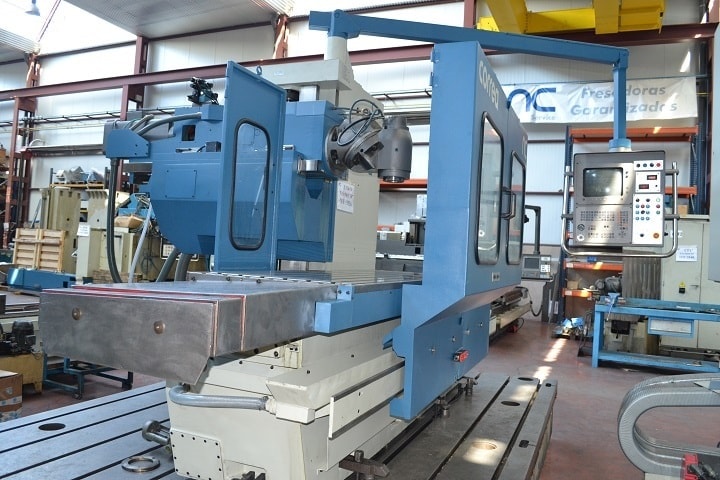

Bed milling machine CORREA CF20/20

Year of manufacture: 1996

Year of refurbishment: 2019

CNC HEIDENHAIN TNC-415

Table dimensions: 2000 x 700 mm

Number of T slots: 6

T slots dimensions: 18 mm

X axis traverse: 2000 mm

Y axis traverse: 800 mm

Z axis traverse: 800 mm

Milling head

Head type: Universal Manual (U22)

Tool clamping system: Hydraulic

Taper nose: ISO 50 (DIN 2080)

Speed range: 20 – 2500 rpm

Spindle power: 15 kW

Feedrate: 5 – 5000 mm/min

Rapid feedrate: 12000 mm/min

Max Weight on table: 3500 kg

Machine weight: 10000 kg

Machine dimensions: 5200 x 3127 x 2450 mm

Electronic Handwheel: HR-410

Guarding

Guaranteed

Machine Data

Machine IDWM225200
CORREA CF20/20 (9691710)
ManufacturerCORREA
ModelCF20/20 (9691710)
Year of manufacture1996
ConditionUsed Machine
Hours of Operation1
Serial number9691710

Price and Location

PriceON REQUEST
CurrencyEUR
LocationBurgos - España

Seller

Esther Bascones
Company NameNicolás Correa Service
Authorized PersonEsther Bascones
Websitewww.ncservice.com
Phone+34947473619
