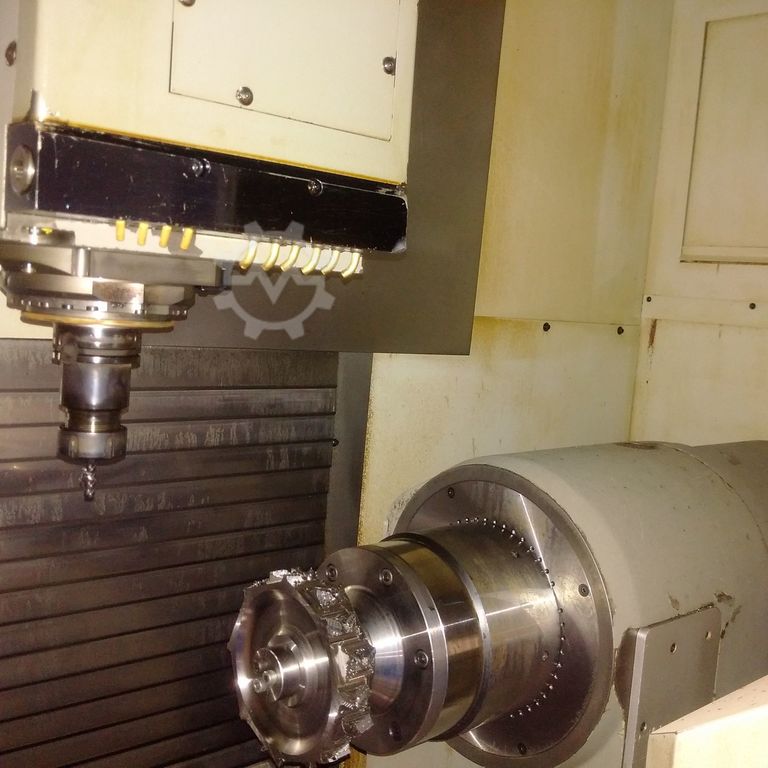

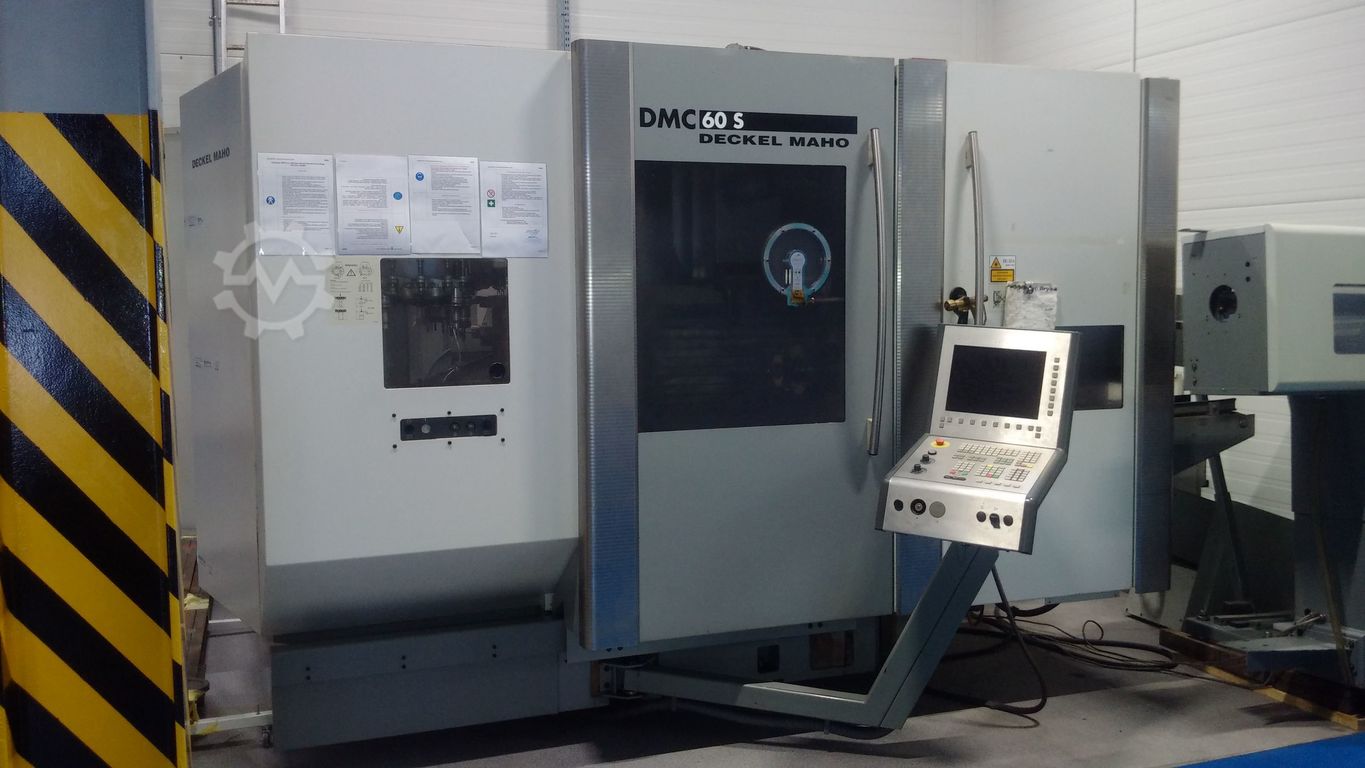

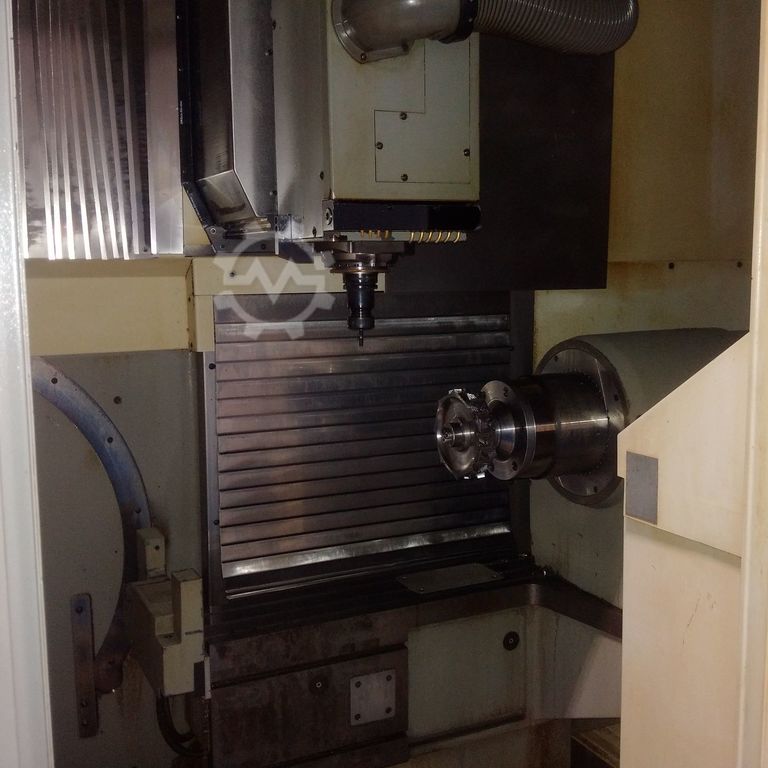

Deckel Maho DMC 60S Milling machine center

Posted By :
Comments : 0

Number of hours worked – about 32,000 hours

Machine kinematics – 5-axis machine – continuous machining

Technical parameters Machining range:
The range of the x-axis: 760 mm The y-axis range: 460 mm The axis range from: 560 mm
Machine control: Siemens 840 D Powerline with measuring, milling and drilling cycles
Tilting head range + 30 / -120 (150) ”
Rotation of the C axis (divider) – graduation 0.001 °
The spindle revolutions “12,000 rpm
Spindle power for 40% ED = 28 kW
Spindle power for 100% ED = 19 kW
HSK spindle-holder 63
Feed movements 50 m / min

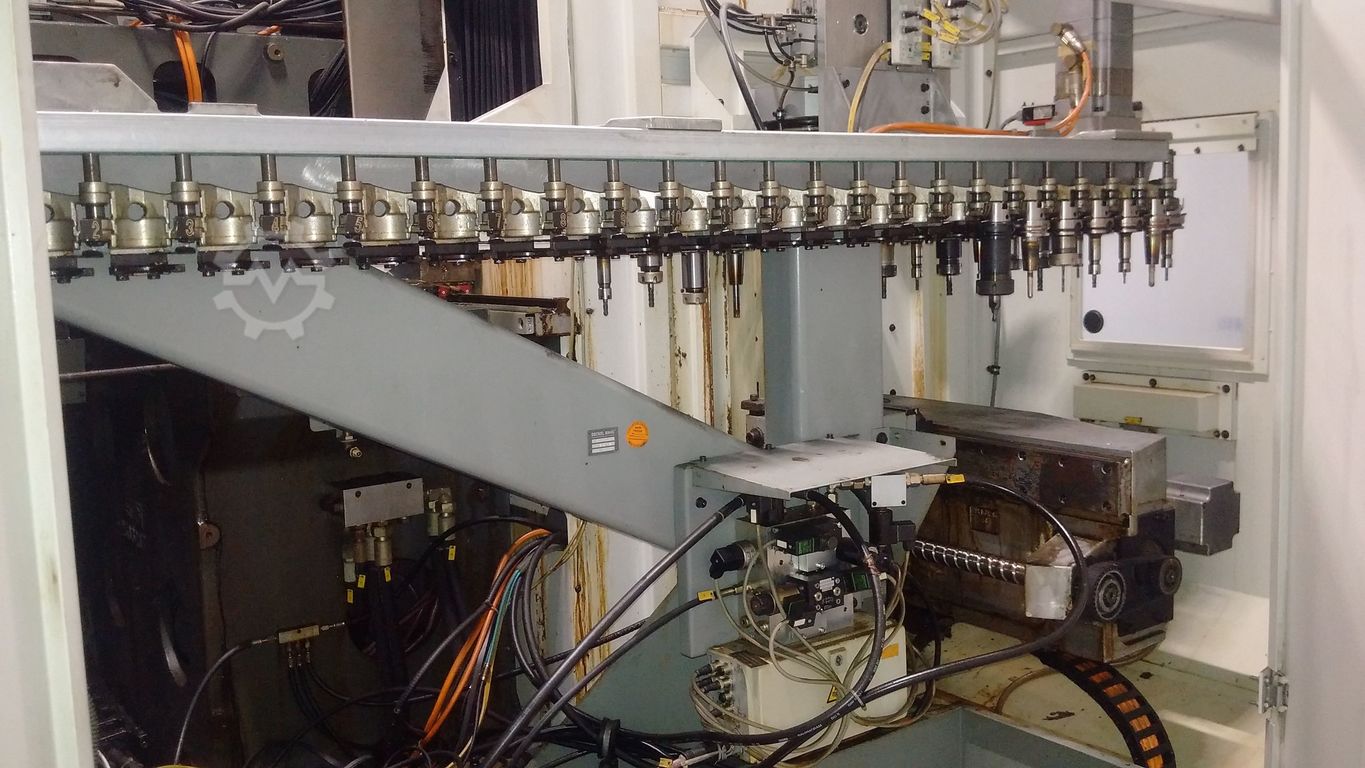

Tool magazine 60 items
Machine weight 9.01T
Dimensions of the machine: width 3.8 m, length 5.2 m, height 2.4 m
Additional accessories:

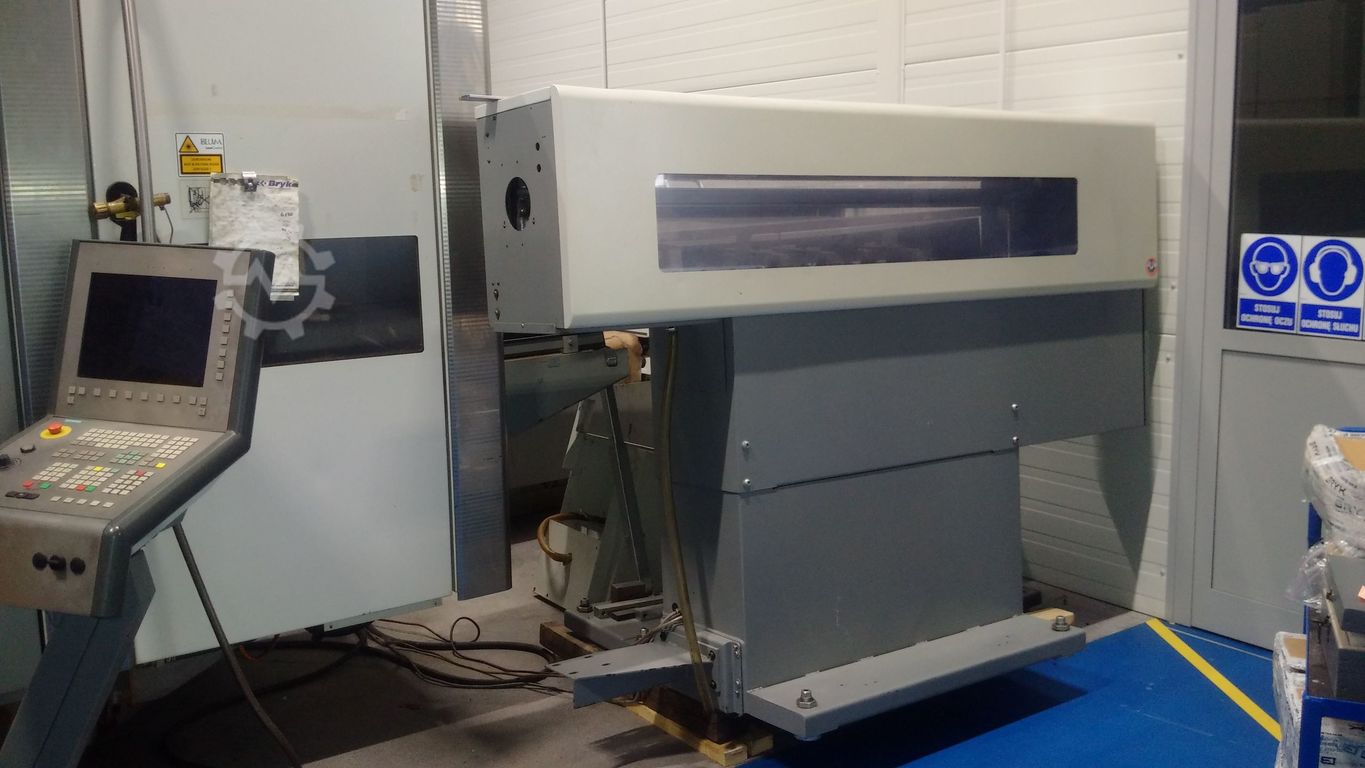

Barfeeder for products with a rod length HOOx01O3 (mm) from KUPA
The electro-spindle equipped with a separate cooling system
CNC controlled tailstock
BLUM LASER Tool Probe. Measuring probe MP 10 Renishaw
Coolant tank 6001 Coolant paper filter
Emulsion cooling through the spindle – pressure 40 bar
Automatic cooling of electrical cabinets
Calibration shaft for laser gate
Automatic product receiver integrated with CNC Rotoclear – sight glass
Hydraulic distributor – clamp with interchangeable sleeves
Nnzo9
Gun for exchanging the sleeve
A set of guide sleeves for the barfeeder
Sleeve set – for rectangular blanks: 50×25; 60×40; 70×30 (mm) for round preparations: 045; 060; 2×065; 070 (mm)
Chip extraction

Machine Data

Machine IDWM229822
Deckel Maho DMC 60S
Machine typeMilling machine center
ManufacturerDeckel Maho
ModelDMC 60S
Year of manufacture2003
Conditionexcellent (used)

Price and Location

Price49.3900
Currency
LocationJasionka , Poland
