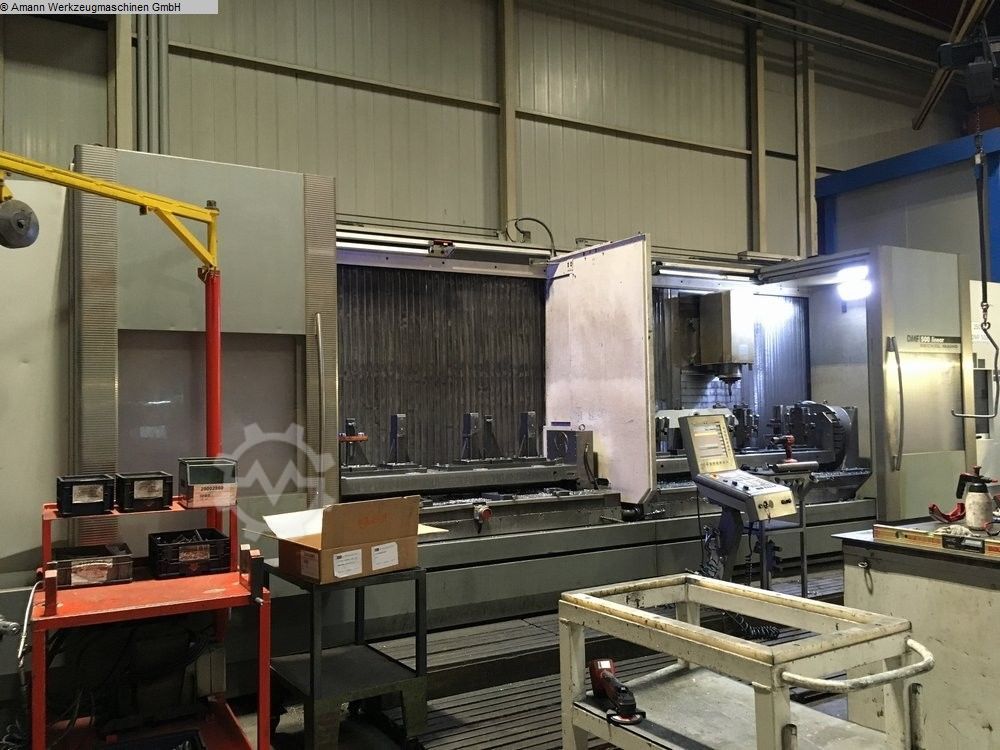

DECKEL MAHO DMF 500 linear Machining Center Vertical

Posted By :
Comments : 0

x-travel 5.000 mm
y-travel 920 mm
z-travel 820 mm
control SIN 840
Lidgd3jj
table surface area 5.600 x 900 mm
table load 6.000 t
number of T-slots 9
T-slot – distance 100 mm
tool taper SK50
spindle turning speed – stepless 20 – 10.000 U/min
power capacity at 100 % load 32,00 kW
power capacity at 40 % load 48,00 kW
feed X/Y/Z-axis 1 – 20.000 mm/min
rapid traverse X-axis 100,00 m/min
rapid traverse Y-axis 60,00 m/min
rapid traverse Z-axis 60,00 m/min
tool magazin: 80
tool diameter 115 / 160 mm
tool length – max. 240 / 360 mm
total power requirement 75,00 kW
weight of the machine ca. 42,00 t
dimensions of the machine ca. 10,50 x 4,50 x H3,30 m

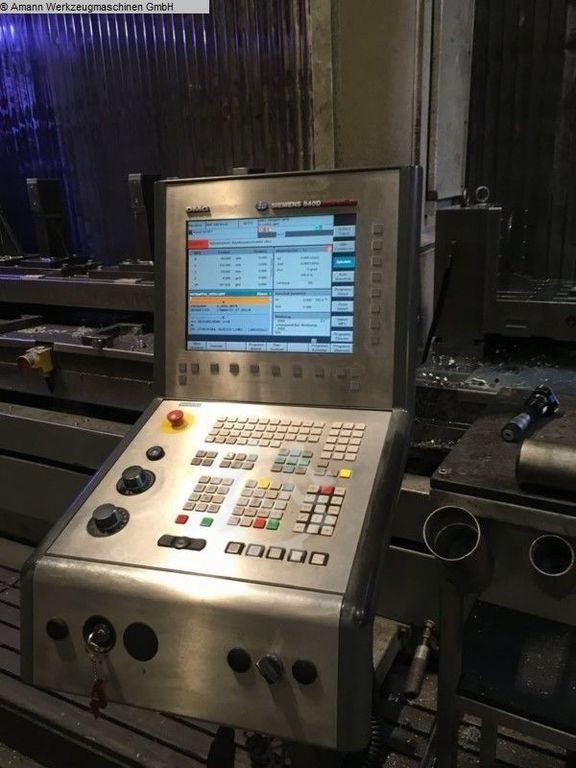

Machining center with control SIEMENS SIN840D powerline,
Chip conveyor, coolant unit, coolant (40bar) / blowing air through the spindle,

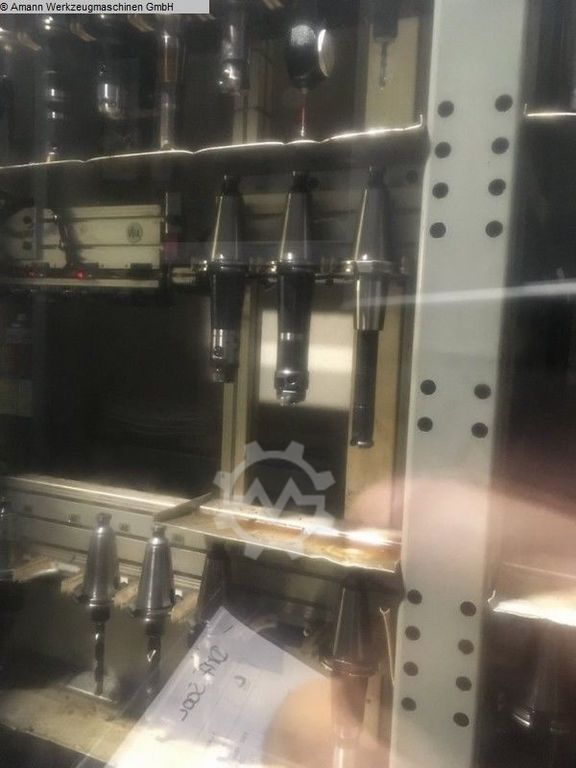

wall magazine with 80 tools SK50, swivel head 1 ° indexable,

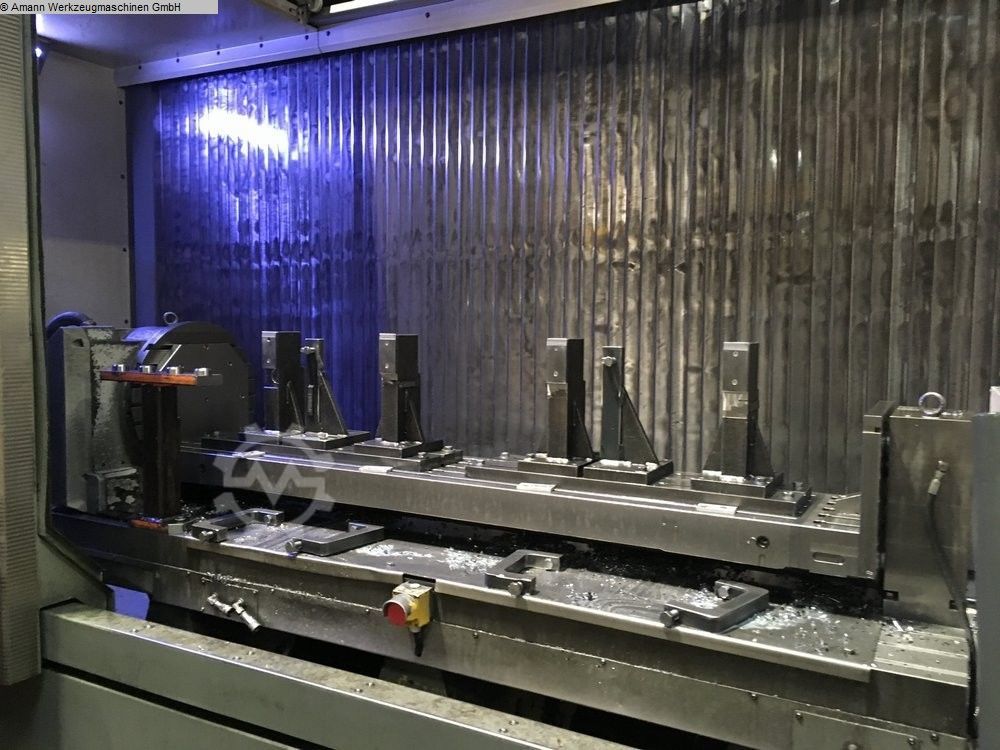

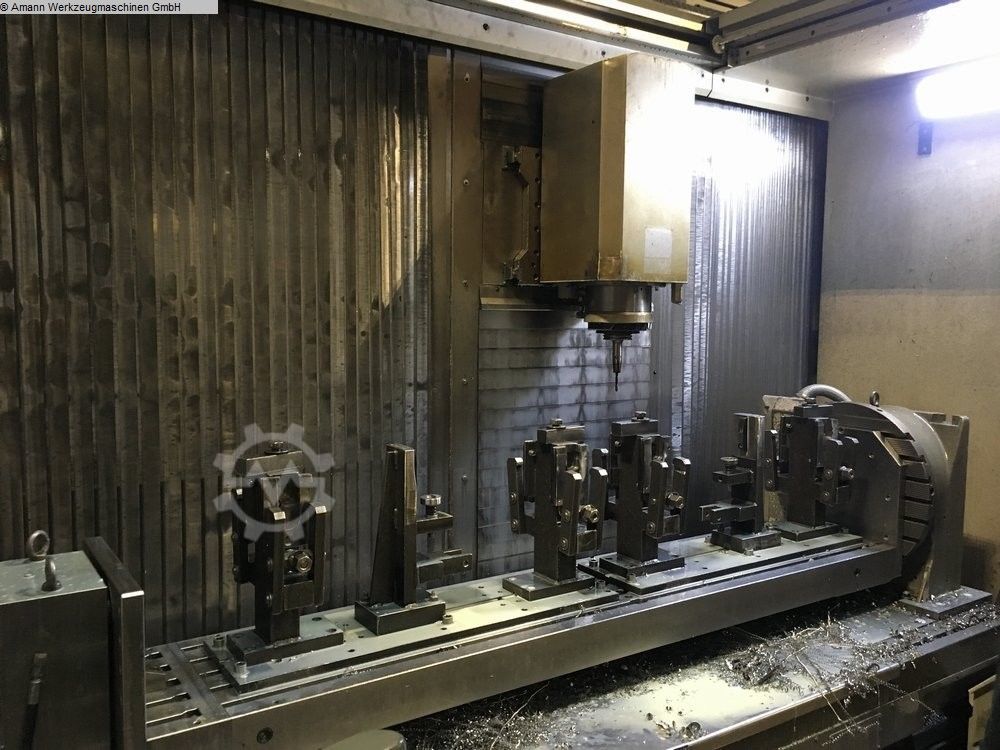

NC-table hor., Working area divisible (2x 2.150mm)

Machine Data

Machine IDWM232222
DECKEL MAHO DMF 500 linear
Machine typeMachining Center - Vertical
ManufacturerDECKEL MAHO
ModelDMF 500 linear
Year of manufacture2004
Conditionused

Price and Location

LocationLager

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
