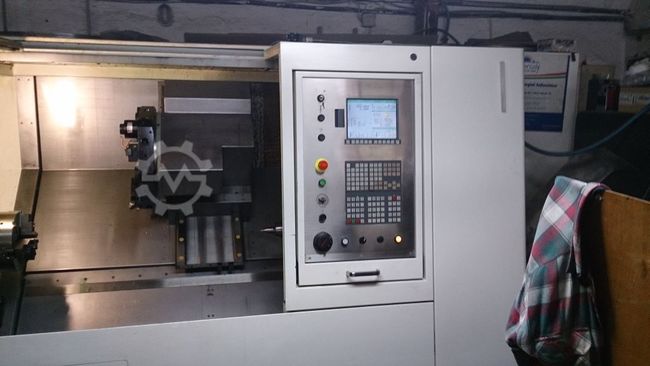

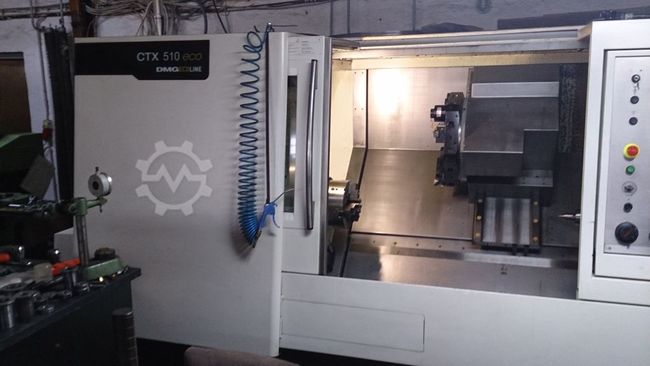

Deckel Maho Gildemeister CTX510 ECO Cnc lathe with live tooling
Control FANUC 0i-TC Manual Guide
Swing dia 680 mm
Turning dia 465 mm
Turning length 1050 mm
Turret VDI 40/12
Spindle speed 3250 rpm
Spindle power 33 kW
Weight ca 8100 kgs
Machine size LxWxH ca 3000 x 1500 x 1800 mm
Accessories, features
– C axis programmable
– Live tool turret
– Normal and live tool holders
– 3 jaws hydraulic chuck
– Tailstock

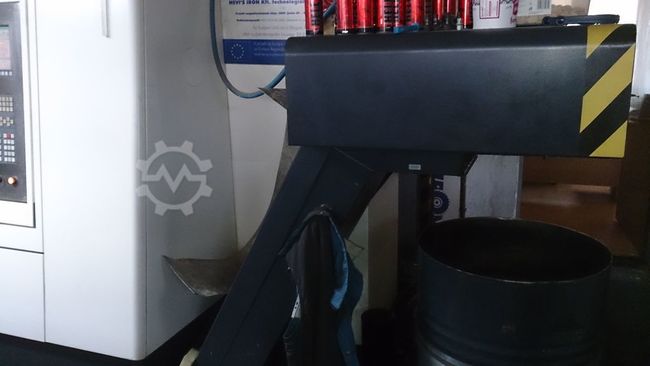

– Chip conveyor
– Coolant unit
Bjcy8by7rl
– Hardly used (only 2840 working hours)
Under power in Hungary.
Machine Data | |||||||||||||||
Machine ID | WM234443 | ||||||||||||||
Machine type | Cnc lathe with live tooling | ||||||||||||||
Manufacturer | Deckel Maho Gildemeister | ||||||||||||||
Model | CTX510 ECO | ||||||||||||||
Year of manufacture | 2009 | ||||||||||||||
Condition | excellent (used) | Price and Location | |||||||||||||
Location | Szekesfehervar , Hungary | ||||||||||||||
