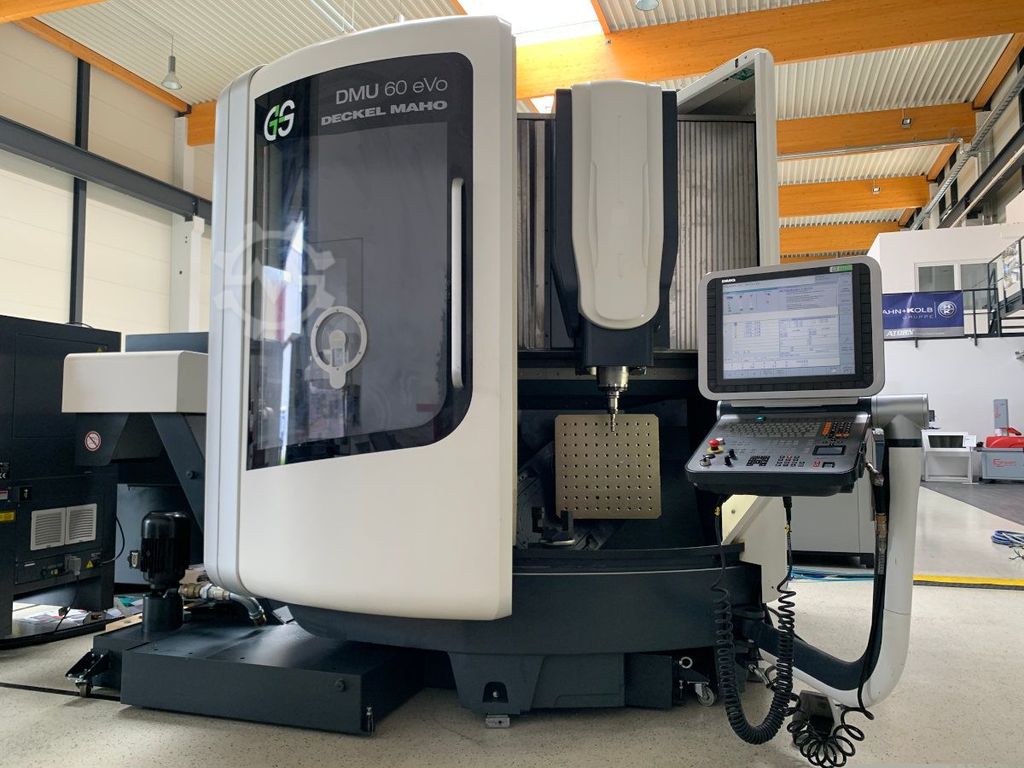

DMG DMU 60 eVo 5 Axis milling machine
Machine type: 5-Axis milling machine
Manufacturer: DMG
Model: DMU 60 eVo linear
Year of construction: 2011

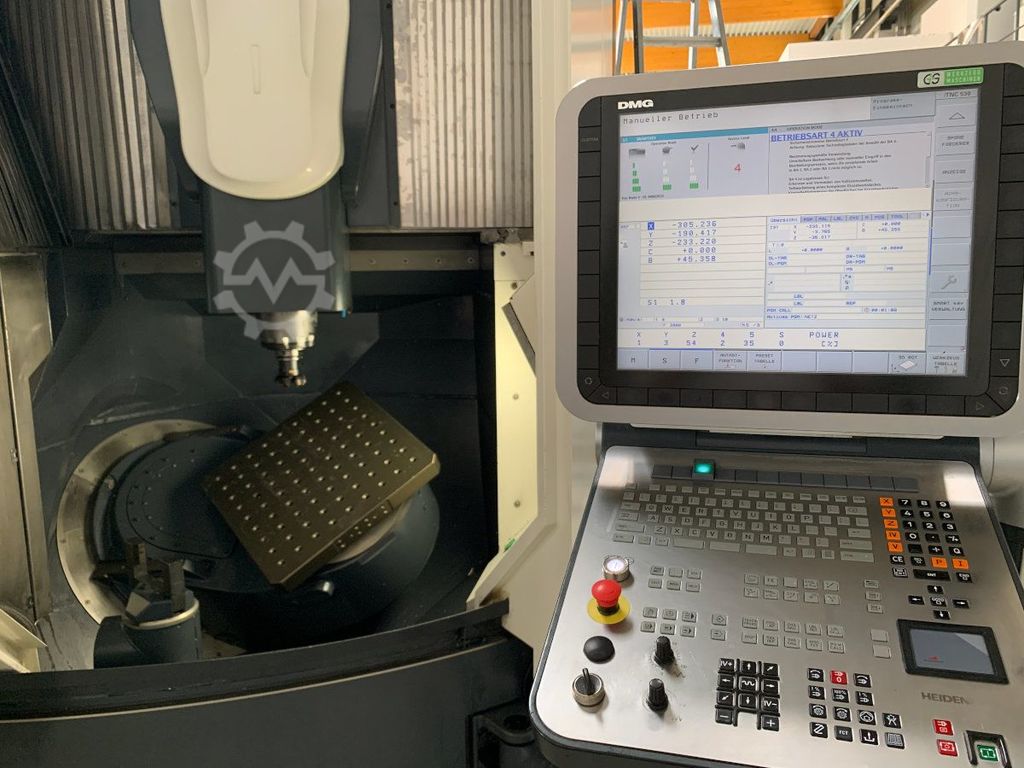

Control System: Heidenhain iTNC 530
Movement X/Y/Z [mm]: 600/500/500
Spindle speed: 18.000 rpm
Spindle:
Technology: Direct drive
Speed: 18.000 rpm
Power max.: ca. 35 kW
Torque max.: ca. 130 Nm
Taper: HSK-A63

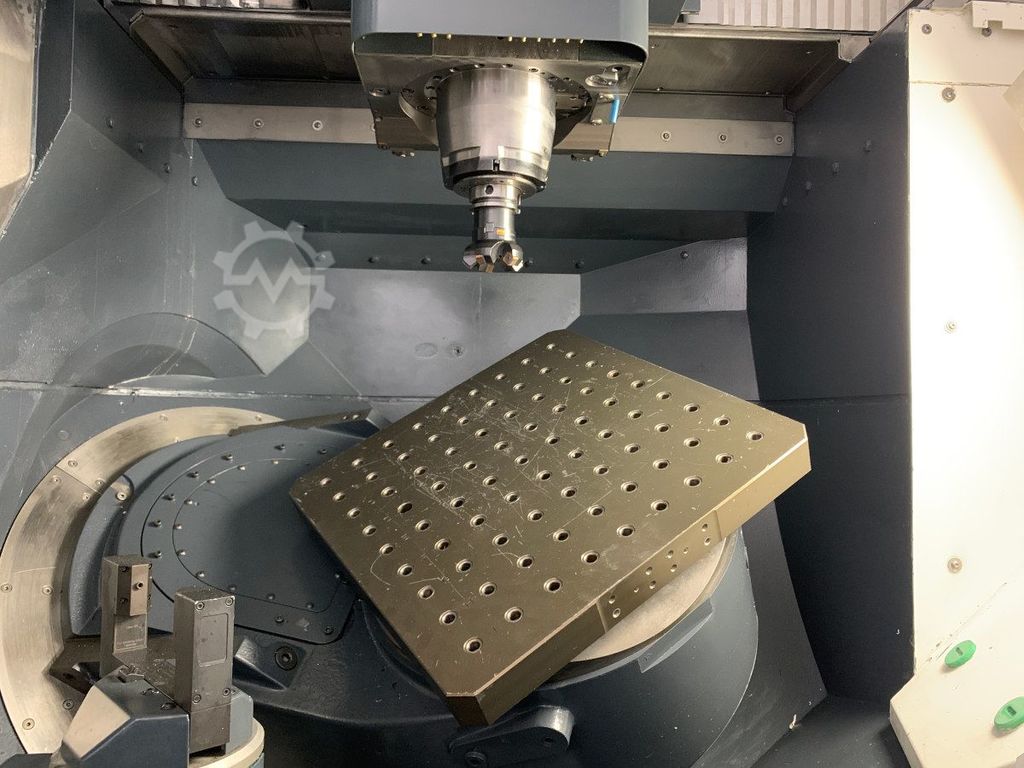

Swivel table:
B-Axis: -5°/+110°
Torque: max. 1.000 Nm
N0ckh
Speed: 110 U/min
C-Axis: 360°
Torque: max.500 Nm
Speed: 110 U/min
Clamping surface: 630 x 500 mm
Load capacity: max. 400 kg
In General:
Tool magazin: 30 stations
Feed rate: 80 m/min
Rapid travers: 80 m/min
Equipment / Add-ons:
Postioning sensor: Direct scales
Axis drive: Direct in in X/Y-Axis
Chip managment: Chip conveyor
Coolant management: Coolant through spindle, 40 bar

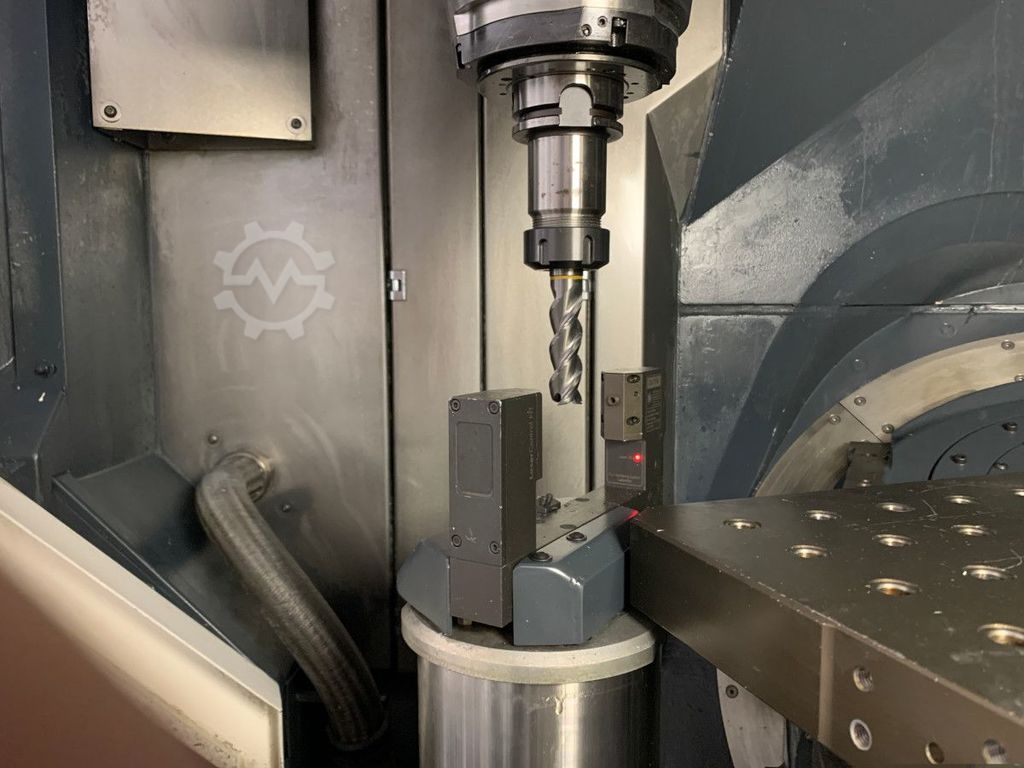

Tool measurment: BLUM Laser

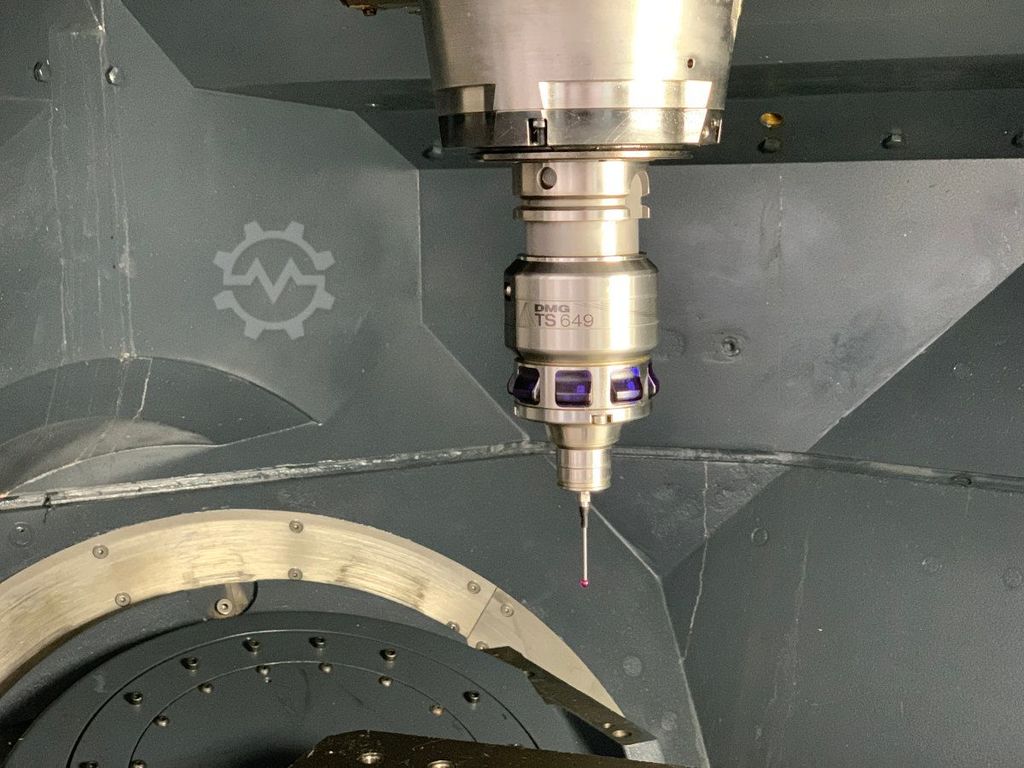

Workpiece measurment: Touch probe
Clamping device table: EROWA
Additional Equipment: Handwheel, Rotoclear
Machine Data | |||||||||||||||
Machine ID | WM233378 | ||||||||||||||
Machine type | 5-Axis milling machine | ||||||||||||||
Manufacturer | DMG | ||||||||||||||
Model | DMU 60 eVo | ||||||||||||||
Year of manufacture | 2011 | ||||||||||||||
Condition | excellent (used) | Price and Location | |||||||||||||
Location | OIching , Germany | ||||||||||||||
