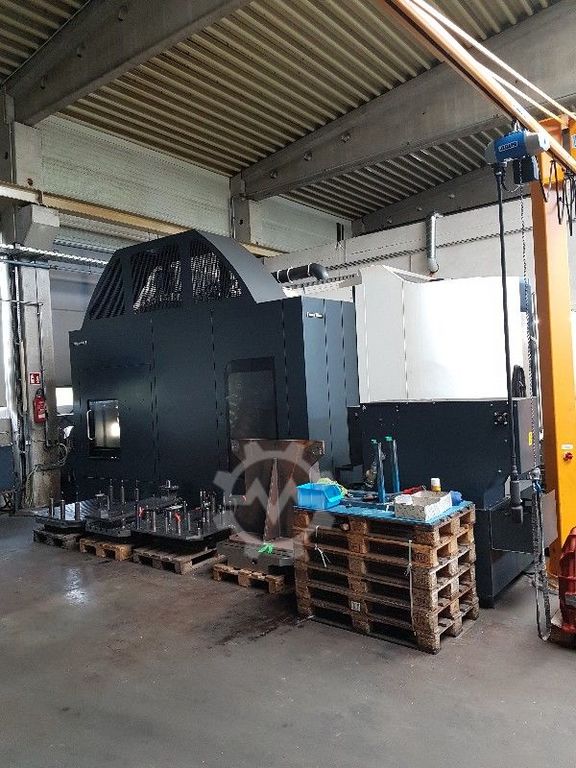

X axis 1250 mm
Y axis 1250 mm
Z axis 1000 mm
Acceleration X-Y-Z 6/4/6 m/s
feeding force 15/20/28 kN

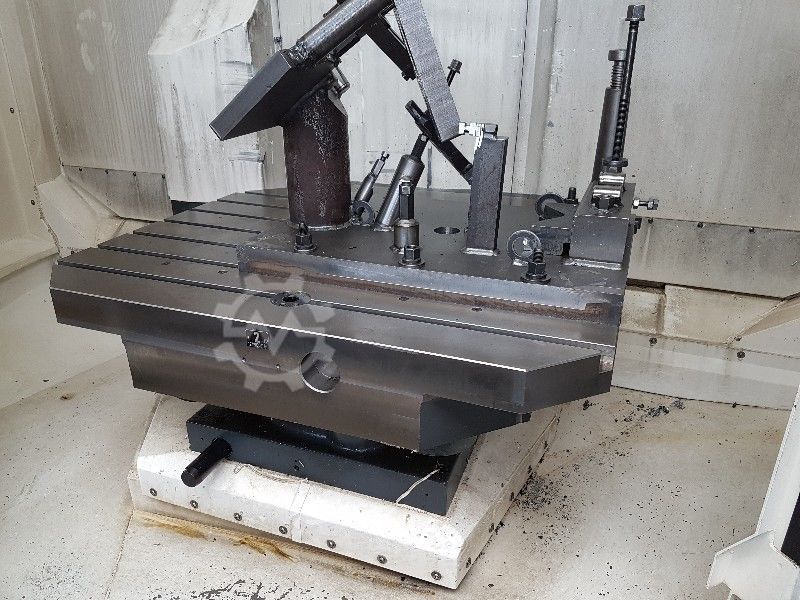

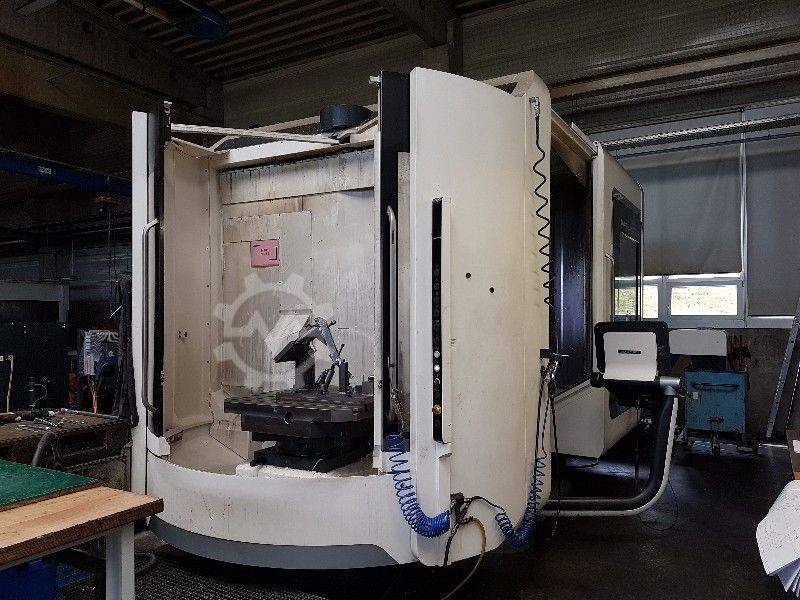

NC-rotary table:
pallet clamping surface 1000 x 800 mm
max. load 2000 kg
workpiece height max. 1600 mm
table rotating 360 / 0,001 °
c-axis rapid travel 35 rpm
NC-Milling head:
swivel range -30 bis 180 °
rapid travel 30 rpm
spindle taper 100 HSK
spindle speed range 12.000 rpm
spindle drive 35/25 KW
torque 130/86 Nm
max. tool length 550 mm
tool diameter 200 mm
tool weight 30 Kg
rapid travel 60 m/min.
total power requirement kW
machine weight 40 to

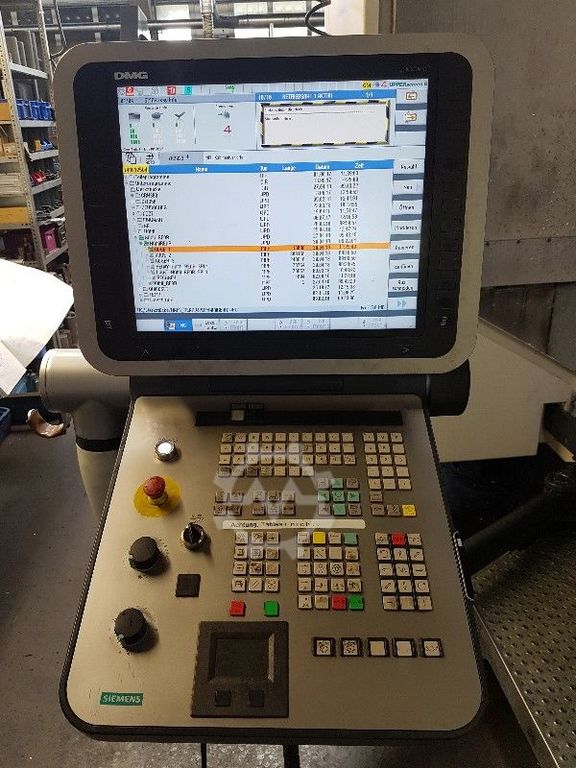

CNC SIEMENS 840 D-SL
NC – swiveling head including b-axis ( 0,001° )
123-ATC
NC – rotary table 360 / 0,001°
2 – APC
Pallets with T-slots
HEIDENHAIN TS 649 measuring probe
3D Quickset cycle
Cooling through spindle 80 bar
Cooling tank 980 L
Air blow system through spindle
Flushing pistol
VISIPORT
Bb7n8lycxz
Chip-conveyor
