X – axis 750 mm
Y – axis 600 mm
Z – axis 520 mm

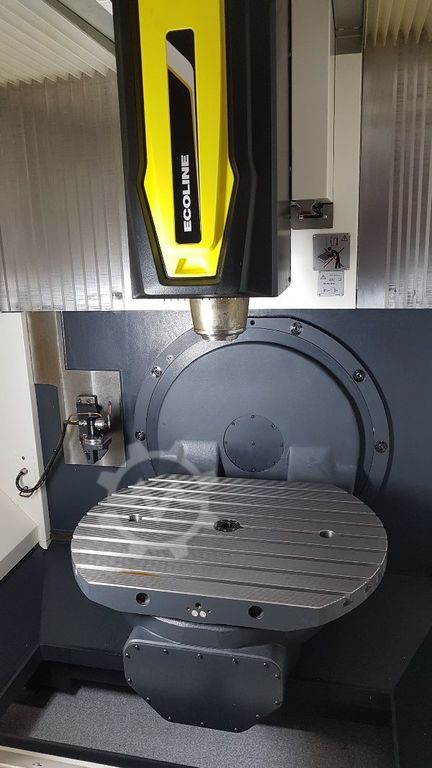

NC-swivel-rotary table 800 x 630 mm
max. load on table 350 KG
B – axis + 95 / -10 °
resolution of B-axis 0,001 °
C-axis 360 / 0,001 °
spindle taper 40 SK
spindle speed range 12.000 rpm
spindle drive 13 / 9 KW
torque 83 / 57 Nm
max. tool length 300 mm
tool diameter 80 / 130 mm
tool weight 6 Kg
chip-to-chip time 5 sec
feed range 0 – 24.000 mm/min
feeding force 6 kN
rapid travel 24 m/min.
resolution of axis 1 µ
total power required 28 KVA
3flex0a
machine weight 7,8 to
floor space required 3,3 x 4,4 x 3,0 m

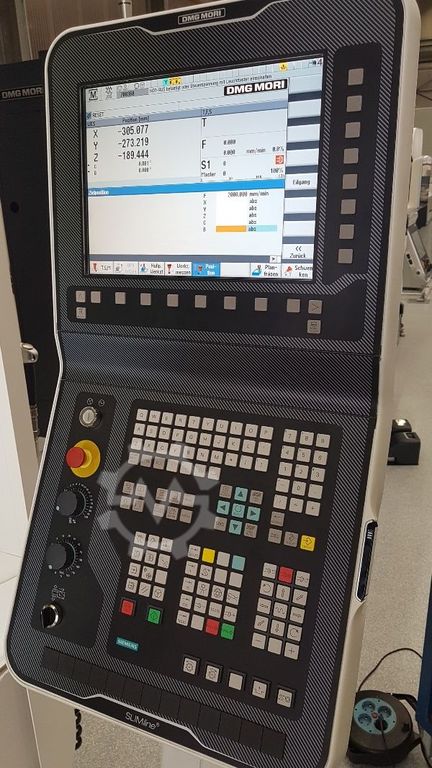

CNC SIEMENS 840 D-SL
Software-Update in 2018
Electronic hand-held control
32 – ATC
NC swivel-rotary table
DMG MORI PP 40 measuring probe
HEIDENHAIN TS 27 tool probe
Signal lamp
cooling through spindle 12 bar

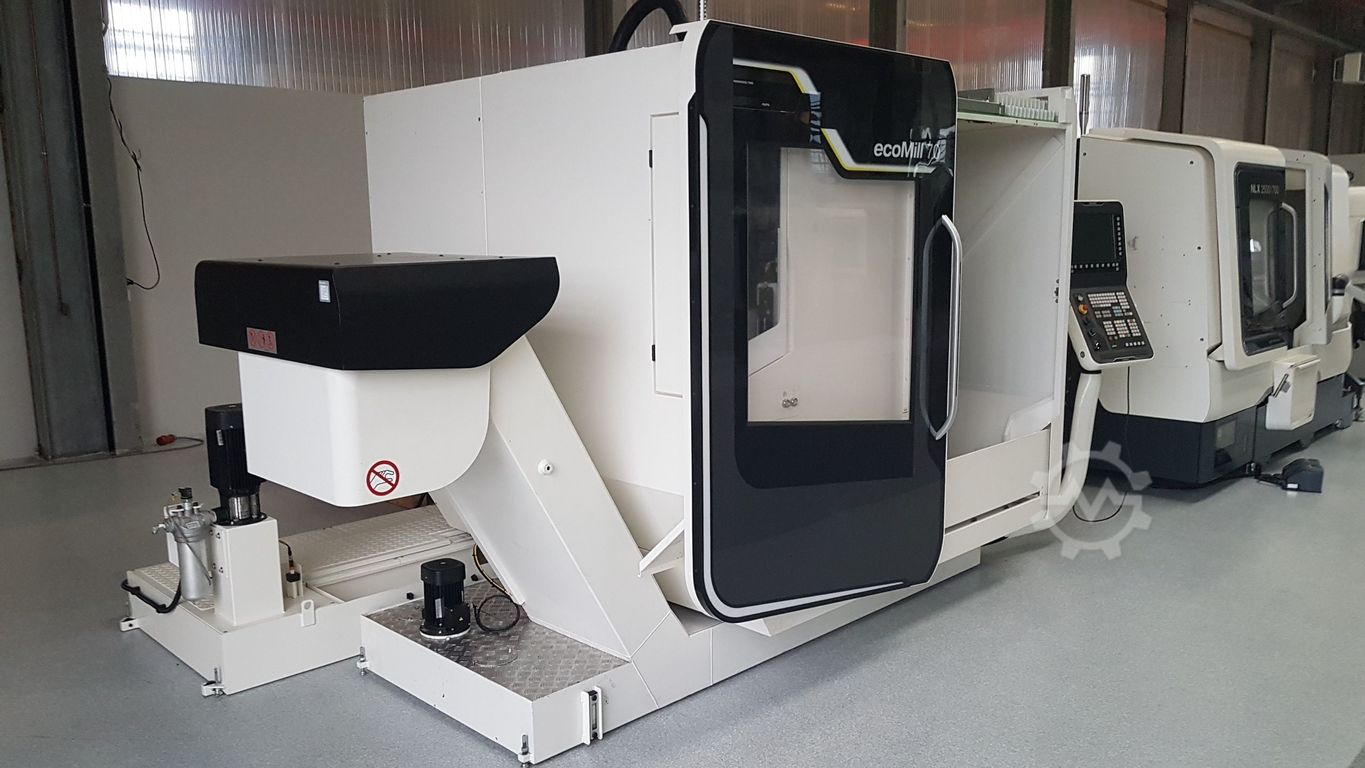

Chipconveyor
In production since 2018, only 312 hrs. spindle time!
