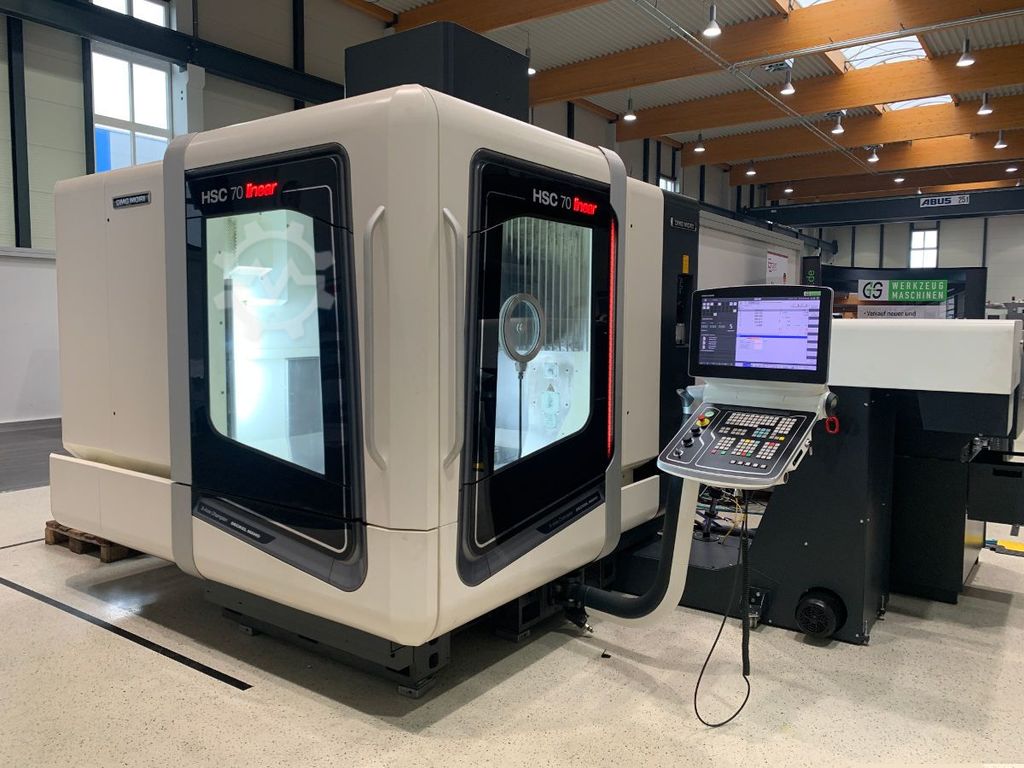

DMG MORI HSC 70 linear 5 Axis milling machine

Posted By :
Comments : 0

Machine type: 5-Axis milling machine
Manufacturer: DMG MORI
Model: HSC 70 linear
Year of construction: 2017

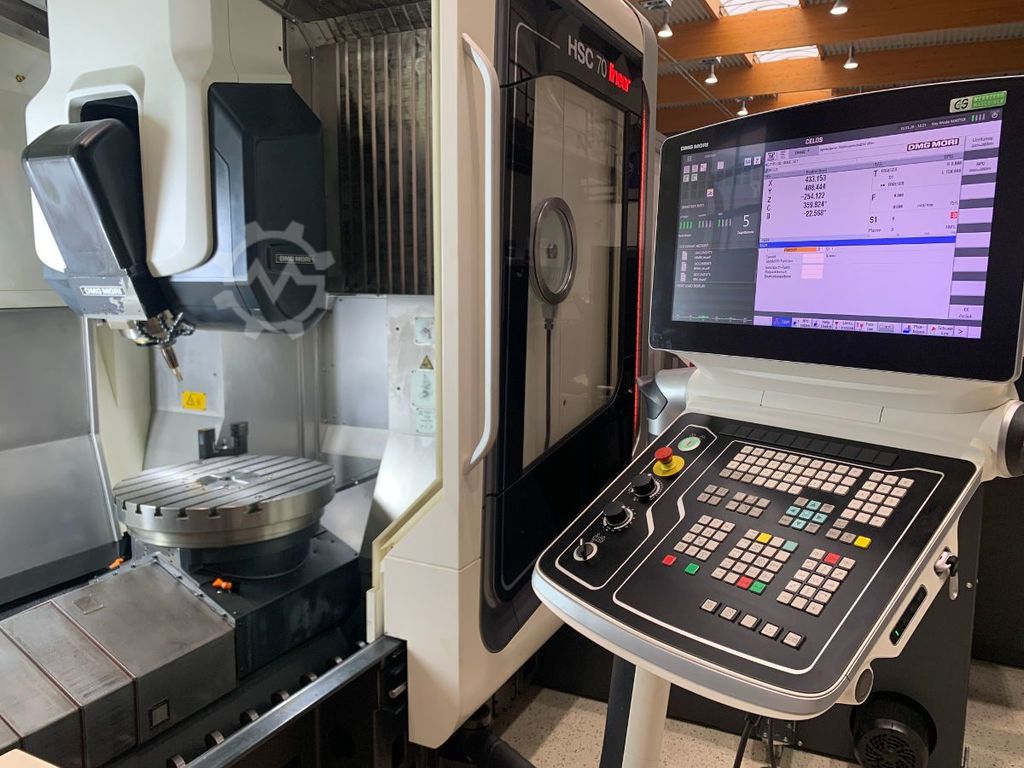

Control System: Siemens 840 Dsl – Operate Celos
Movement X/Y/Z [mm]: 850/600/450
Spindle speed: 28.000 rpm

Spindle:
Technology: Direct drive
Speed: 28.000 rpm
Power: ca. 30 kW
Torque: ca. 40 Nm
Taper: HSK-A 63
Media feed thorugh: Blast air + Coolant
Spindle cooling: Acitve water cooling

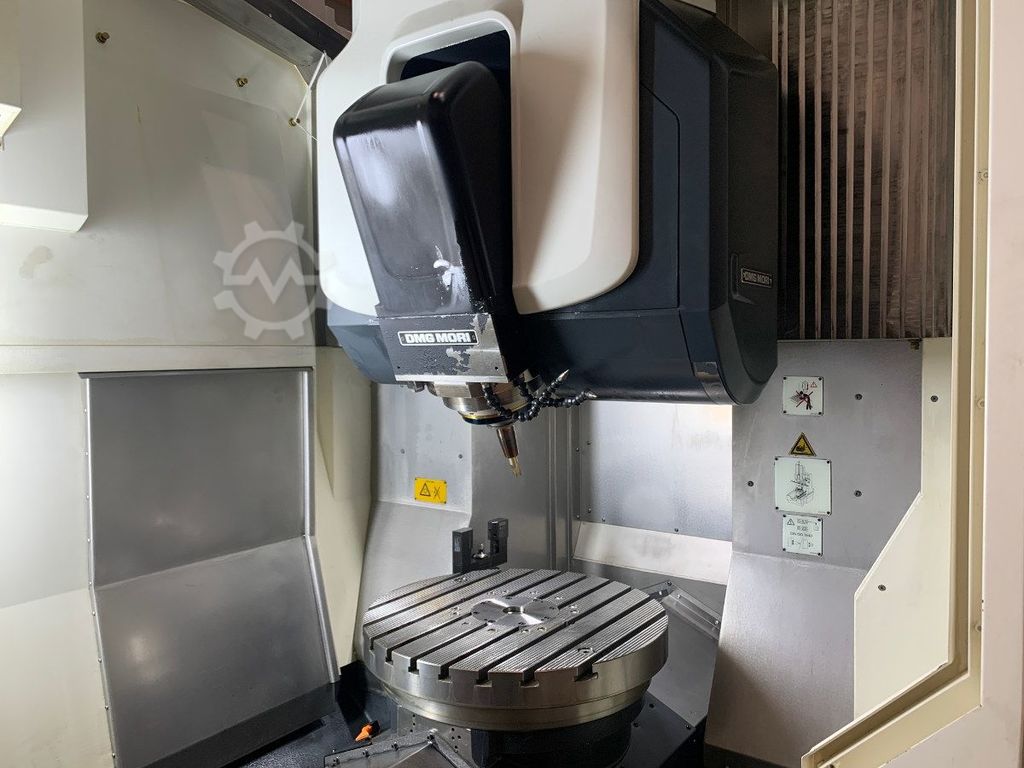

NC-Swivel Head
Technology: Fork head
B-Axis: 0,001°
Stroke: +20° / – 110°
Drive cooling: Acitve water cooling

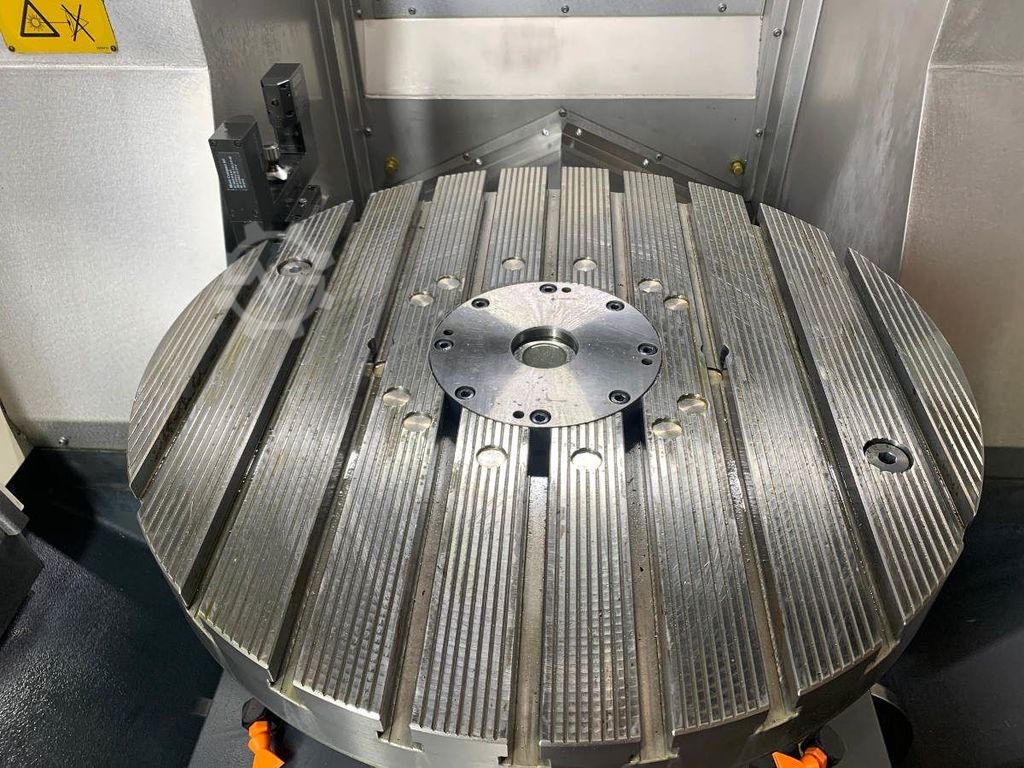

NC-Rotary table
C-Axis: 0,001°
Stroke: 360°
Clamping surface: 600 mm
Load capacity max.: 500 kg
Torque max.: 1.080 Nm
Clamping force max.: 2.000 Nm
Drive cooling: Acitve water cooling

In General:
Tool magazin: 60 stations
Rapid travers X/Y/Z-Axis: 80 m/min

Equipment / Add-ons:
Axs drive: Direct (Linear motors)
Postioning sensor: Direct scales
Drive cooling: Active water cooling
Chip managment: Chip conveyor
Coolant managment I: Coolant through spindle, 40 bar
Coolant managment II: Minimum lubrication
Workpiece measurment: Touch probe
Tool measurment: BLUM Laser
Oil mist seperator: Mechanical
Nurgd
Media feed through spindle: Blast air+ Coolant
Process observation: Operation mode 4

Machine Data

Machine IDWM229536
DMG MORI HSC 70 linear
Machine type5-Axis milling machine
ManufacturerDMG MORI
ModelHSC 70 linear
Year of manufacture2017
Conditionexcellent (used)

Price and Location

LocationOIching , Germany

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
