turning diametre 366 mm
turning length 705 mm
swing over bed 920 mm
Jvgz0i
swing over carriage 742 mm
standard turning diameter 275 mm
distance between centers 795 mm
main-spindle speed 4000 rpm
spindle drive 15 / 18,5 KW
spindle nose JIS A-8
spindle diam. in front bearing 140 mm
spindle bore 100 mm
max. bar diameter 80 mm
C – axis 0,001 °
X – travel 260 mm
Z – travel 795 mm
rapid travel X – Z 30 m/min

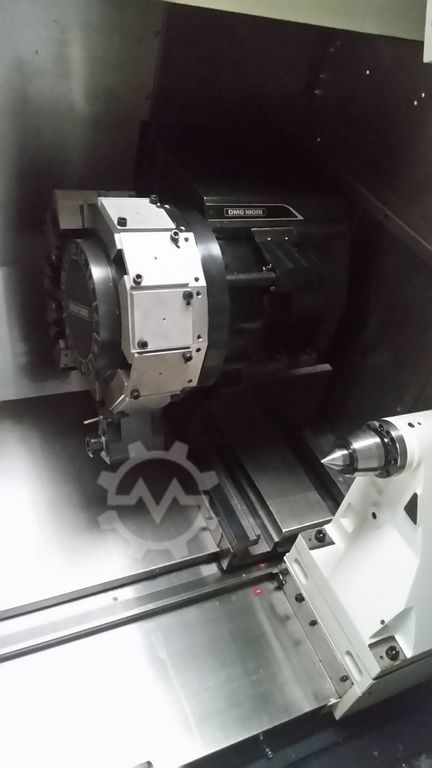

no.of tool pockets in turret 12
diameter of shaft 40 mm
no. of live tooling stations 12
speed range 10.000 rpm
spindle motor 3,7 / 5,5 Kw
tail stock displacement 734 mm
tailstock quill taper 5 CM
total power required 29,9 KVA
machine weight 5,9 to.
floor space required 5,0 x 3,0 x 2,3 m

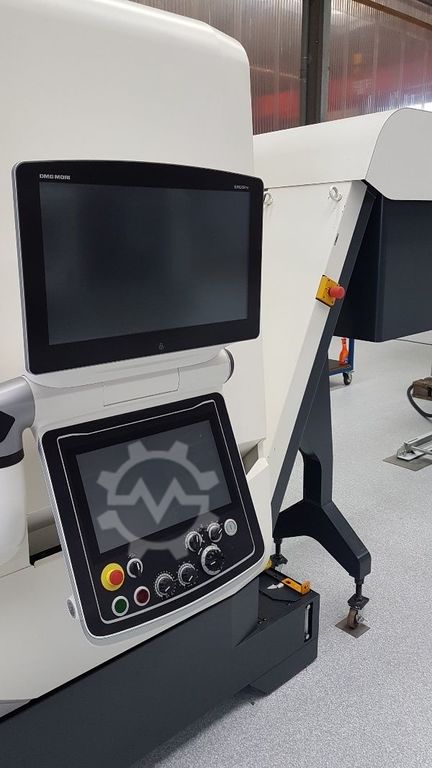

CNC CELOS
C – axis
12 live tooling stations

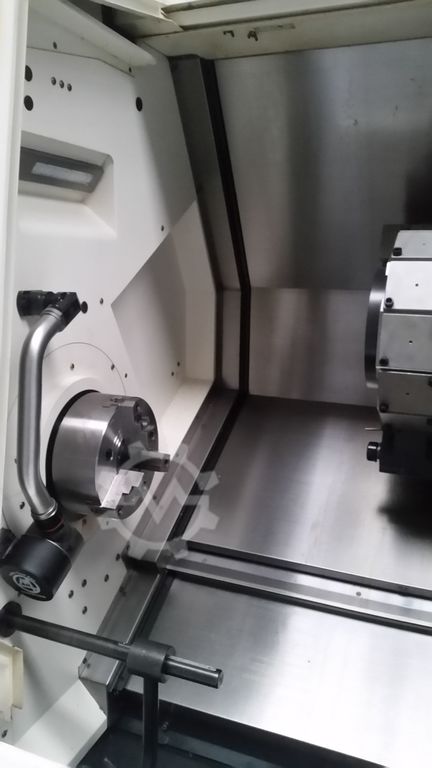

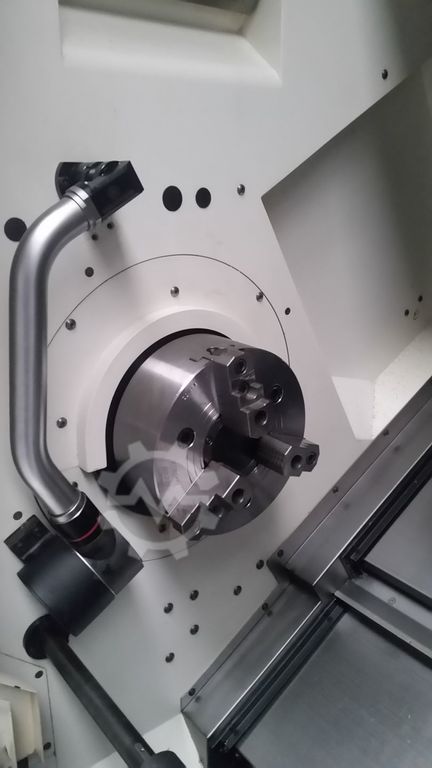

3 – jaw chuck
Tail stock
Tool measuring
Cooling
Chip conveyor
