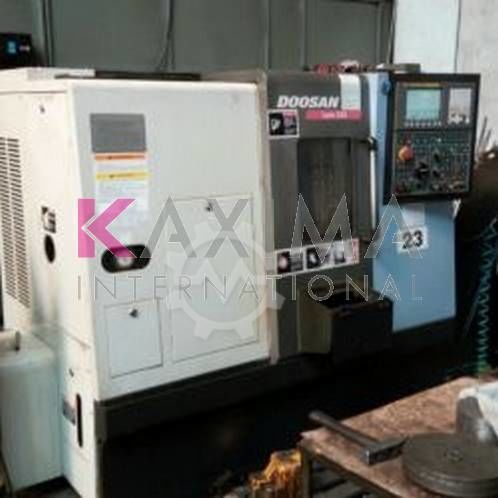

Doosan Lynx 220 B Doosan Lynx 220 B CNC lathe
Recom. Turning diameter 210 mm
Maximum turning diameter 320 mm
Working diameter of rod 51 mm
Biif0aivfo
Maximum cutting length 305 mm
X travel 175 mm (160 +15)
Stroke Z 330 mm (550)
Spindle motor power 11kW
Spindle A2-6
Spindle bearing diameter 100 mm
Diameter of spindle hole 61 mm
Spindle speed 5,000 rpm
The turret places 12 stations
Tool size OD: 25 mm
Boring bar diameter 40 mm
Cross-section of blade 65 mm
Tapered tailstock mt # 4
Tailstock stroke stroke 80 mm
Fast feed xz: 30 x 36 m / min
Main engine kw 11/15
Feeding motors 1,8 kw
Coolant pump motor 0.18 kw
Power supply 23.7 kva
Machine dimensions 2500 x 1620 x 1600 mm
Machine weight 3100 kg
Machine Data | |||||||||||||||
Machine ID | WM231579 | ||||||||||||||
Machine type | Doosan Lynx 220 B CNC lathe | ||||||||||||||
Manufacturer | Doosan | ||||||||||||||
Model | Lynx 220 B | ||||||||||||||
Year of manufacture | 2009 | ||||||||||||||
Condition | excellent (used) | Price and Location | |||||||||||||
Location | Brno , Czech Republic | ||||||||||||||
