DOOSAN Puma 2100 Y CNC lathe DOOSAN type Puma 2100 Y

Posted By :
Comments : 0

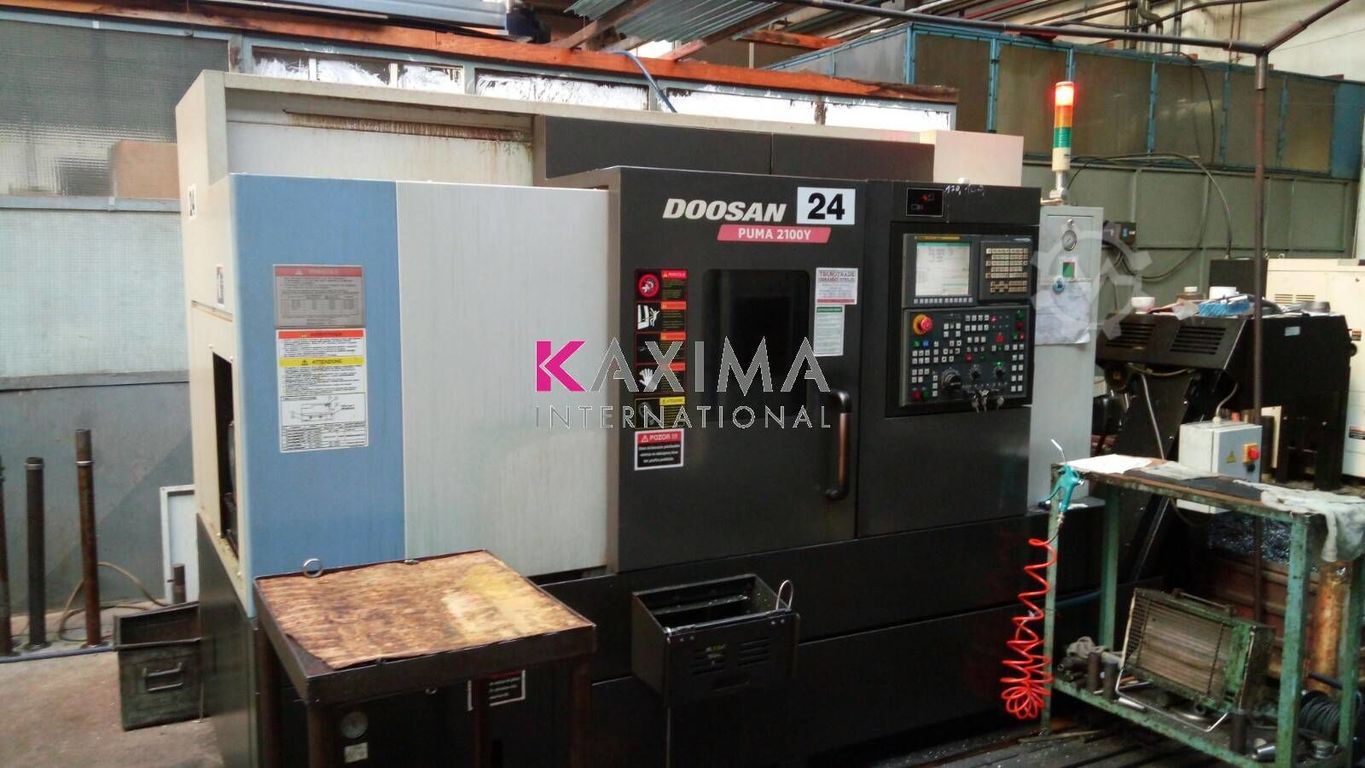

CNC lathe DOOSAN, type Puma 2100 Y
with driven tools, Y axis and
control system Doosan FANUC i-series
Year of production: 2011
Gross weight (approx.): 5450 kg
Working range:
– Swing over cross slide max .: 630 mm
Max. turning diameter above bed: 406 mm
Max. turning length in chuck: 520 mm
Max. diameter of turned bar: 65 mm
Y-axis milling range: 105 (± 52.5) ​​mm
Max. workpiece weight without tailstock (incl. chuck weight = 23 kg) 120 kg
Max. workpiece weight using a tailstock (incl. Chuck weight =
23 kg) kg 320
Hydraulic chuck standard with 3 jaws, diameter: 210 mm
Spindle speed continuously variable: 30-5000 rpm
Diameter of front bearing: 120 mm
Spindle bore diameter: 76 mm
Towing tube inner diameter: 68 mm
Xjjts
C axis with continuous angular positioning, resolution – 0.001 °
Strokes:
– X-axis: 260 mm
– z-axis: 590 mm
– y-axis: 102 (+/- 51) mm
– C-axis stroke (spindle rotation) – ± 360 °
Feeds:
– Rapid traverse in X / Z / Y axis 30/30/10 m / min
– Rapid traverse of rotary axis C 200rpm

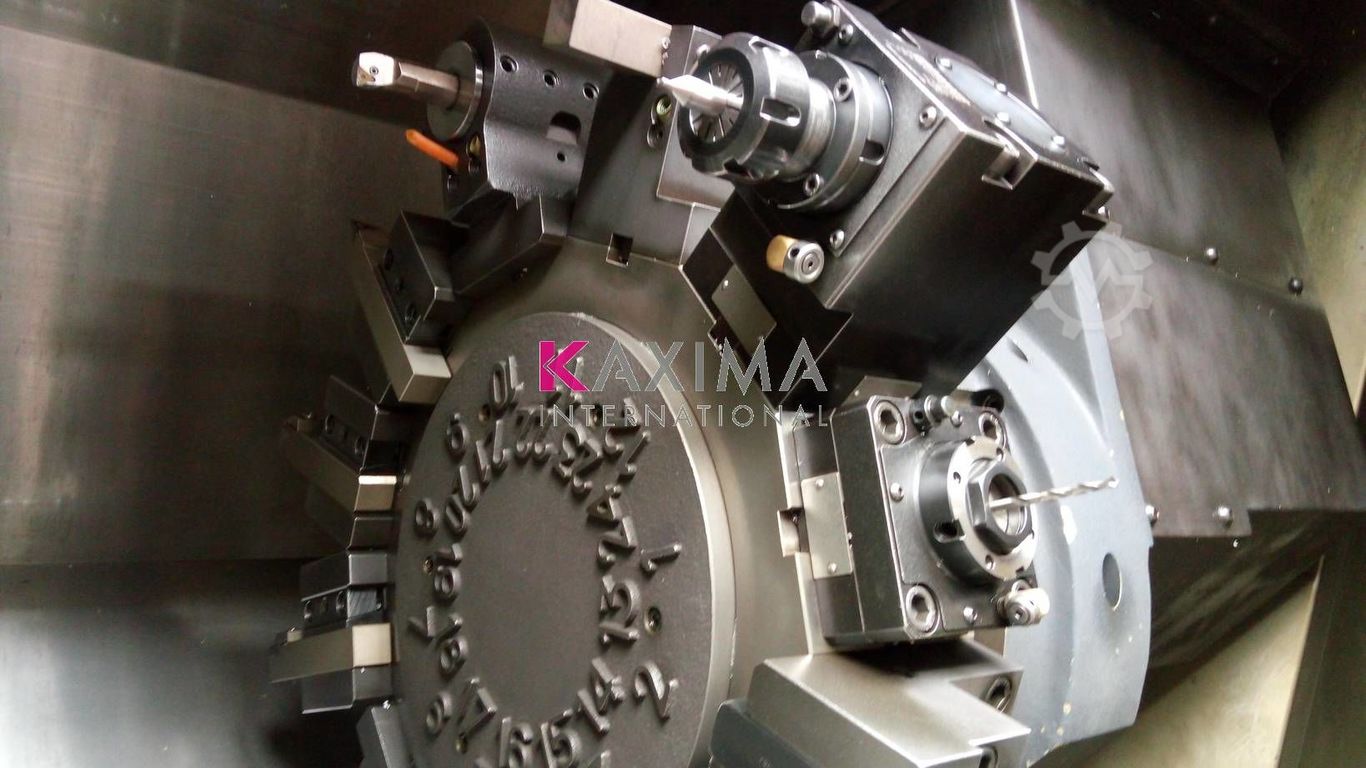

Number of seats in the tool head: 12pcs

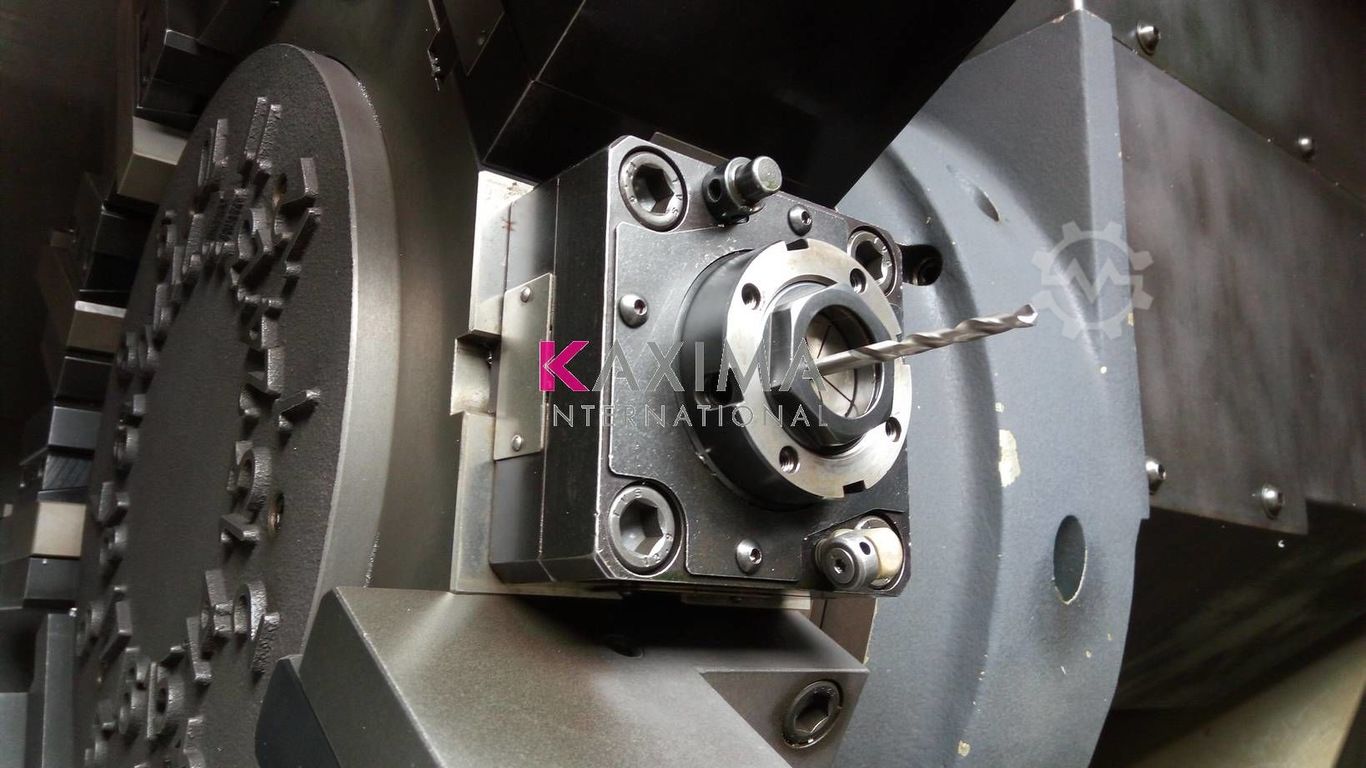

Number of driven positions in the tool head: 12 pcs

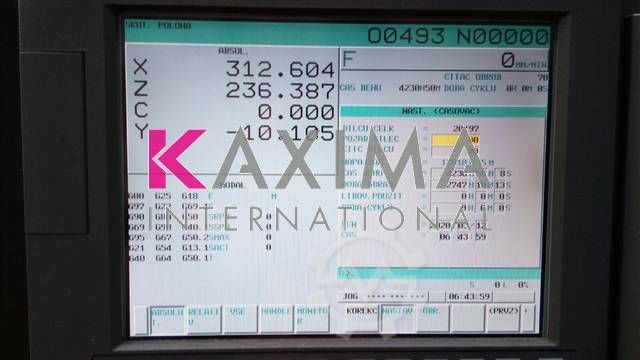

Control system DOOSAN FANUC i-series:
– Engines and digital drives C.A. spindle and single axis FANUC
– Controlled axes X, Z, C, Y
– Absolute encoder (no axes needing) Standard
– Screen type 10.4 ”LCD color

Machine Data

Machine IDWM231289
DOOSAN Puma 2100 Y
Machine typeCNC lathe DOOSAN, type Puma 2100 Y
ManufacturerDOOSAN
ModelPuma 2100 Y
Year of manufacture2011
Conditionexcellent (used)

Price and Location

LocationBrno , Czech Republic

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
