Enshu HMC 40 H BAZ

Tags : , ,
Posted By :
Comments : 0

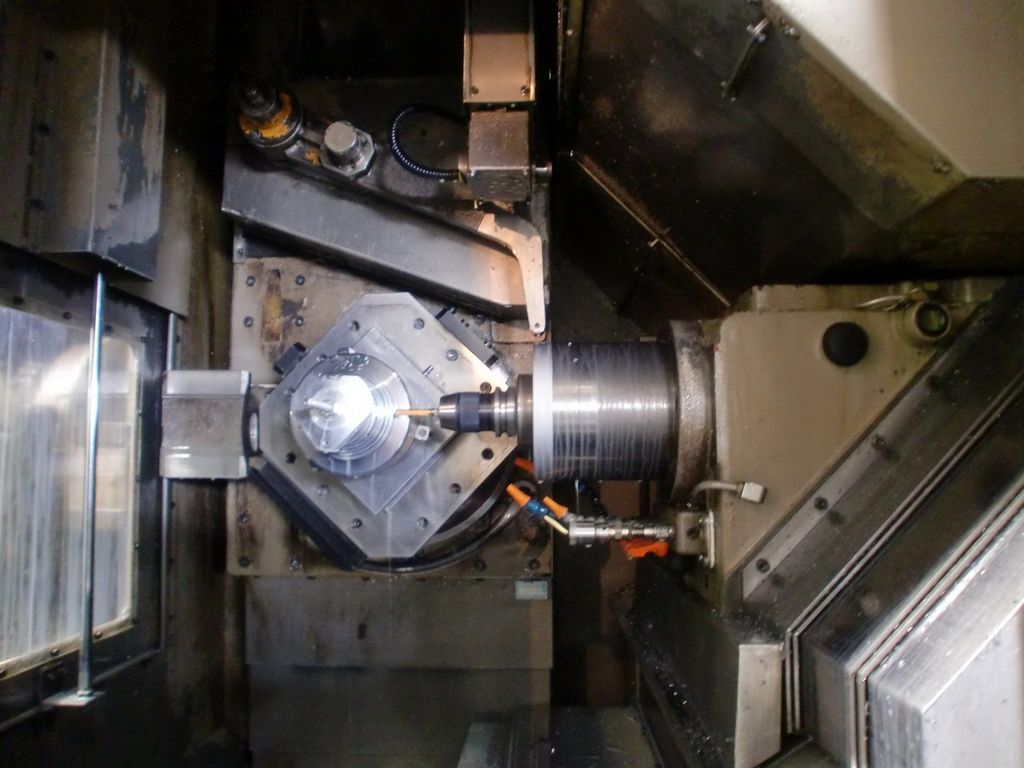

2x Enhsu HMC40 CNC 10 pallet (Japan) with the same built in 1991, a machine in operation, an out of space operation Machine Proper Max: Travel: Vertical (X) x Longitudinal (Y) x Cross (Z) 400 (+25) x 400 x 550 Table:. Pallet size 350×350 (13.78 x 13.78) Number of indexing divisions (angular) 360 (1 each) Max allowable weight of work 200 kilograms (. 440 ins) Number of pallets 10 Work height 400 (15.74) Spindle: Spindle nose JIS No. 40 Spindle speed 60 to 6000 rpm Spindle SpeedChange Continuous; Selective Directly with S Code Followed by a 4-digit number Feed rate: Rapid traverse: X axis 15000 mm / min (. 590.55 in / min) Y and Z axes 18000 mm / min (. 708.66 m / min) Cutting feed 1 to 5000 mm / min (0.04 to 196.85 in. / min) for X, Y and Z jog feed o to 4000 mm / min (o to 157.48 in. / min) for X, Y and Z ATC. Magazine capacity 60 tools Method of tool selection short cut Accessing, absolute address tool shank MAS. … BT40 Max tool diameter 75 (150) Max tool length 300 (11.81) Max tool weight 8 kg (17 lbs.) Motors: Spindle Drive AC5.5 KW, continuous (7.5 kW, 30 minutes rating) Axis drive: Y and Z axes AC1.8 kW X axis AC2.9 kW Drive Indexing Ac1.8 kW Hydraulic drive 3.7 kW Coolant pump PumpDrive 250 W lube oil pump drive 4 W Electric power requirements AC200 / 220V 10%, 50/60 Hz, Three phanse, 30 kV A Floor space occupied (width x depth x height) 3760 x 2900 x2410 (148.03 x 114.17 x 44.88) Weight of machine 6500 kg (14300 ins.) Hydraulic-unit tank cap […Technical data truncated]

Machine Data

Machine IDWM122596
Enshu HMC 40
Machine typeH. BAZ
ManufacturerEnshu
ModelHMC 40
Year of manufacture1991
ConditionUsed machine

Price and Location

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163

Seller's other machines (12706)
