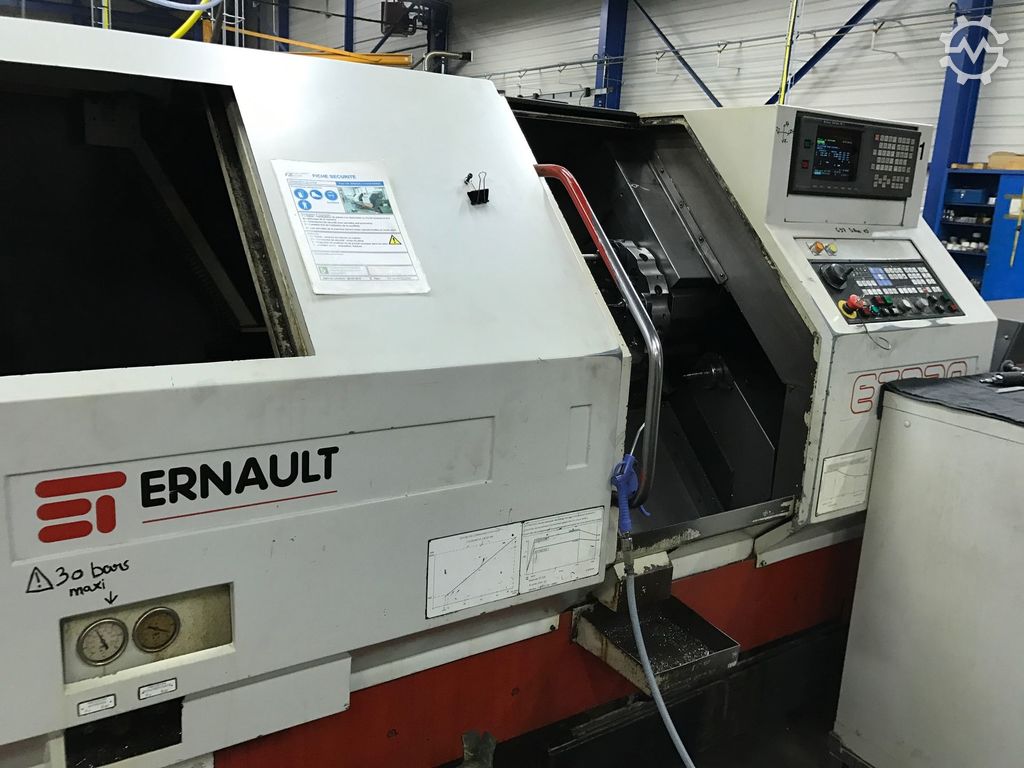

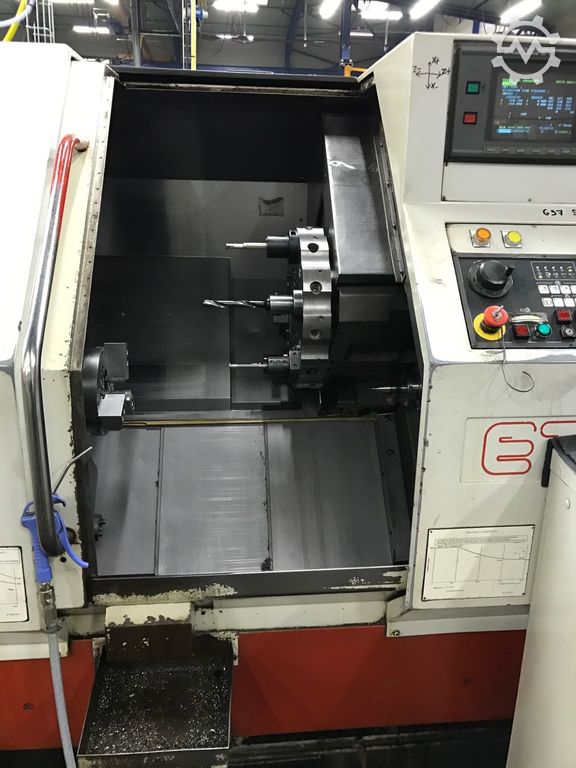

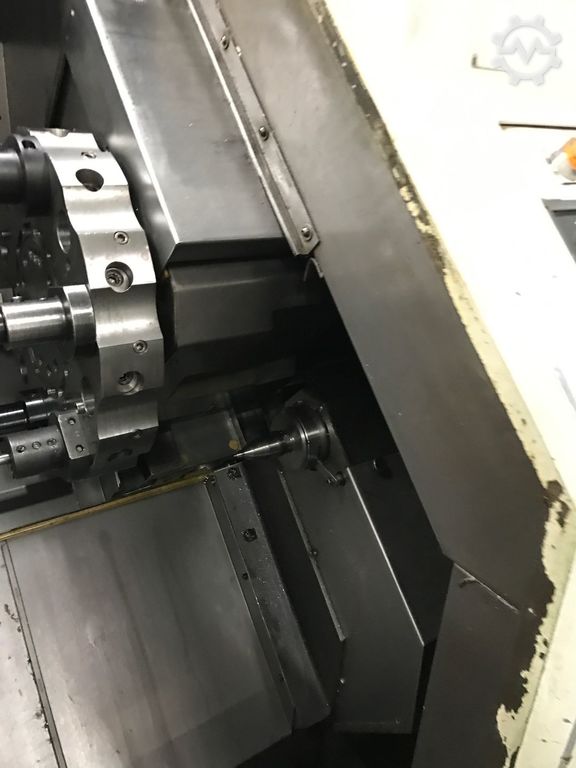

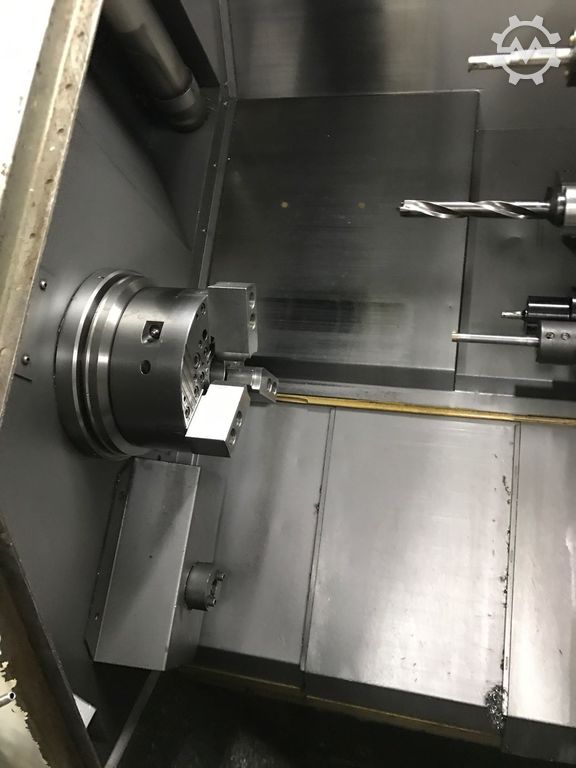

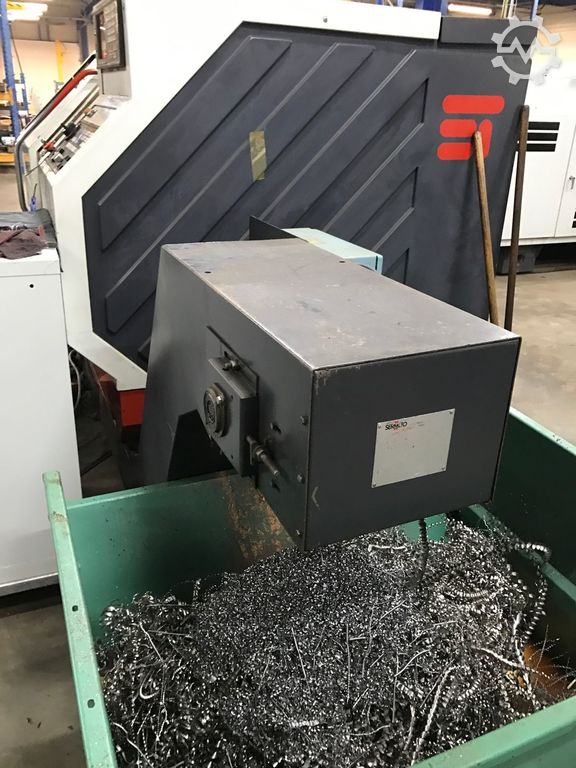

ERNAULT TOYODA ET 220 CNC LATHE

Posted By :
Comments : 0

CNC lathе ERNAULT TOYODA ET 220 bearing no 1105-02225 make ERNAULT TOYODA type ET 220 year 1997 State second-hand machine CNC CNC FANUC 16 T storage FRANCE country of origin france delivery immediately cargo base EX WORK technical details CNC FANUC 16 T tip height 320 mm turning length 480 mm swing over carriage 320 mm swing over bed spindle flange diameter 450 mm 140 H mm spindle diameter in the vord. Camp 100 mm spindle bore 70 mm hollow spindle diameter 55 mm torque on the spindle 150 nm Chuck diameter 200 mm longitudinal stroke 540 mm plan stroke 240 tailstock Quill diameter 100 mm tailstock spindle mount MT 4 tailstock stroke 80 mm feed rates – along 0.5-10000 mm / min feed rates – plan 0.5-1000 mm / min rapid traverse – longitudinal/plan 30 m / min feed force along 8000 N feed force cross 5000 N pitch of 100 mm max.

Machine Data

Machine IDWM199049
ERNAULT TOYODA ET 220
Machine typeCNC LATHE
ManufacturerERNAULT TOYODA
ModelET 220
Year of manufacture1997
ConditionUsed machine

Price and Location

Price15.000
CurrencyEUR

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
