EUROIMPIANTI Powder coating system

Posted By :
Comments : 0

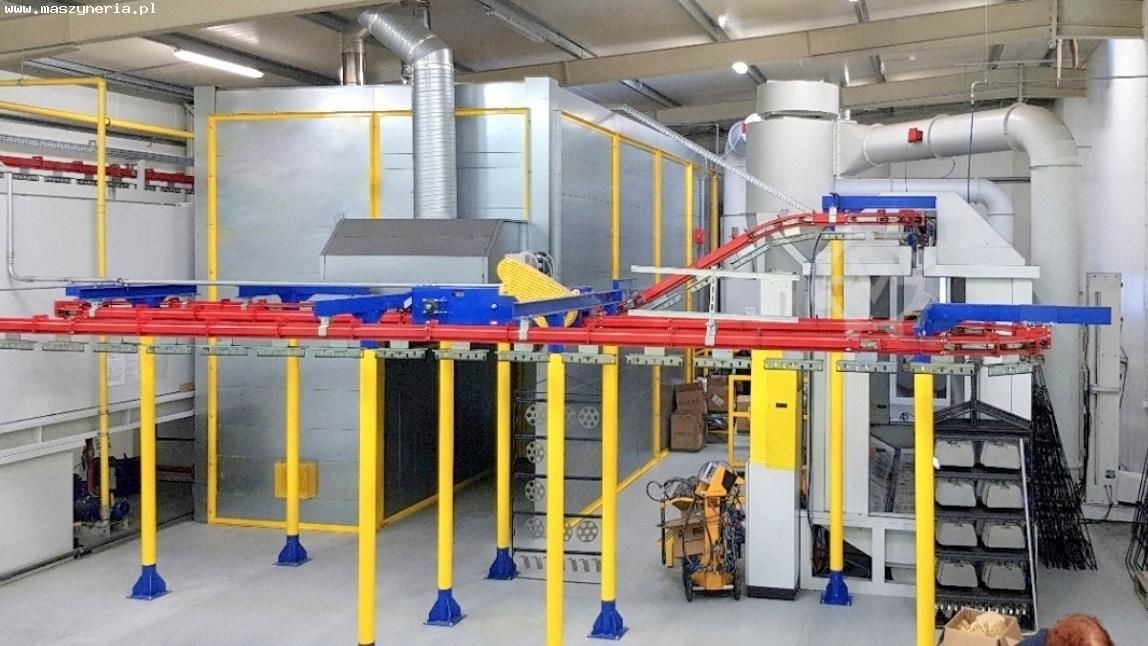

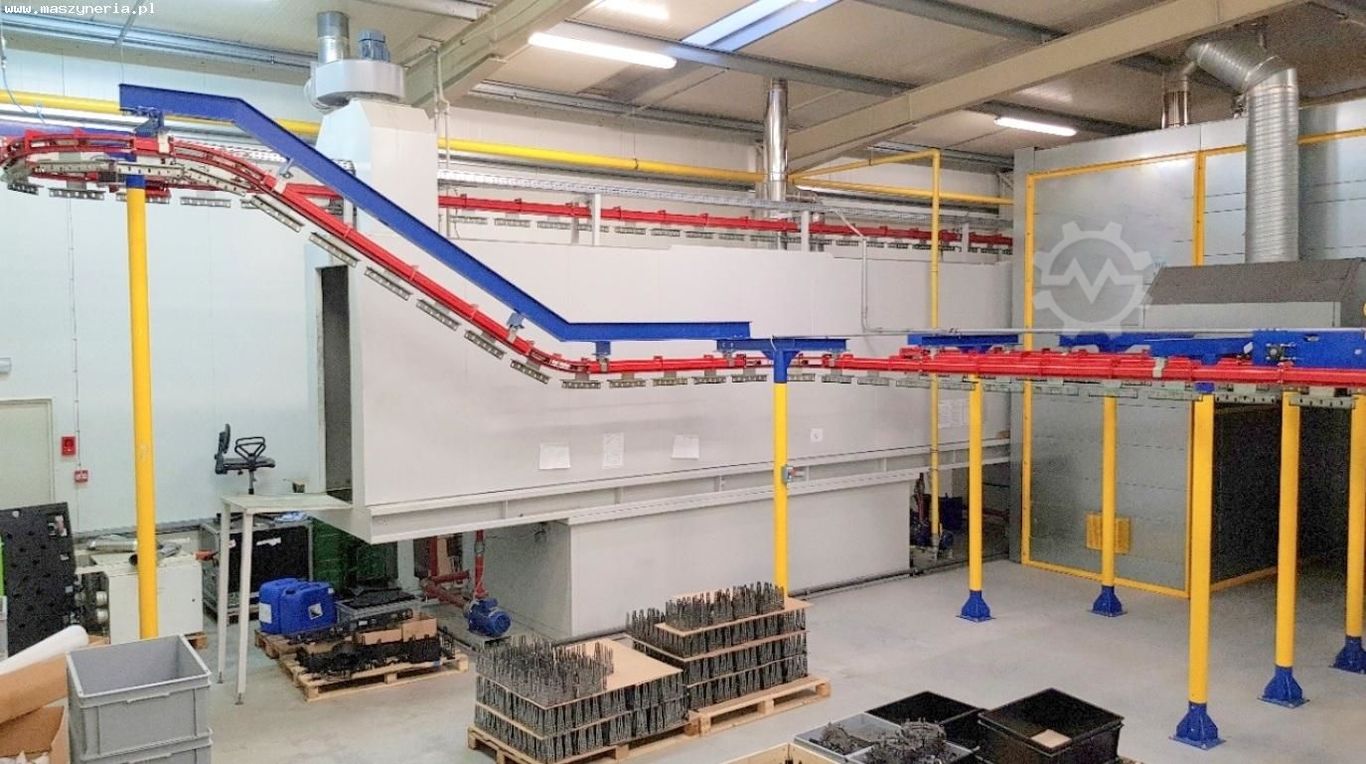

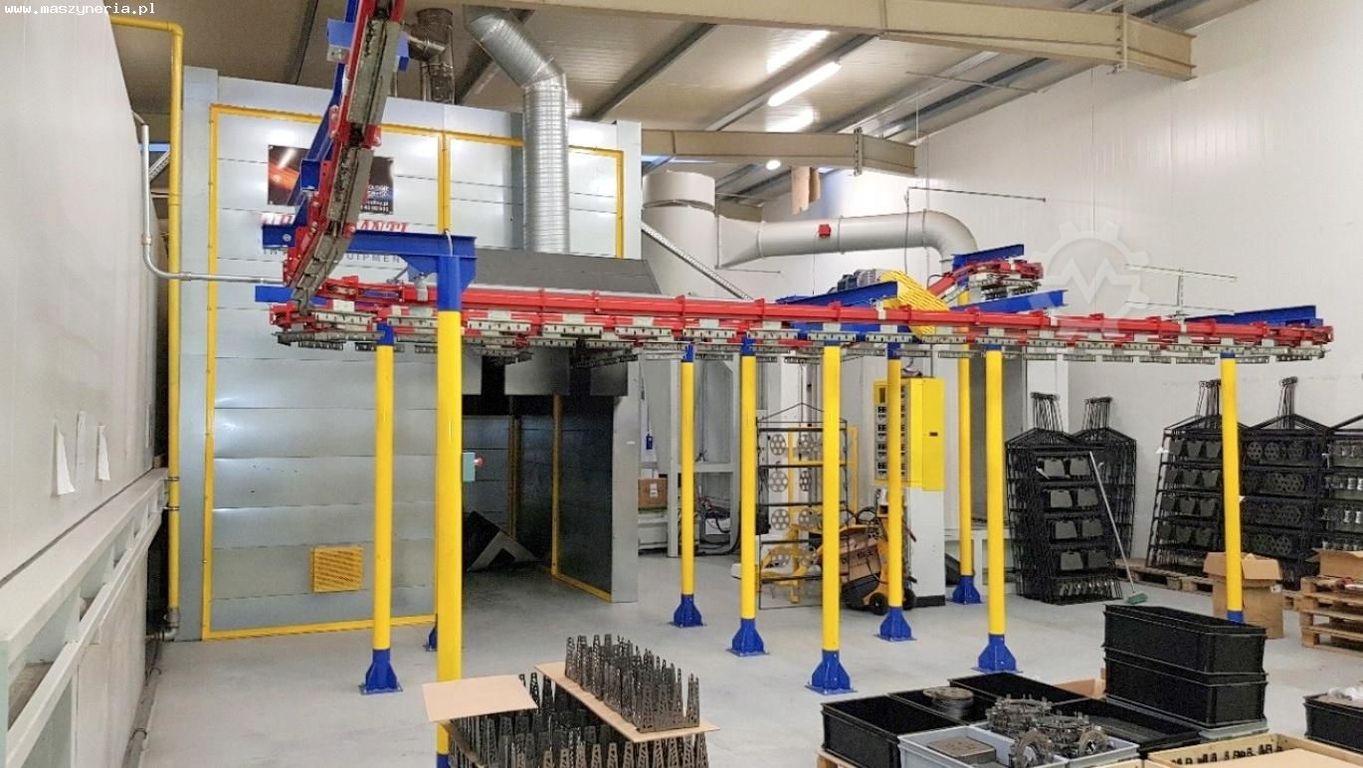

Powder coating plant EUROIMPIANTI built in Italy in 2015. The automatic powder coating line is complete.

Components of the painting line:
– spray tunnel for surface preparation
– drying oven
– manual cabin for applying powder paint, without recovery
– booth for applying “automatic dielectric” powder paint
– bell firing furnace
– top conveyor
– conveyor cleaning and lubrication station
– main electrical cabinet

Technical parameters of the EUROIMPIANTI powder coating shop:
Metal components:
– passage available (width x height): 0.75 x 1.75 m
– maximum dimensions of details (width x length x height): 0.3 x 1 x 1.6 m
– chain speed: 1.5 m / min, adjustable from 0-4 m / min.
– maximum weight of details: 80 kg / m

Energy demand:
– electric power: 55 kW
– supply voltage: 400 V, 3F + N, 50 Hz

Tunnel for spraying surface preparation:
– total length of the tunnel: 15.5 m

Painting line oven:
– oven dimensions (L x W x H): 7.75 x 2.5 x 4.5 m
– working temperature: 120 degrees C
– electric power: 3 kW

Spray booth for manual application of powder paint, without recovery:
– cabin dimensions (length x width): 4 x 1.5 m

Painting booth for applying powder paint:
– cabin dimensions (L x W): 5.25 x 1.8 m

Bell firing furnace:
– cabin dimensions (LxWxH): 12.5 x 4 x 4.5 m
– internal course of the chain: 40 m
– working temperature: 200 degrees C
Bicow23gpc
– electric power: 4 kW

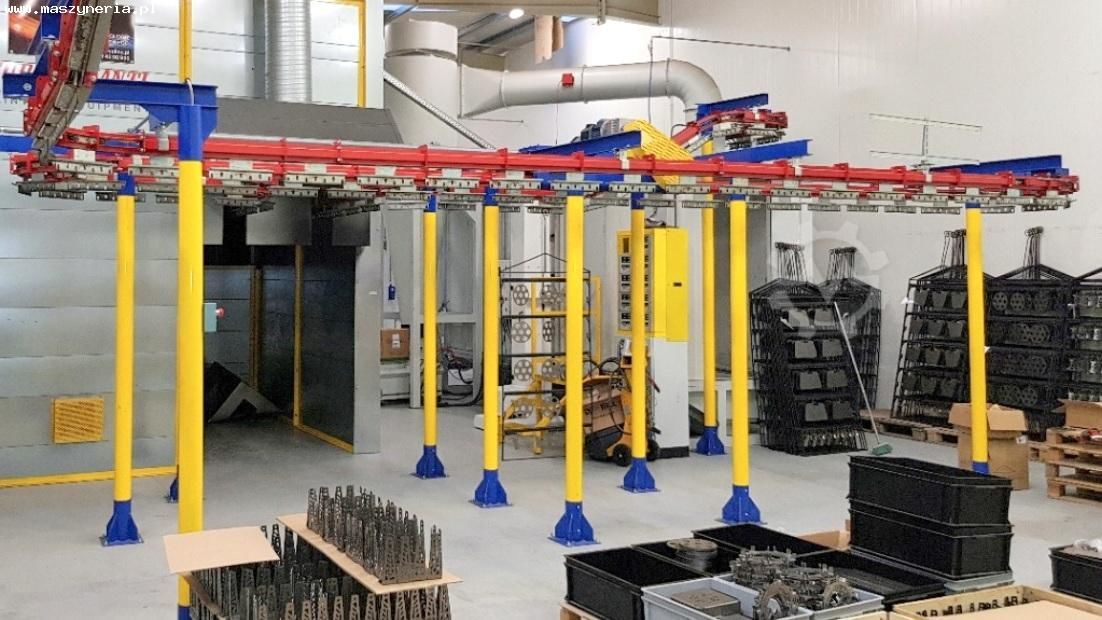

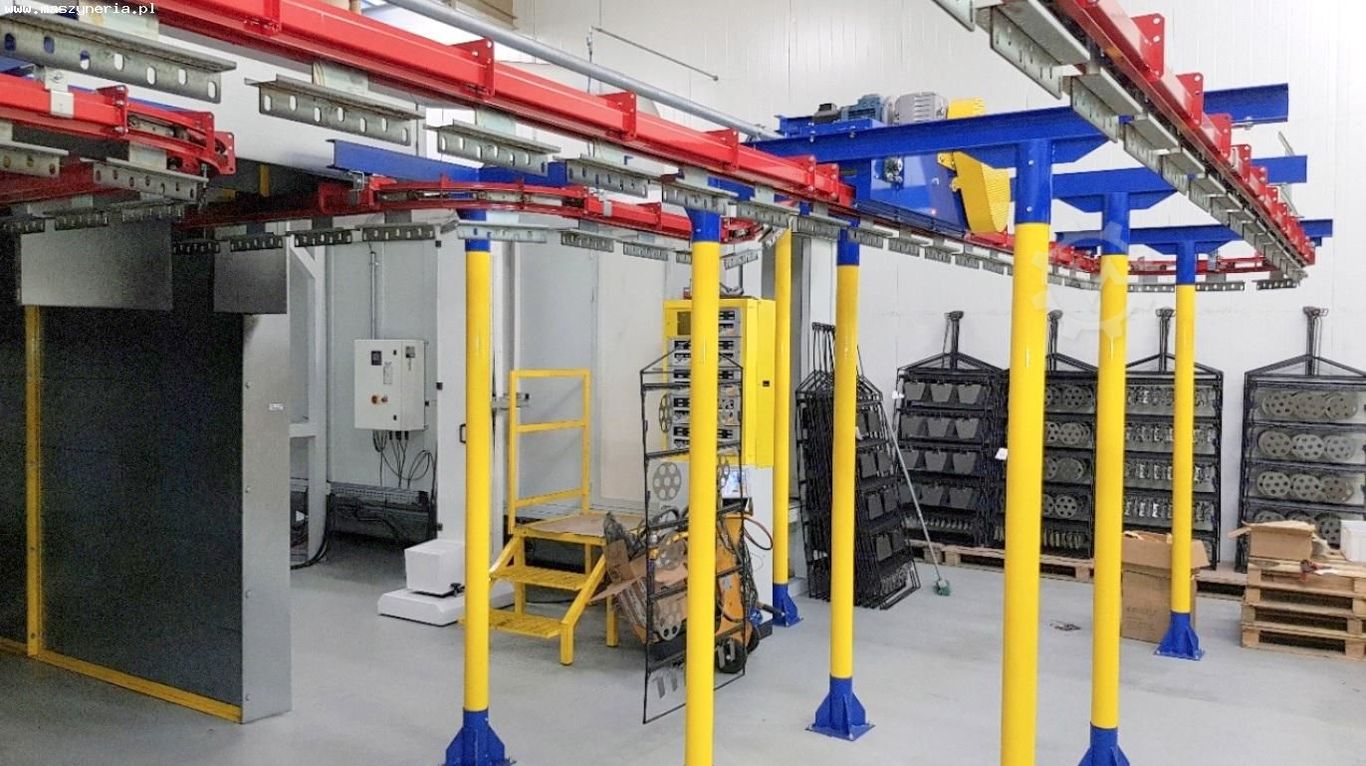

Top conveyor of the EUROIMPIANTI line:
– running distance: 135 m running ca.
– sling spacing: 400 mm with holes every 100 mm
– load capacity: 80 kg / m
– production speed: 1.2 m / min.
– electronic changer: 0-4 m / min.
– electric power: 0.75 kW

Machine Data

Machine IDWM230029
EUROIMPIANTI
Machine typePowder coating system
ManufacturerEUROIMPIANTI
Year of manufacture2015
Conditiongood (used)

Price and Location

Price204.71000
Currency
LocationJelenia Góra , Poland

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
