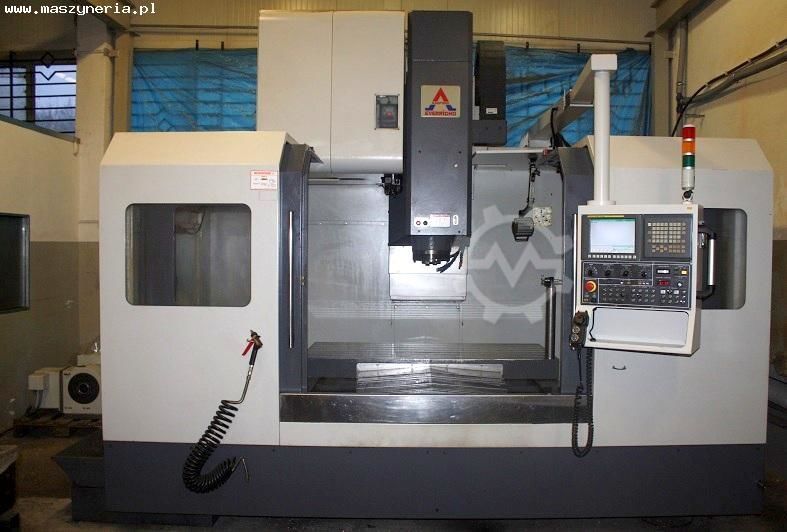

EVERRICHO ER VMC 1680 LB Vertical CNC milling center

Vertical machining center EVERRICHO ER VMC 1680 LB was built in 2015. The price includes an additional tilt and rotary table (additional 4th and 5th axis). The net price of the new center (without the compressor) is PLN 694,000. This machine was started in December 2015 and operated occasionally until January 2019. Before each start-up, the machine was warmed up at low feeds and low revolutions for about 40 min (total time for warming up without load: approx. 800 hours). Total machine operation time: approx. 3300 h, real machine operation time: 2500 h. It is a very precise and rigid (13 tons) machine, working in 5 axes after installing the tilt and rotary table. Works carried out on the machine are only prototypes, the machine was not used for mass production. The tilt and rotary table offered for the price (the cost of a new PLN 160,000) was launched only once after the purchase of the machine, for the implementation of the NX CAM pre-processor, because in the company where the machine worked, the main activity was designing and making prototypes, not production activities for 5 axis machining. The center is offered with extensive additional equipment.

Technical parameters of the CNC milling machine:
– machine time worked: approx. 3300 h
– CNC control (Japanese): FANUC Oi-MD
– table dimensions: 1600 x 700 mm
– X, Y, Z axis shifts: 1600 x 800 x (300-1100) mm
– maximum workpiece weight: 2000 kg
– belt driven spindle: 6000 rpm
– slide guides
– total machine weight: 13500 kg

Machining center equipment:

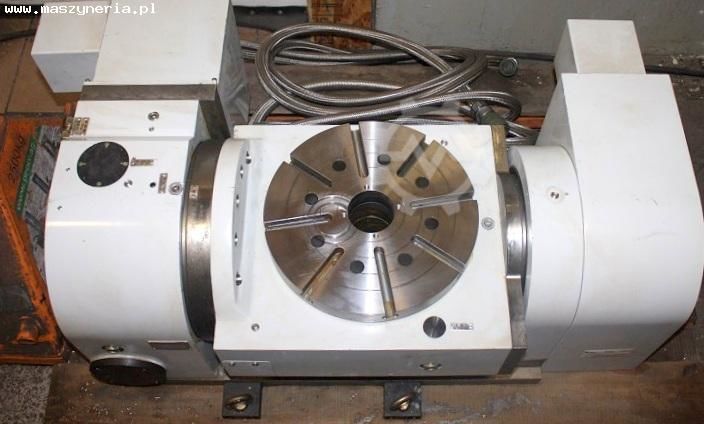

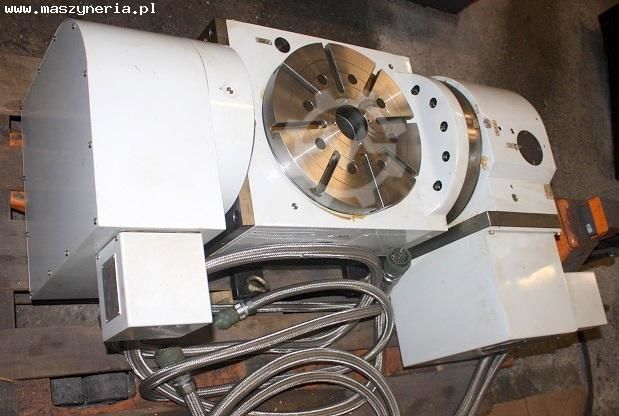

– swivel rotary table (4th and 5th axis)
– reciprocating compressor
Dwpzke
– tool measuring probe: RENISHAW TS27R
– OMP60 probe, with RENISHAW optical transmission
– measuring scales, increasing the machine’s accuracy
– cooling through the spindle: 20 bar
– spindle oil cooling unit and ball screws
– tool magazine: 24 position

You can also purchase additional software for the machine: NX CAM. NX CAM software is the most comprehensive and flexible solution that supports the manufacturing process. It offers advanced and easy-to-use mechanisms for programming machines for 3-5 axes. Software price: PLN 45,000 net.

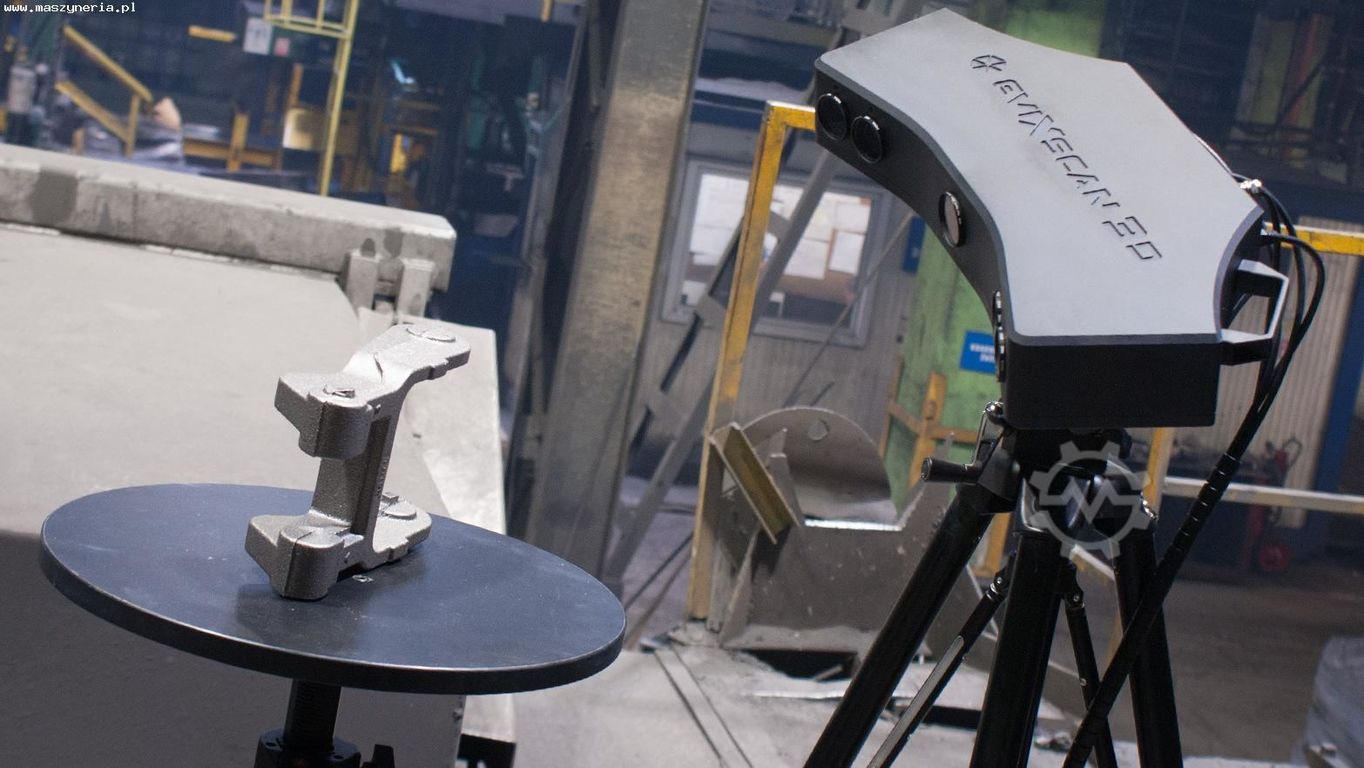

In addition, we have in the sale of 3D EVATRONIX eviXscan HeavyDuty QUADRO scanner for measuring the accuracy of manufactured details, which works perfectly with the offered center EVERRICHO ER VMC 1680 LB. EVATRONIX 3D scanner with a rotary table and software for analyzing the accuracy of the workpiece (with a control computer), which is used instead of a CMM or measuring arm. Measurement accuracy: up to 0.01 mm. Price: 45,000 PLN net.

When buying a machining center with NX CAM software and 3D EVIXSCAN scanner, the total price is negotiable.
