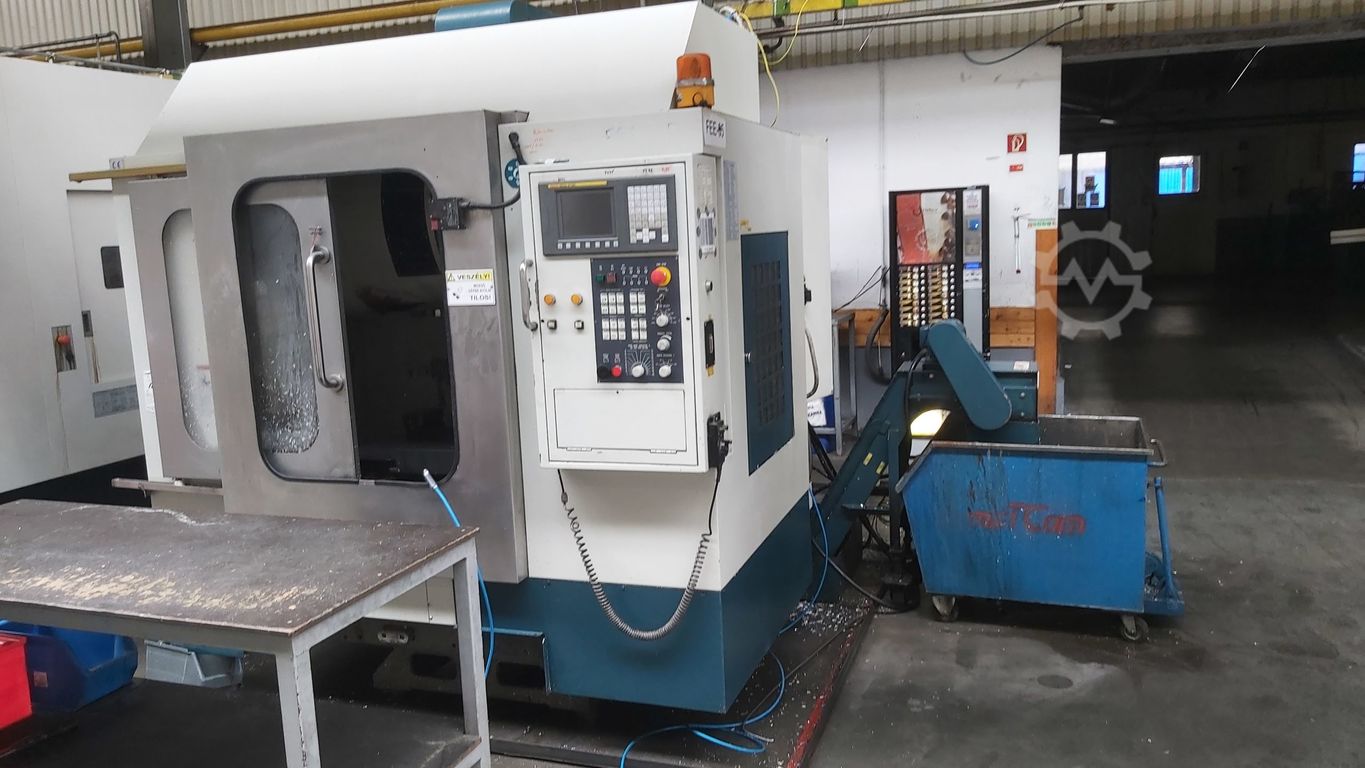

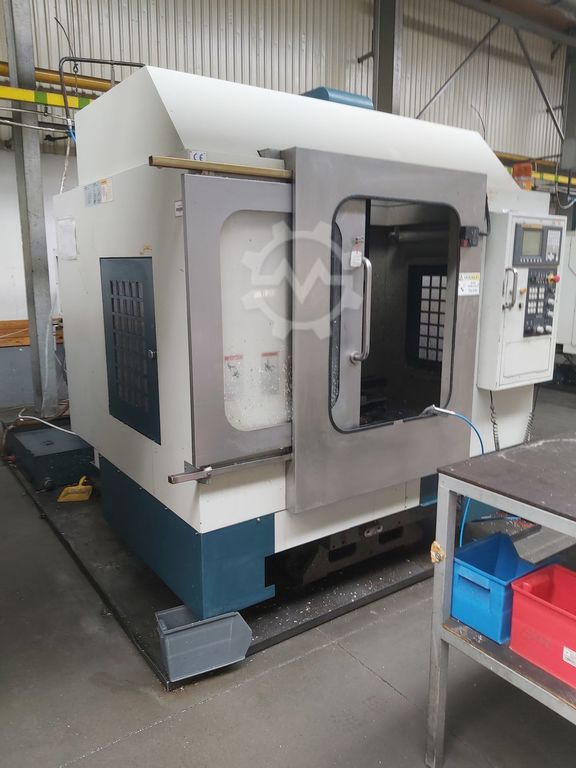

Feeler FV 580AAPC Cnc Machining Center Vertical

Posted By :
Comments : 0

Feeler FV-580 AAPC Vertikal machining center

Range X 580 mm (22.8″)
Range Y 420 mm (16.5″)
Range Z 490 mm (19.3″)
Spindle Nose to Table Surface 50 – 540 mm (1.96″ – 21.25″)
Spindle Center Line to Column Surface 450 mm (17.7″)

Column Surface to Table Center Line
240 – 660 mm/ (9.4″ – 26″)
Worktable
Table size (length x width) 580 x 410 mm/ (22.8″ x 16.1″)
Maximum table load 120 kg (264 lbs)
Table tee slots 35 M12 x 1.75
Spindle Taper No. 40
Speed Range 50 – 8000 RPM
MTDR 7.5 Kw (10 Hp)
Continuous 5.5 Kw (7.5 Hp)

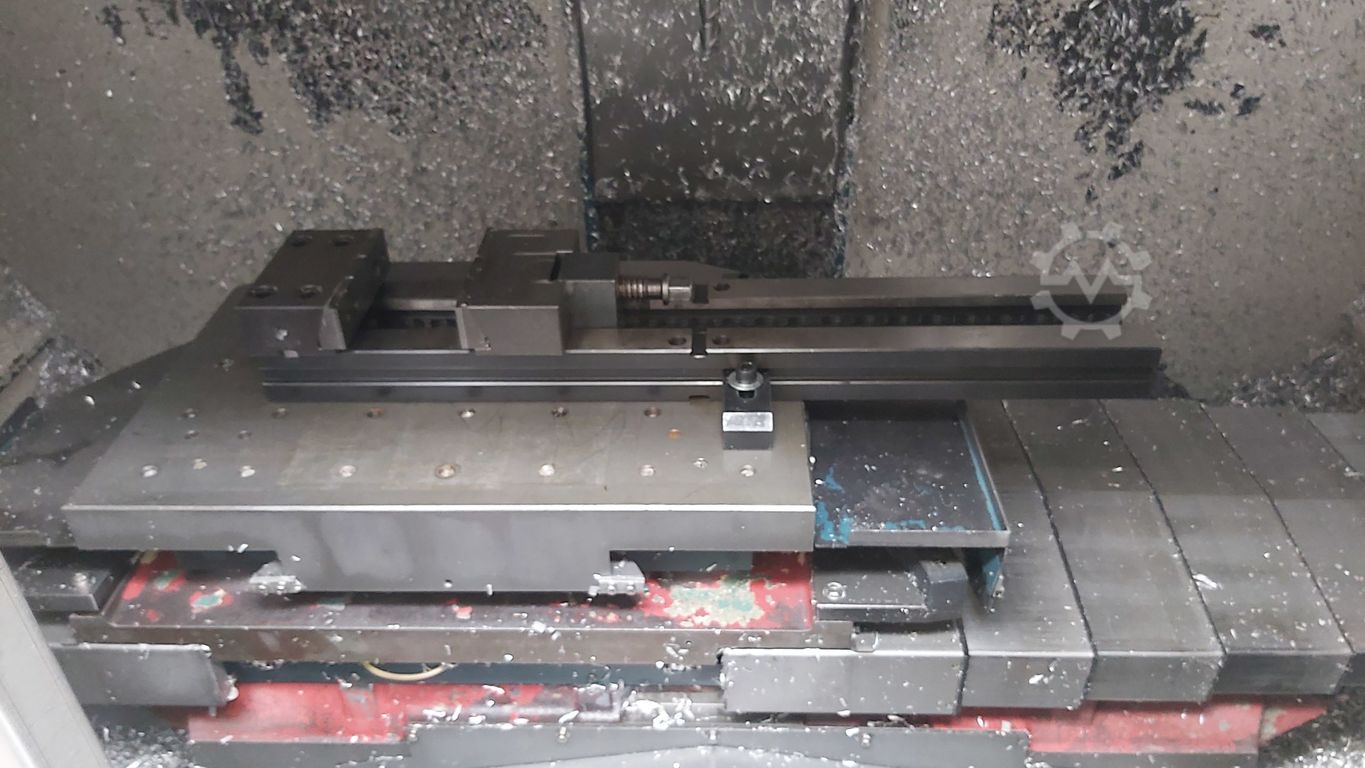

Automatic Pallet Changer
Dzlvtkuho
Number of Pallets 2 Pallets
Pallet Size 580 mm x 410 mm(22.8″ x 16.1″)
Pallet Change Mechanism Swing Arm
-Cam Operated
Pallet Change Time 6 Seconds
Way System X, Y & Z Axis Linear Guide Ways
Axis Performance Rapid traverse rate (X, Y, Z)
48 m/min (1.890″/min.)
Toolchanger
Standard storage capacity 20 Tools
Type Swing Arm
Tool to Tool time 1.4 Secs
Metal to Metal time 3.5 Secs
Maximum tool weight 7 kg (15 lbs)
Maximum tool diameter / Full 80 mm (3.14″)/ 130 mm (5.1″)
Maximum tool length 250 mm (9.8″)
Weight & Floor Space
Weight
3000 kg (6,600 lbs)
3000 kg (6,600 lbs)
3900 kg (8,580 lbs)
Floor space (width x depth)2.1 m x 2.5 m
Maximum height 2.37 m (7.8′)
Control Choices Fanuc 0i-MC Control

If you need more information. We are here to help! Please contact us via the contact form or call us

Your ad has been automatically translated. Translation errors are possible.

Machine Data

Machine IDWM230905
Feeler FV-580AAPC
Machine typeCnc Machining Center - Vertical
ManufacturerFeeler
ModelFV-580AAPC
Year of manufacture2006
Conditionexcellent (used)

Price and Location

LocationTata , Hungary

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
