Metal processing machinery » Machining centers (vertical) » Centers (vertikal) 1000-1199mm (x-travel) »

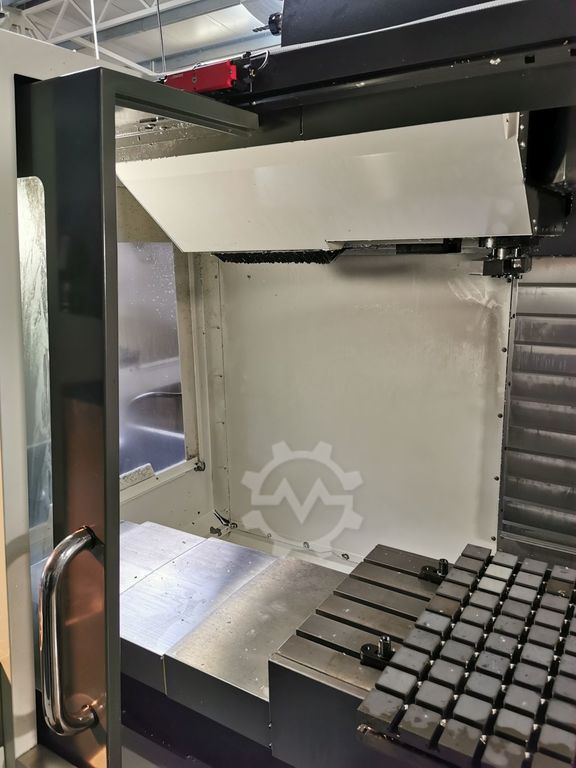

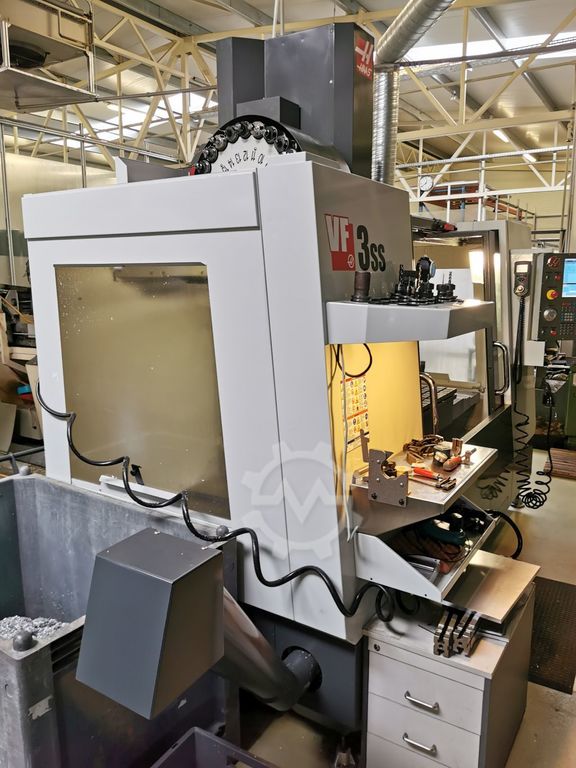

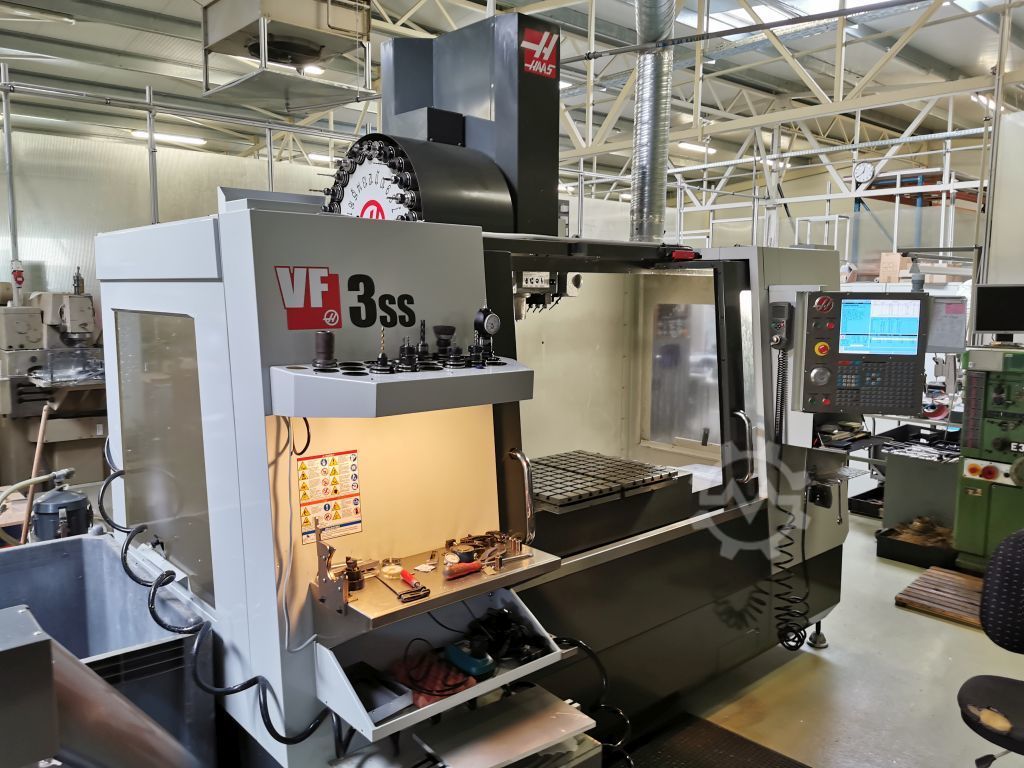

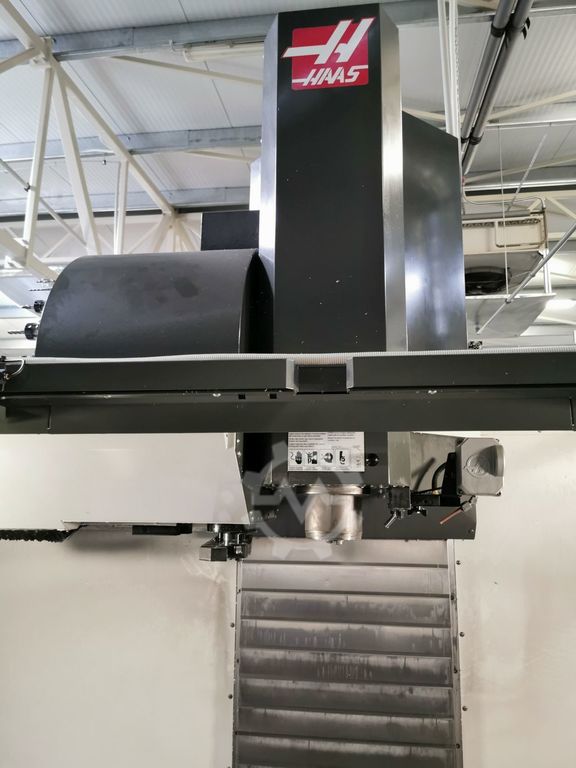

Haas Automation VF3SS Vertical machining center
Control HAAS Intuitiv Programing, LCD monitor, USB
Bfubmct0te
Table size 1220 x 457 mm
Table load 754 kgs
X travel 1016 mm
Y travel 508 mm
Z travel 635
Distance between spindle nose and table top 107 – 742 mm
Spindle speed 12000 rpm
Tool taper SK40
Rapid speed X/Y/Z 35,6 mm/min
Spindle power 22,4 kW
ATC Magazin 30+1-fold
Gewicht 6260 kg
Machine dimensions LxWxH 3300 x 2400 x 2570 mm
Accessories
– Chip conveyor
– MPG
– Increased spindle and axes performances (Super Speed)
– Coolant through spindle
– 15 pcs tool holders
– 1 pc hydraulic vise
– Coolant unit
– Manuals
– System backup on USB stick
– Original RENISHAW ballbar test
The machine has worked only ALUMINIUM parts. Very less working hours. It will be sold because of company liquidation. Under power in Hungary.
Machine Data | |||||||||||||||
| Machine ID | WM227518 | ||||||||||||||
| Machine type | Vertical machining center | ||||||||||||||
| Manufacturer | Haas Automation | ||||||||||||||
| Model | VF3SS | ||||||||||||||
| Year of manufacture | 2013 | ||||||||||||||
| Condition | excellent (used) | Price and Location | |||||||||||||
| Location | Szekesfehervar , Hungary | ||||||||||||||
