Metal processing machinery » Machining centers (vertical) » Centers (vertikal) 1000-1199mm (x-travel) »

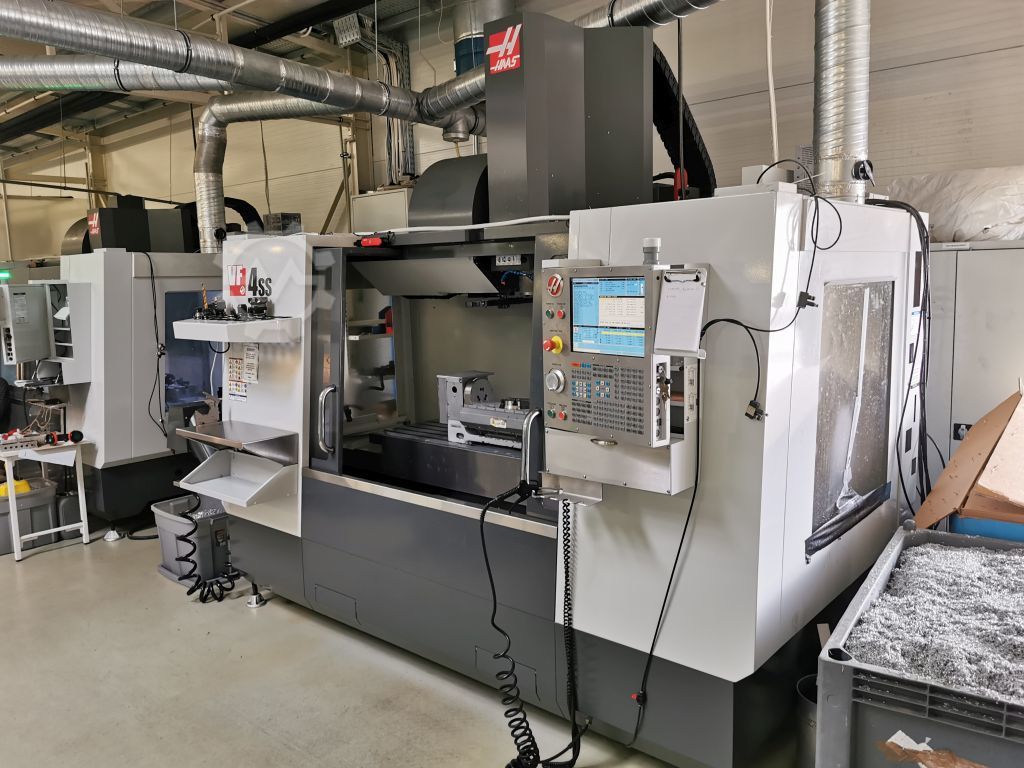

Haas Automation VF4SS 5 axis vertical machining center

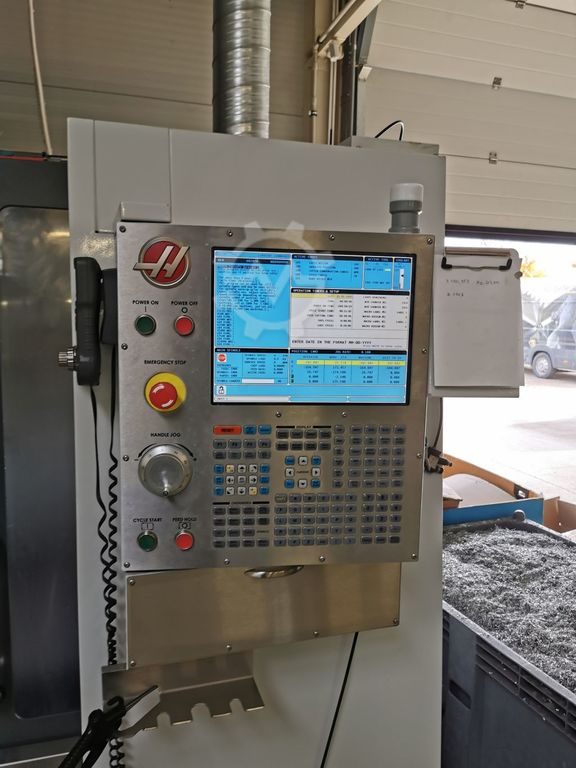

Vertical super speed machining center; travels 50 “x 20” x 25 “(1,270 x 508 x 635 mm), 1 MB of program memory, 15” LCD color screen, USB port, Lock key for program lock,
SK40 spindle, 30 hp vector drive (22.4 kW), 12,000 rpm, inline direct drive, side-mounted “high-speed” tool changer with 24 + 1 magazine locations, rapid traverse up to 1,400 ipm (35.6 m / min),
Synchronized tapping
Coolant tank with 208 liter capacity and pump (0,6 kW)
Coolant supply for spindle flow, 21 bar
Chip auger

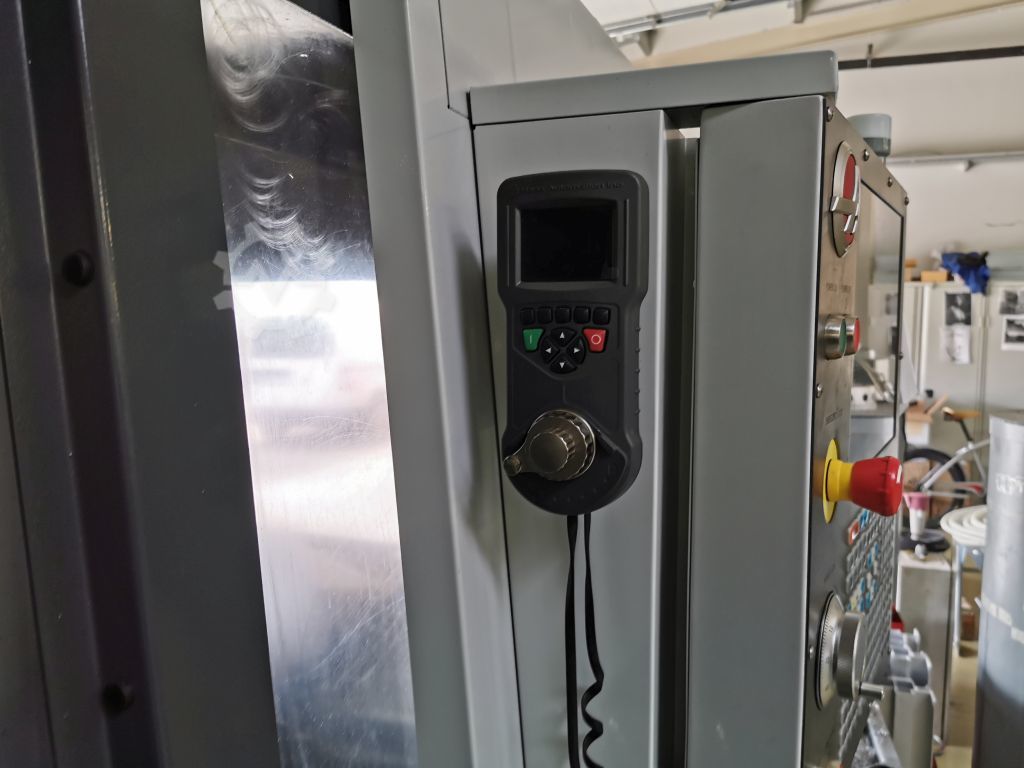

Extended portable control panel with LCD
Vzktq9h2
Additional coolant filtration system with 25 μm filter
Programmable coolant nozzle

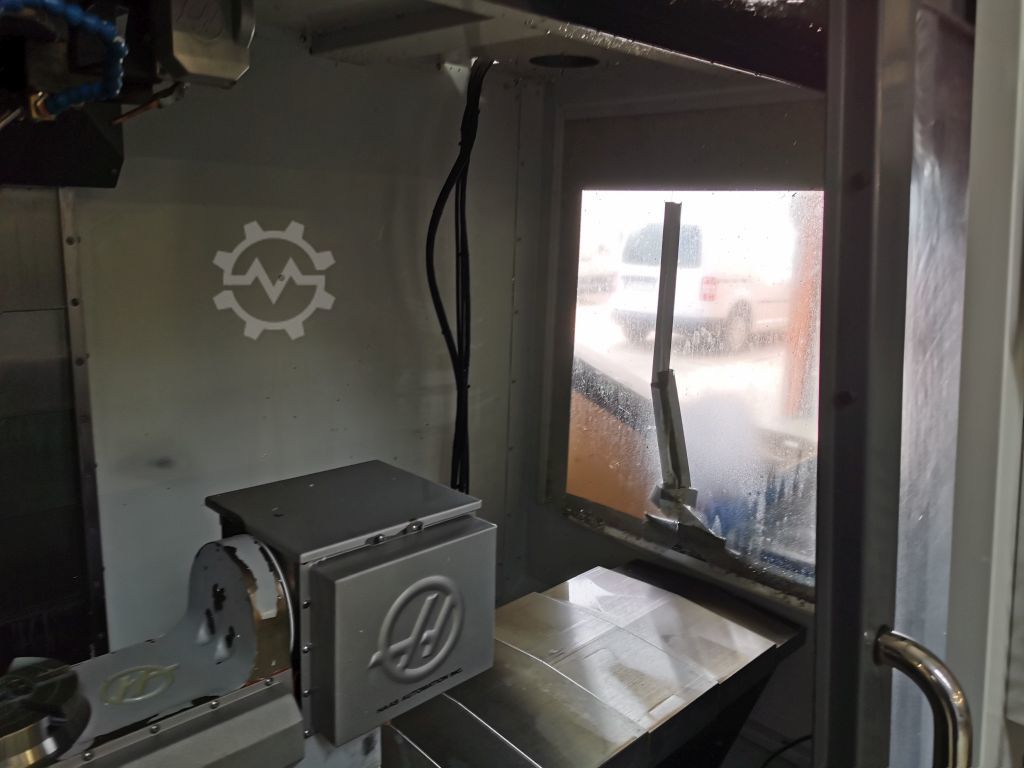

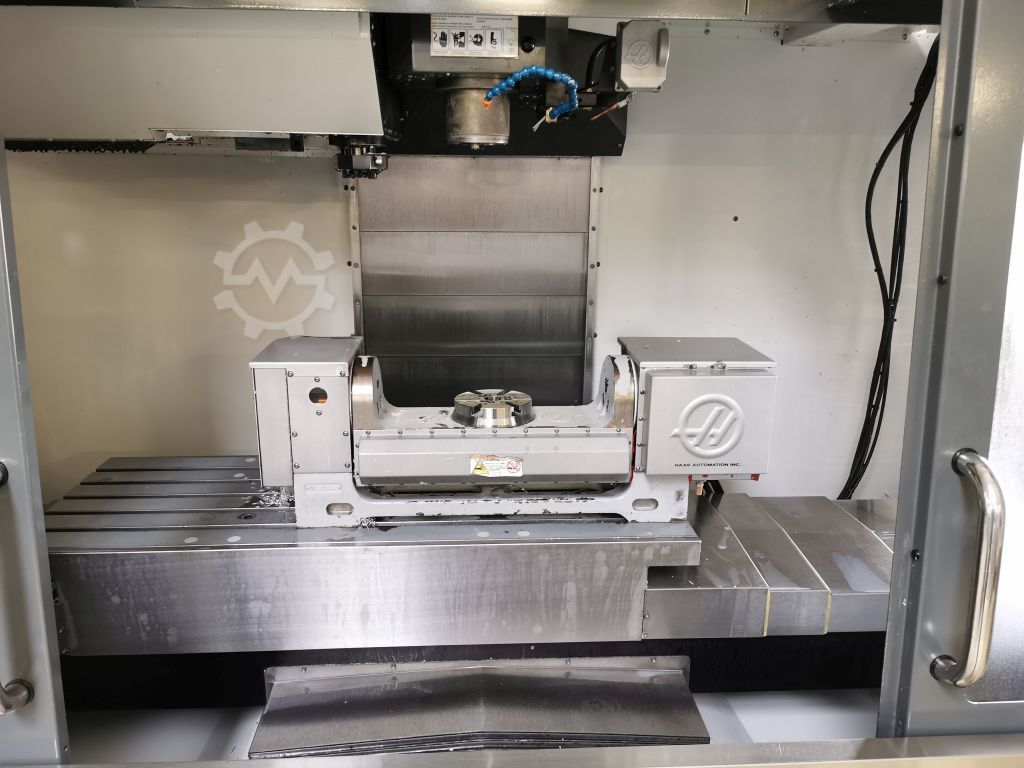

NC roundtable 3+2 HAAS mfg but the machine will be sold if requested without NC roundtable
The machine is in very good condition. Run very little. Only Alu parts have been machine with it.
Machine Data | |||||||||||||||
| Machine ID | WM227539 | ||||||||||||||
| Machine type | 5 axis vertical machining center | ||||||||||||||
| Manufacturer | Haas Automation | ||||||||||||||
| Model | VF4SS | ||||||||||||||
| Year of manufacture | 2012 | ||||||||||||||
| Condition | excellent (used) | Price and Location | |||||||||||||
| Location | Szekesfehervar , Hungary | ||||||||||||||
