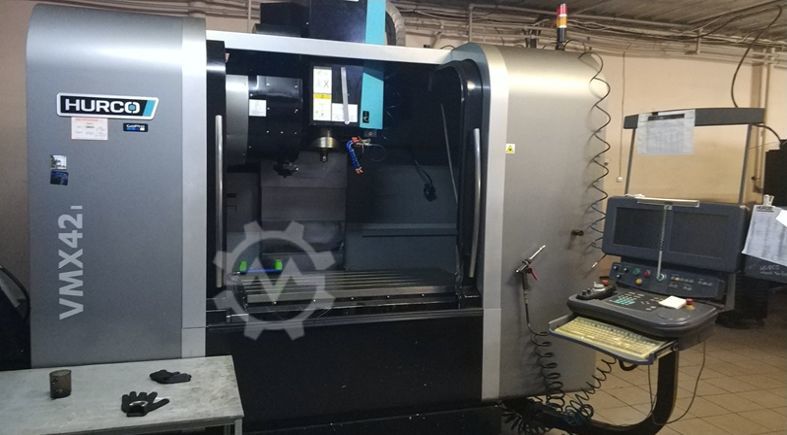

HURCO VMX42i CNC Milling Machine

Posted By :
Comments : 0

CNC Milling Machine VMX42i + Kitagawa 4th Axis 320 mm + Laser tool and part probing TABLE Spindle nose – table (mm) ….. 152 – 762 Table working surface W x D (mm) ….. 1.270 x 610 T -Slots (DIN 650) ….. 5 x 18 H8 x 100 Load max. (uniform distribution) (kg) ….. 1.360 TRAVELS X-Axis (mm) ….. 1.067 Y-Axis (mm) ….. 610 Z-Axis (mm) ….. 610 SPINDLE Spindle Taper (DIN 69871 A) ….. SK40 Spindle Speed max. (rpm) ….. 12,000 Spindle Power (kW) ….. 18 Spindle Torque max. (Nm) ….. 237 FEEDRATES Rapid Traverse X / Y / Z-Axis (m / min) ….. 38/38/32 AUTOMATIC TOOL CHANGER Number of stations ….. 30/40 Tool diameter max. (mm) ….. 80/76 Tool length max. (mm) ….. 300 Tool weight max. (kg) ….. 7 FURTHER DETAILS Machine weight (kg) ….. 6.809 CNC Milling machine VMX42i + Kitagawa 4th Axis 320 mm + Laser gauge of tools and parts TABLE Spindle end – table (mm) .. … 152 – 762 Work surface of table W x D (mm) ….. 1.270 x 610 T-slots (DIN 650) ….. 5 x 18 H8 x 100 Max. load (even) (Kg) ….. 1.360 MOVEMENTS X-axis (mm) ….. 1.067 Y-axis (mm) ….. 610 Z-axis (mm) ….. 610 SPINDLE Spindle cone (DIN 69871 A) ….. SK40 Spindle speed max. (rpm) ….. 12.000 Spindle power (kW) ….. 18 Spindle torque, max. (Nm) ….. 237 FEED Fast travel on X / Y / Z axes (m / min) ….. 38/38/32 AUTOMATIC CHANGE DEVICE No. of sockets ….. 30/40 Max. tool diameter (mm) ….. 80/76 Max. e
Bif00t8gn2
The advertisement was translated automatically and some translation errors may have occurred.

Machine Data

Machine IDWM231157
HURCO VMX42i
Machine typeCNC Milling Machine
ManufacturerHURCO
ModelVMX42i
Year of manufacture2013
Conditionexcellent (used)

Price and Location

Price94.6000
Currency
LocationDnipro , Ukraine

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163

Seller's other machines (14092)
