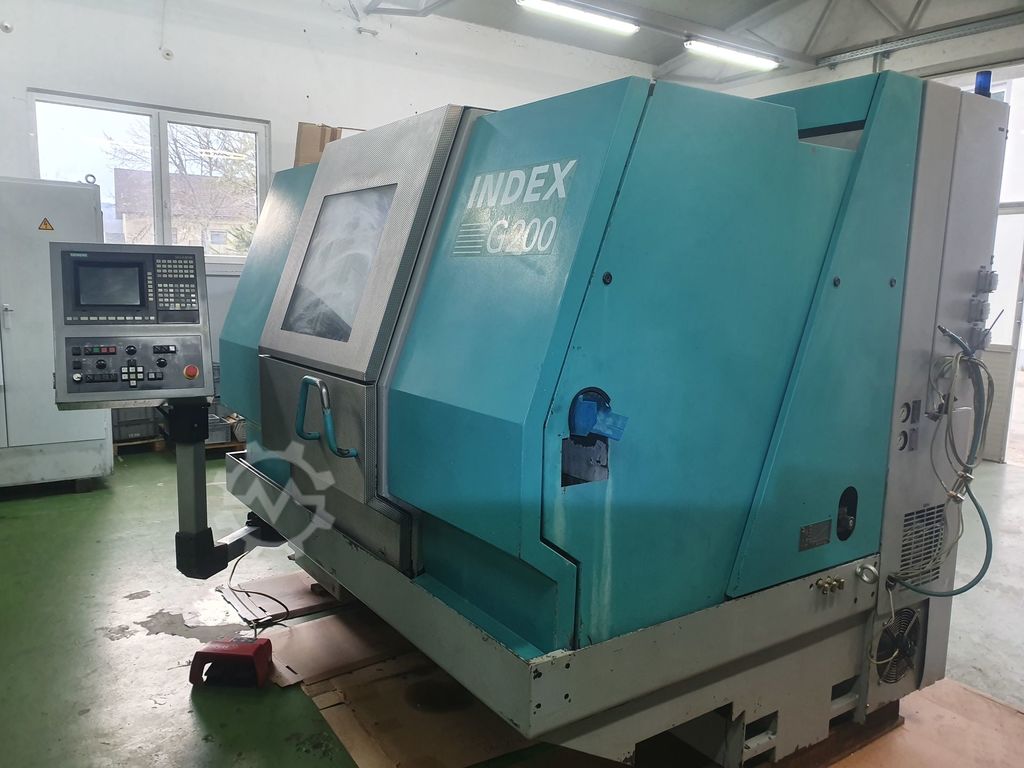

INDEX G 200 Y Achse CNC lathe

Tags : , , , ,
Posted By :
Comments : 0

CNC LATHE
Nwtrr
INDEX G 200 / Y-axis
Year of manufacture 1995
Control Siemens 840C
Technical data
turning length 400mm
Swing diameter max. 420mm
Working spindle 1
C axis and Y axis
spindle passage 65mm
Speed max. 5.000min-1
Power at 100% ED 20KW
Torque at 100% ED 95Nm
Chuck diameter max. 160mm

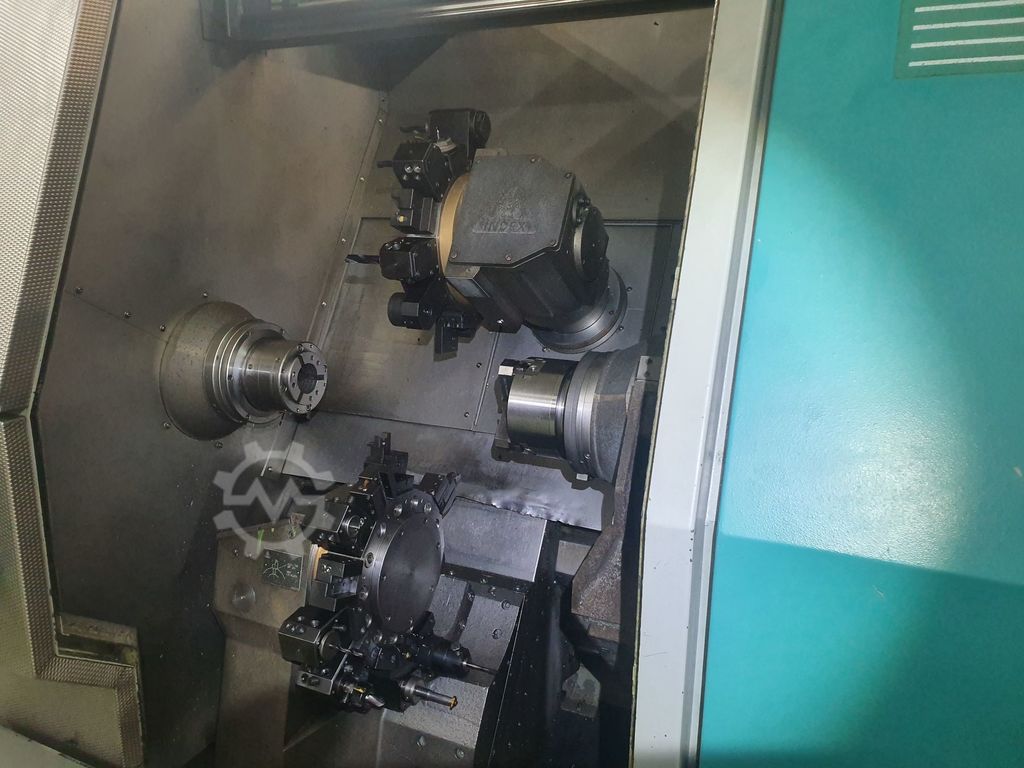

Tool turret 1 14

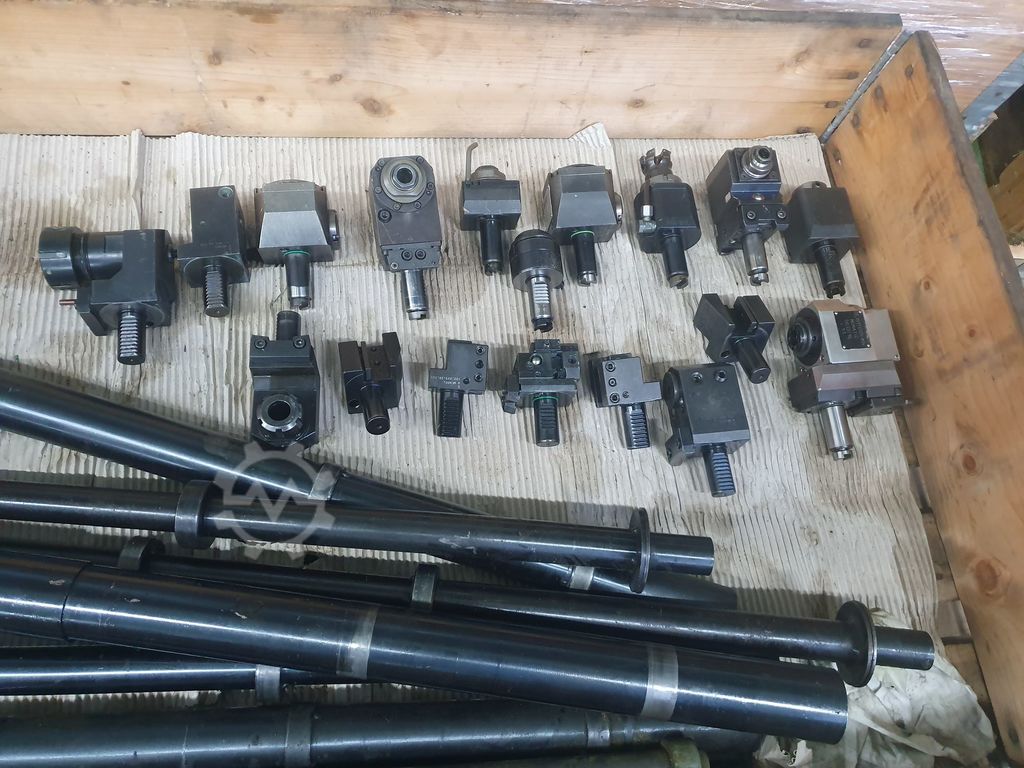

Driven tools Revolver 1 14
Work spindle 2
C-axis
spindle passage 60mm
Speed max. 5.000min-1
Tool turret 2 14
Driven tools Revolver 2 14
Dimensions
L x W x H 4705 x 1910 x 2050mm
The advertisement was translated automatically and some translation errors may have occurred.

Machine Data

Machine IDWM226742
INDEX G 200 / Y-Achse
Machine typeCNC lathe
ManufacturerINDEX
ModelG 200 / Y-Achse
Year of manufacture1995
Conditionexcellent (used)

Price and Location

LocationSTANJEL , Slovenia

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
