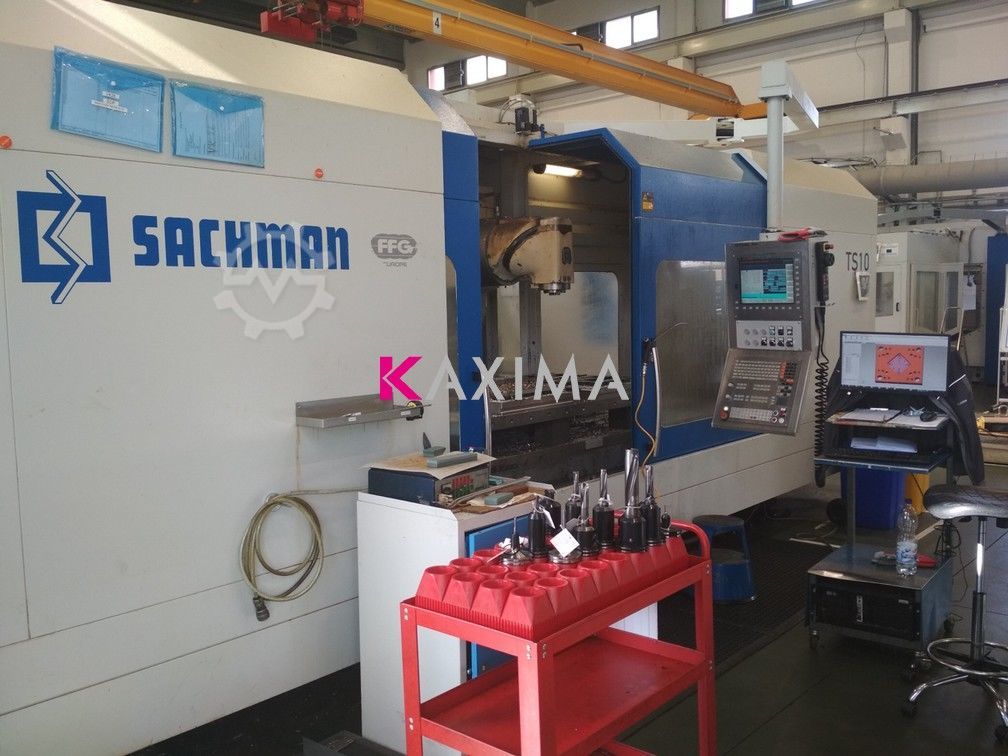

JOBS Automazione S p A TS 10 Horizontal five axis machining center

Posted By :
Comments : 0

Travel:
X = 2500mm
Y = 1210mm
Z = 1000mm
Measuring: Axes with direct measuring by Heidenhain rulers
F max: 25m / min, all linear axes
Table dimensions: 2700x800mm
Maximum table load: 3000kg (4000kg with distributed load)

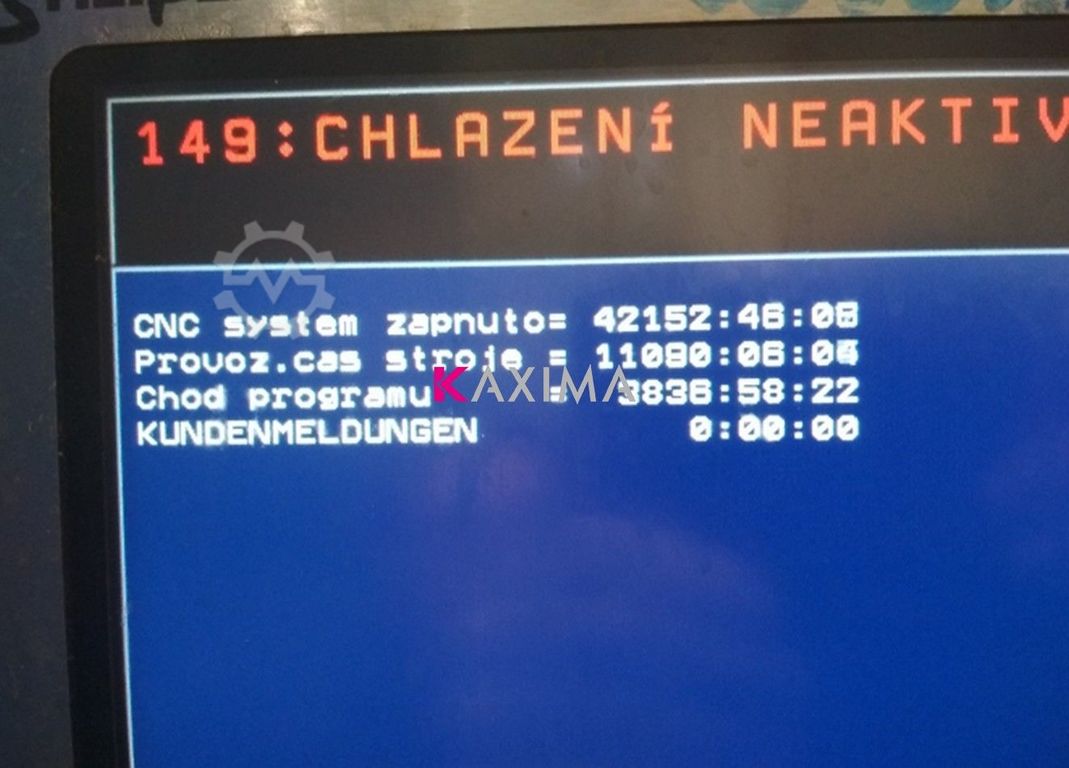

Control system: Heidenhain iTNC530 HSCI

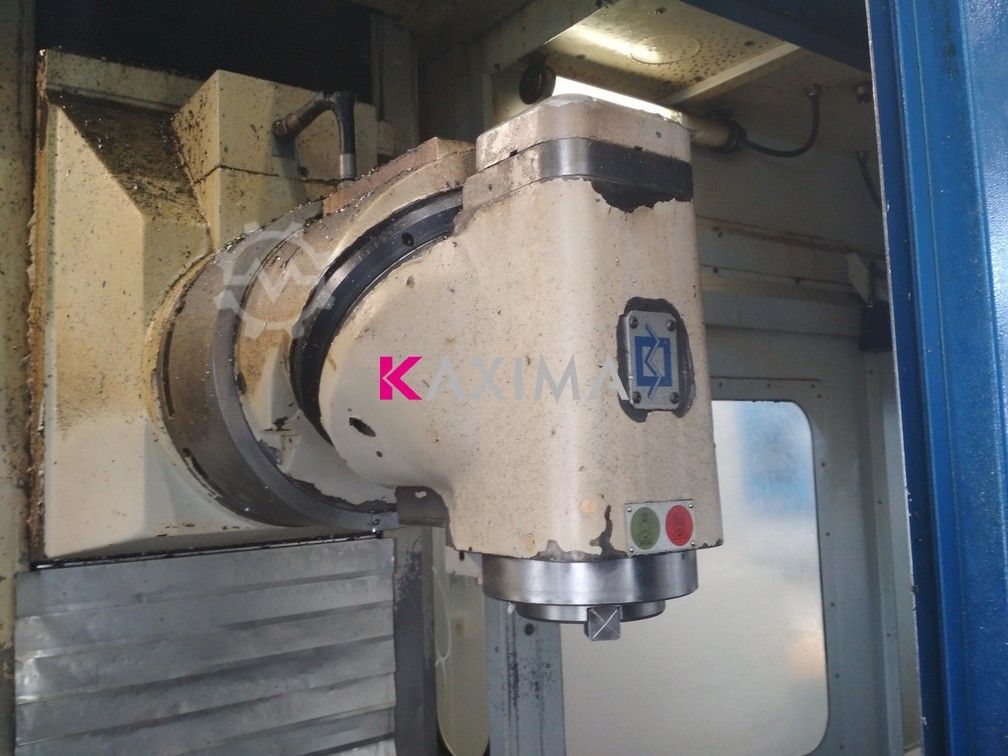

Milling head: Cosmo 2, with indexed positioning 3 degrees on the A axis, 1 degree on the B axis
Spindle: 2-5000 rpm, 2-speed ZF gearbox, 28kW (reinforced engine on customer’s request)
Clamping cone: SK50
Tool cooling: external and center of water / air spindle, coolant volume 650l, filtration.
Fzzrp2x
Automatic tool changer: MRT40 – 40 positions, chain, change in vertical spindle position.

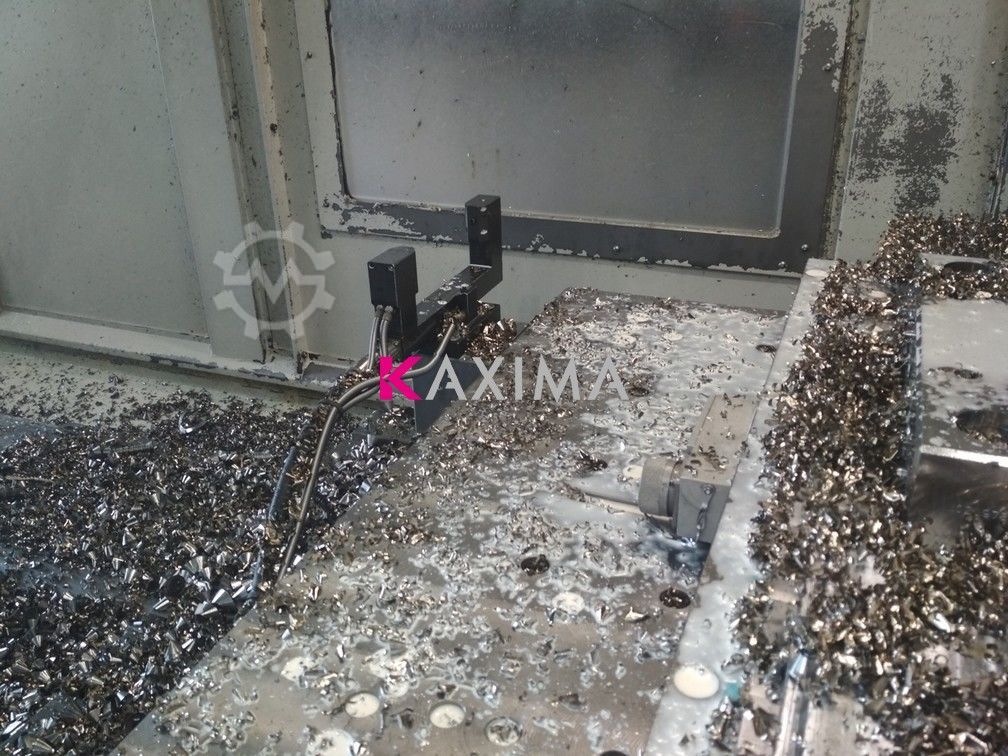

Workpiece probe: Yes
Tool Probe: Yes (can be removed)
Chip conveyor: yes, screw extractors

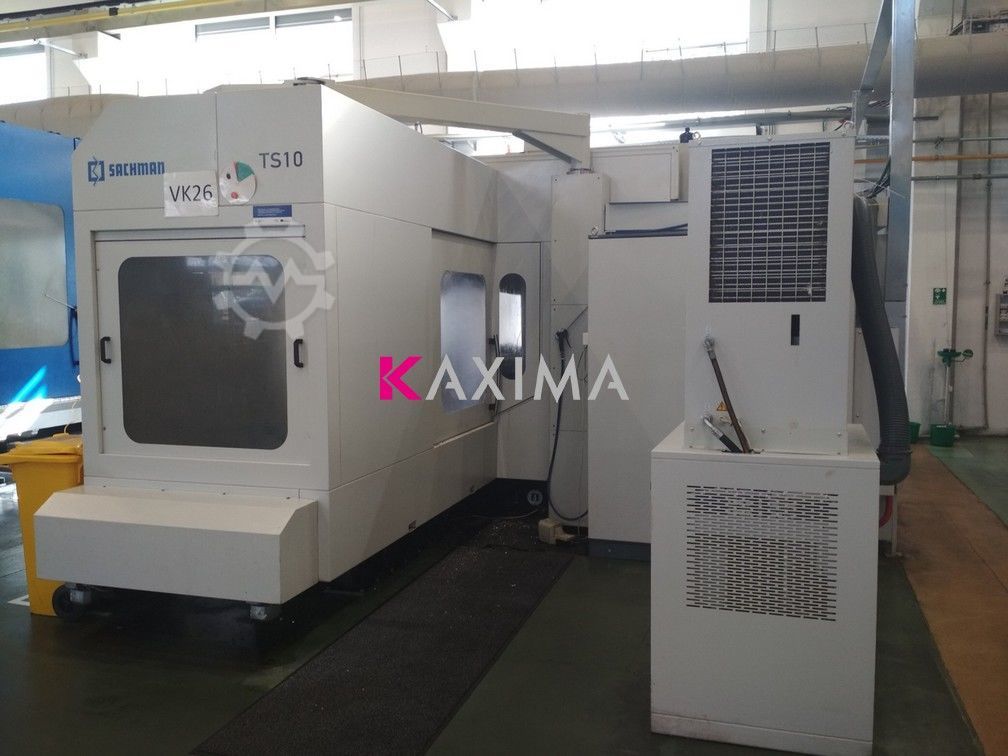

Other equipment: hand wheel HR410, foot pedal for tool clamping, electronic temperature compensation, the machine is fully boned according to CE, sliding doors from the front and rear, enclosure enclosure according to IP54, air-conditioned.
Machine condition: Excellent, under power, possibility of demonstration in operation.

Machine Data

Machine IDWM230575
JOBS Automazione S.p.A. TS 10
Machine typeHorizontal five-axis machining center
ManufacturerJOBS Automazione S.p.A.
ModelTS 10
Year of manufacture2014
Conditionexcellent (used)

Price and Location

LocationBrno , Czech Republic

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
