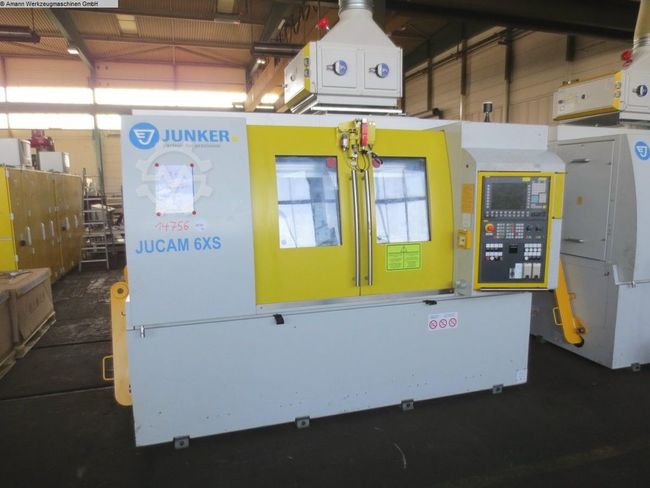

JUNKER JUCAM 6XS 12 Camshaft Grinding Machine
workpiece length 100 mm
swing diameter 80 mm
number of spindles 2
Control SIN840D
workpiece weight 2,00 kg
centre height 170 mm
grinding wheel diameter 100 mm
grinding wheel hole diameter 32
grinding wheel width max. 20
peripheral speed max. 125 m/sec
Derjlfjl
passage of steadyrest 45 – 60 mm
total power requirement 75,00 kW
weight of the machine ca. 25,00 t
dimensions of the machine ca. 5,00 x 3,50 x H3,50 m

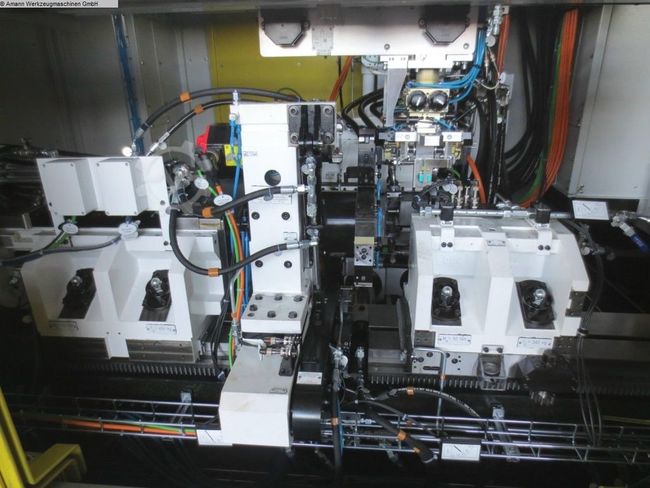

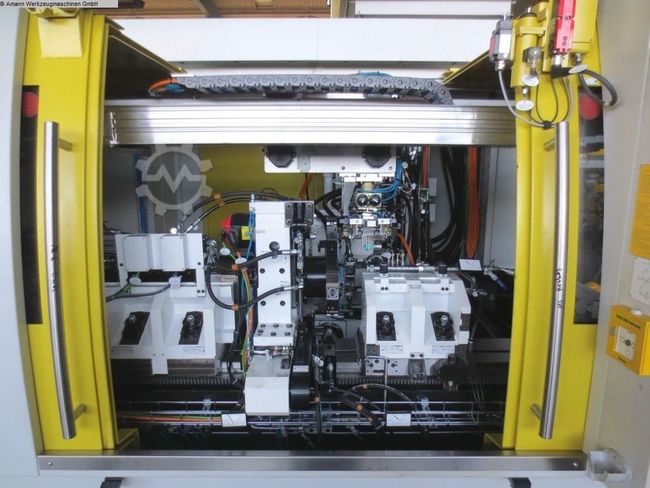

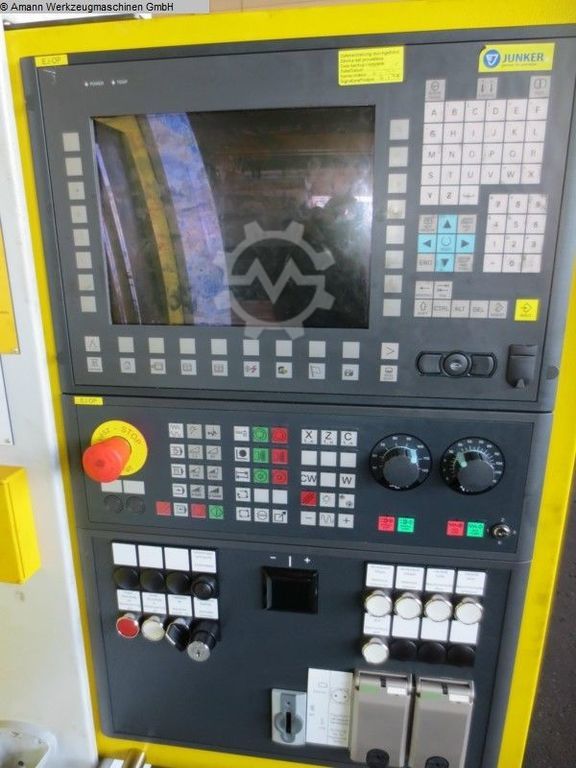

Cam grinding machine with SIEMENS SINUMERIK 840D control;
loading/unloading unit, CO2 extinguishing system; CBN grinding wheel;

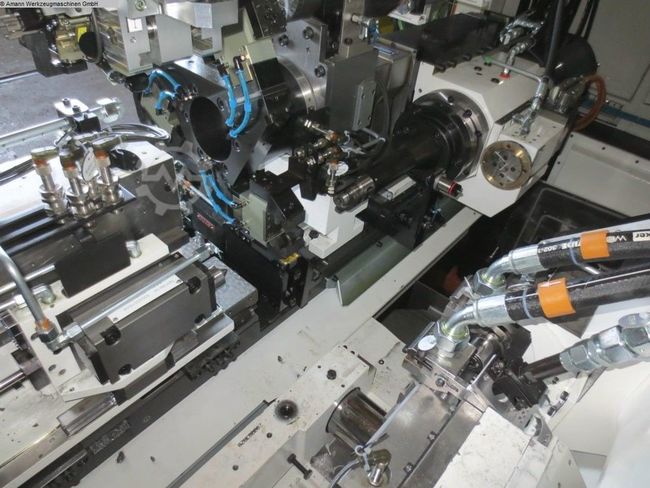

tailstock; steady; diamond wheel dresser mounted on the dressing spindle;
Wheelhead variant 12 (two grinding spindles can be moved separately).
Machine Data | |||||||||||||||
Machine ID | WM233842 | ||||||||||||||
Machine type | Camshaft Grinding Machine | ||||||||||||||
Manufacturer | JUNKER | ||||||||||||||
Model | JUCAM 6XS /12 | ||||||||||||||
Year of manufacture | 2015 | ||||||||||||||
Condition | used | Price and Location | |||||||||||||
Location | Lager | ||||||||||||||
