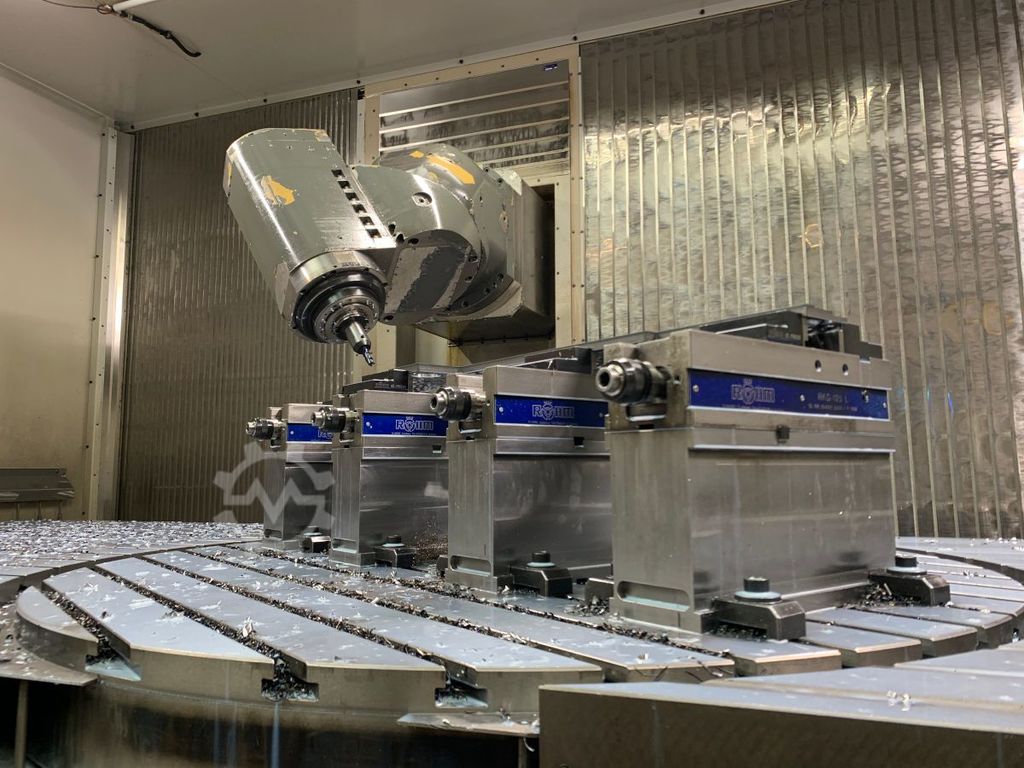

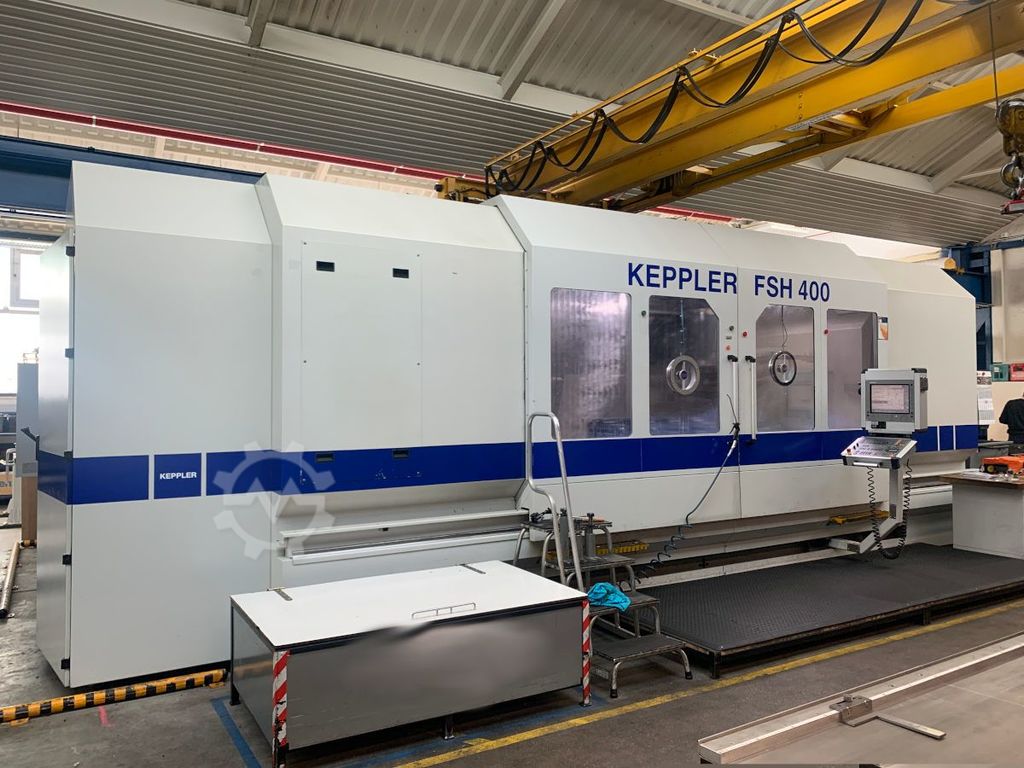

KEPPLER FSH 400 5 Axis milling machine

Posted By :
Comments : 0

Machine type: 5-Axis milling machine
Manufacturer: Keppler
Model: FSH 400
Year of construction: 2011

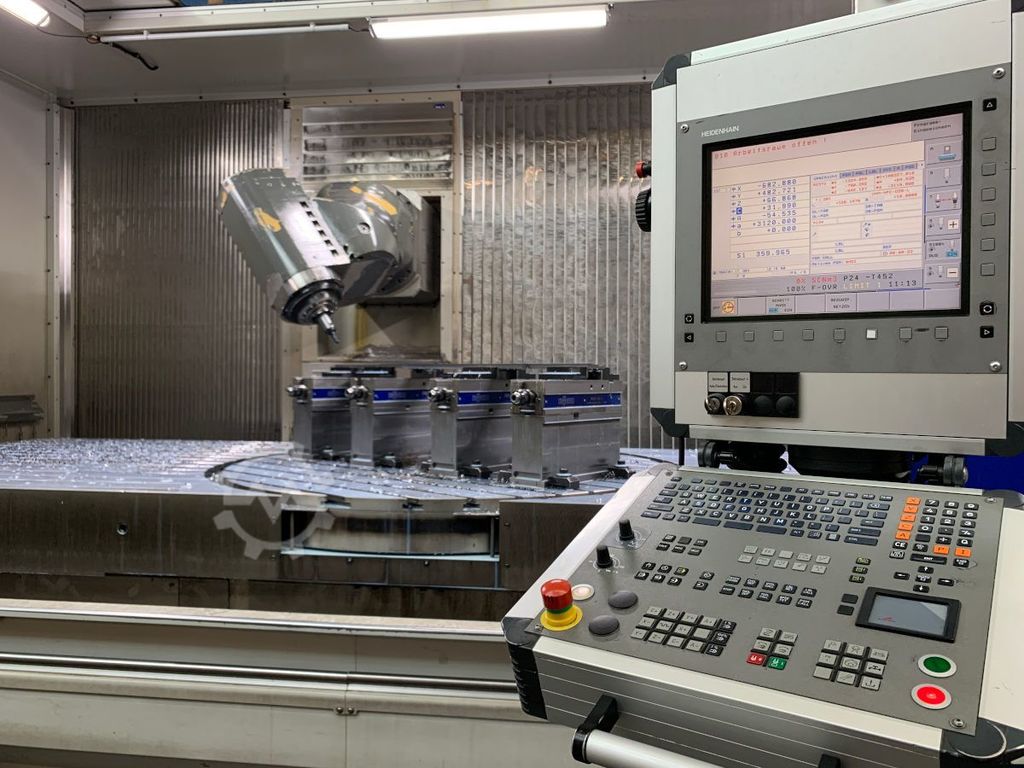

Control System: Heidenhain iTNC 530
Movement X/Y/Z [mm]: 4.000/1.200/800
Spindle speed: 7.000 rpm

Spindle:
Technology: Direct drive
Speed: 7.000 U/min
Power max.: ca. 55 kW
Torque max.: ca. 525 Nm
Taper: SK 50

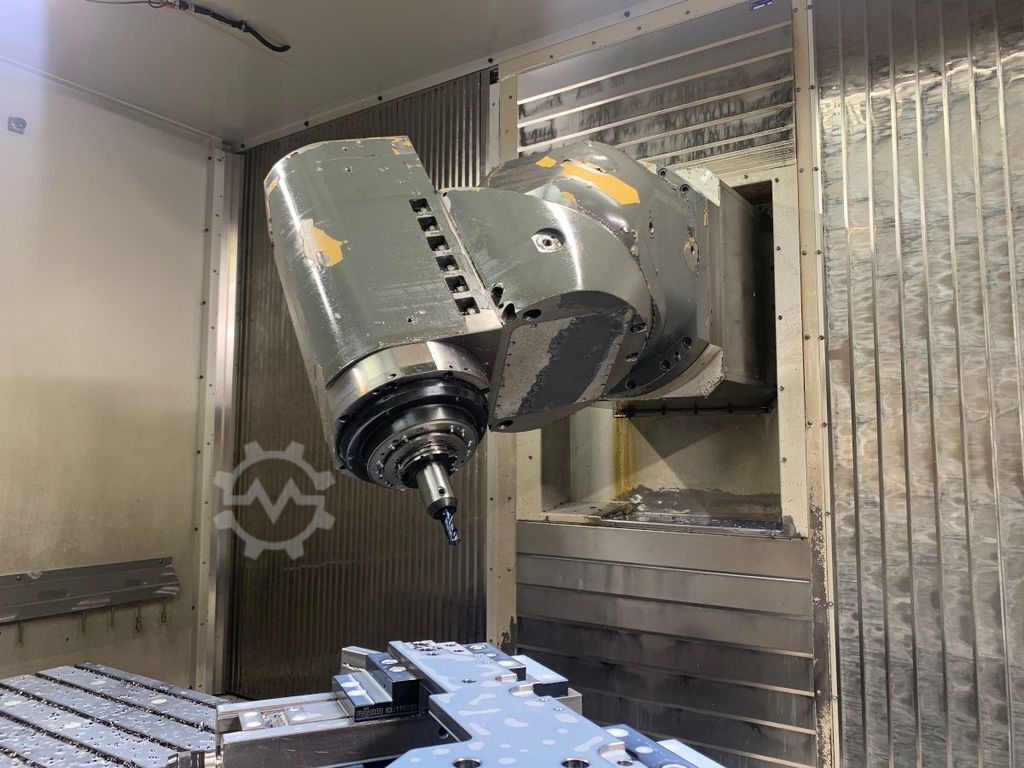

NC-Swivel Head
A-Axis: -181° / +10°
Indexing: 0,001°
Clamping force: ca. 4.000 Nm
Positioning sensor: Direct scale

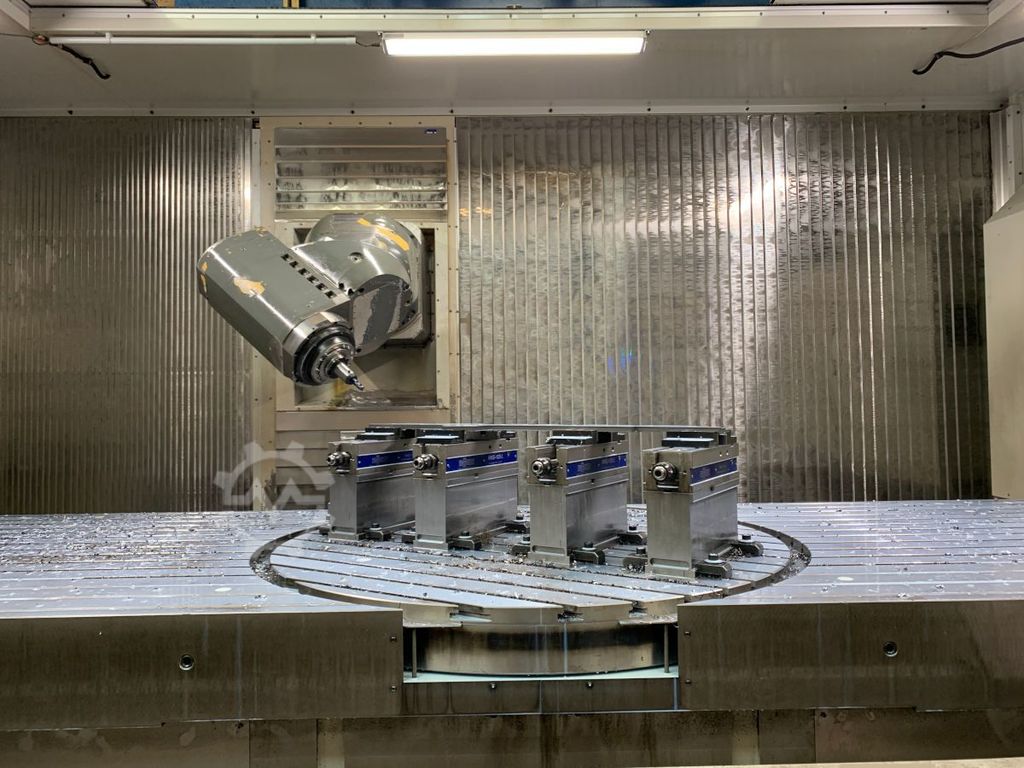

NC-Rotary table:
C-Axis: 360°
Load capacity max.: ca. 3.500 kg
Clamping surface: 1.500 mm
Drive: Direct drive
Clamping force max.: ca. 10.000 Nm
Positioning sensor: Direct scale

Rigid table:
Clamping surface incl rotoary table: 4.250 x 1.500 mm
Load capacitiy max.: ca. 5.000 kg
T-Slots: 15 x 18H7

Tool magazin:
Tool magazin: 60 stations
Tool diameter max.: ca. 125 (200) mm
Tool lenght max.: ca. 400 mm
Tool weight max.: ca. 25 kg (inkl. Aufnahme)

Equipment / Add-ons:
Positioning sensor: Direct scale in all Axis
Chip managment: Chip conveyor
Coolant managment: Coolant through spindle
Workpiece measurement: Touch probe
Oil mist seperator: 2x (left/right)
Bicoewepjf
Additional equipment: 2x Rotoclear, Handwheel, Spray gun

Machine Data

Machine IDWM230125
KEPPLER FSH 400
Machine type5-Axis milling machine
ManufacturerKEPPLER
ModelFSH 400
Year of manufacture2011
Conditionexcellent (used)

Price and Location

LocationOIching , Germany
