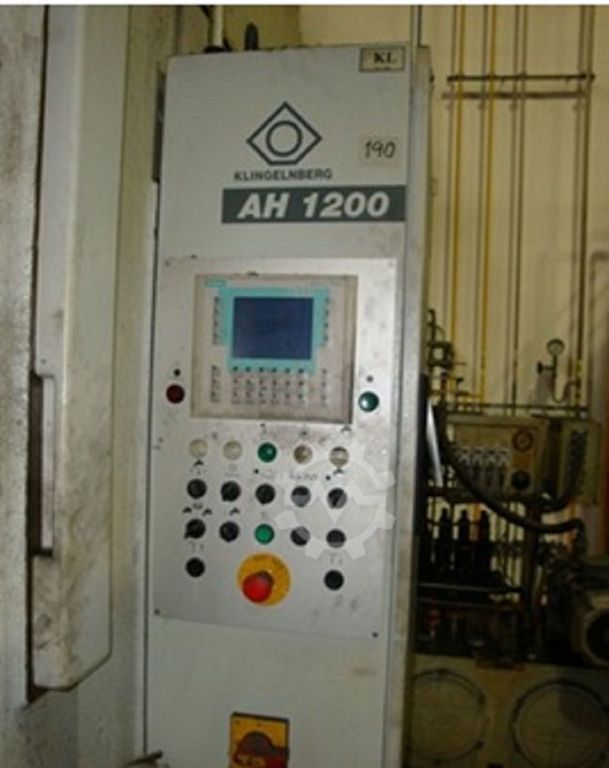

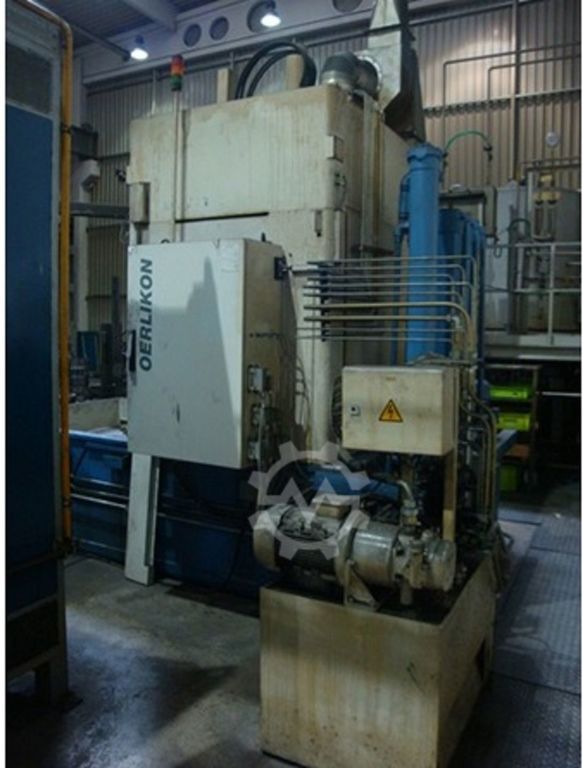

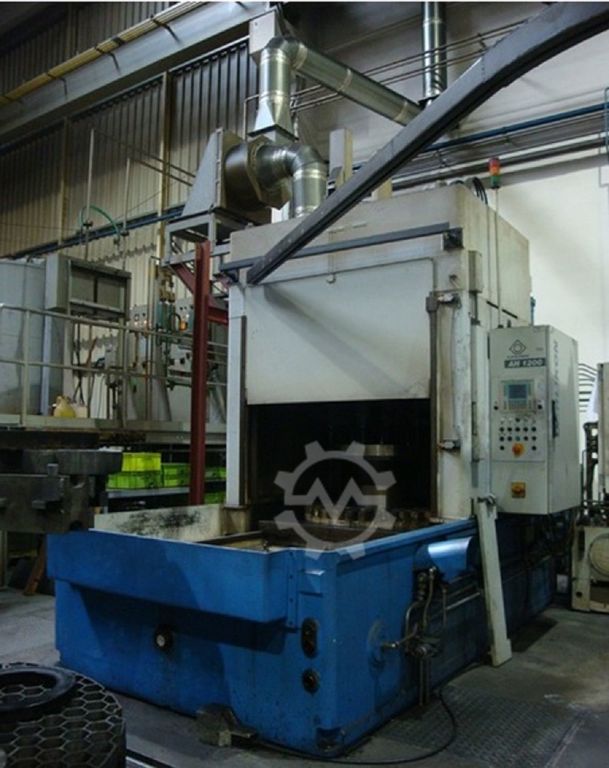

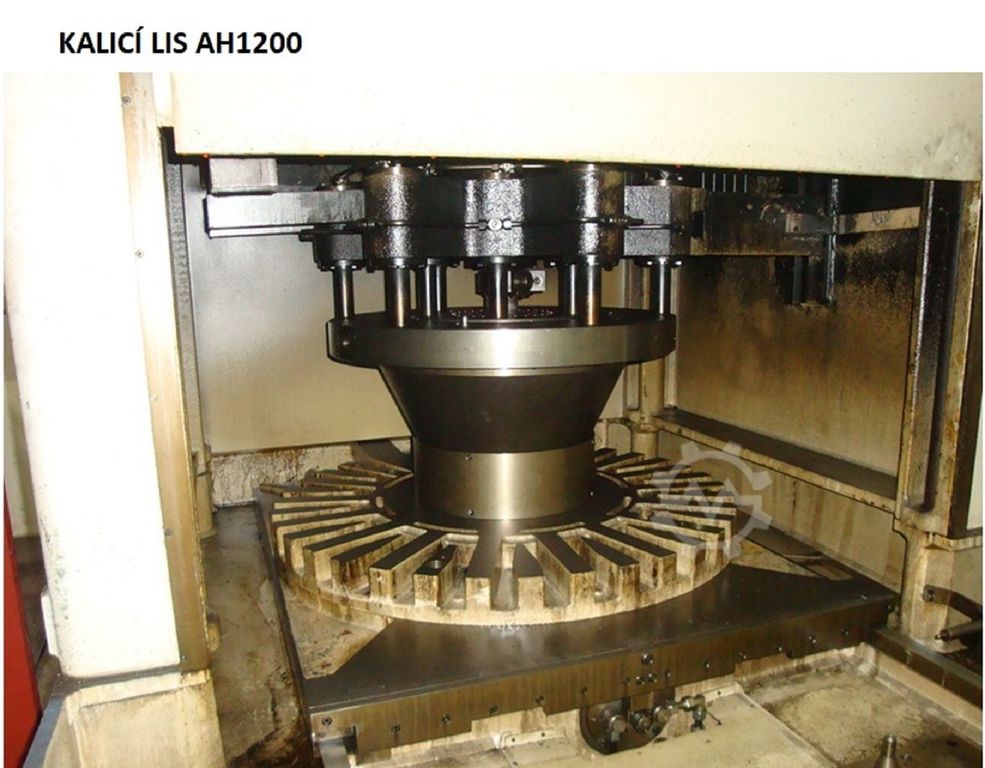

KLINGELNBERG AH 1200 Hydraulic quenching presse

Posted By :
Comments : 0

Max. workpiece diameter: 1250 mm
Max. distance between mounting surfaces of lower and upper die: 900 mm
Max. stroke of upper approx.: 600
Hardening capacity of machine per hour approx.: 1200 kg/h
Workpiece height: 250 mm
Clamping force: Centering pin: 80 KN
Clamping ring: 210 KN
Dimensions of the machine without accessories:
4250x3250x3700 mm
Machine weight without accessories: 14.000 kg
Accessories:

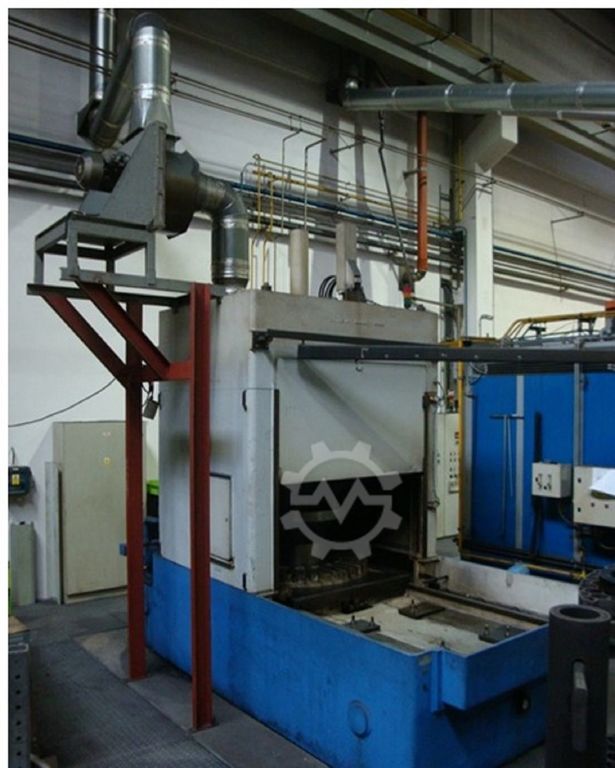

Electric oven with controlled atmosphere:
REALISTIC CAE 13.15.8 / 10
Workspace: 1300x1400x800 mm
Working temperature: 950 ° C
Power input: 78 KW
Bmf8nsty
Dimensions of furnace: 3080x2840x2050 mm
Furnace weight: 8600 kg
Ventilator
Flame curtain
Oxygen probe ECOSOND
Manipulator:
SLAVATA TRADE EMK 1000
Travel distances:
X: 13500 mm
Y: 2040 mm
Z: 675 mm
Load capacity: 600/1000 kg
Material dimensions: 500 – 1200 mm
2 outer holders: 120×50 mm
2 inner holders: 120×50 mm
Programmable positions
Power consumption: 5.5 kW
Dimensions of the manipulator: 3520x5100x2420 mm
Weight of the manipulator: 5345 kg

Machine Data

Machine IDWM231043
KLINGELNBERG AH 1200
Machine typeHydraulic quenching presse
ManufacturerKLINGELNBERG
ModelAH 1200
Year of manufacture2008
Conditiongood (used)

Price and Location

LocationBrno , Czech Republic

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
