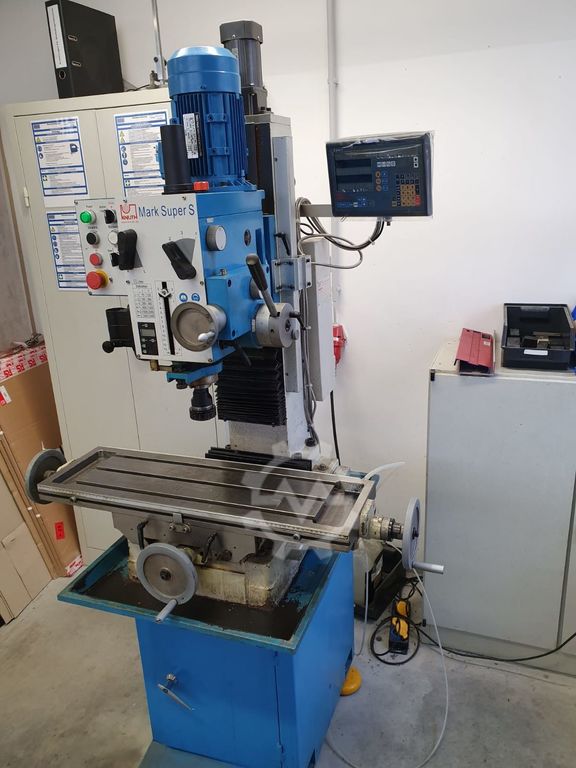

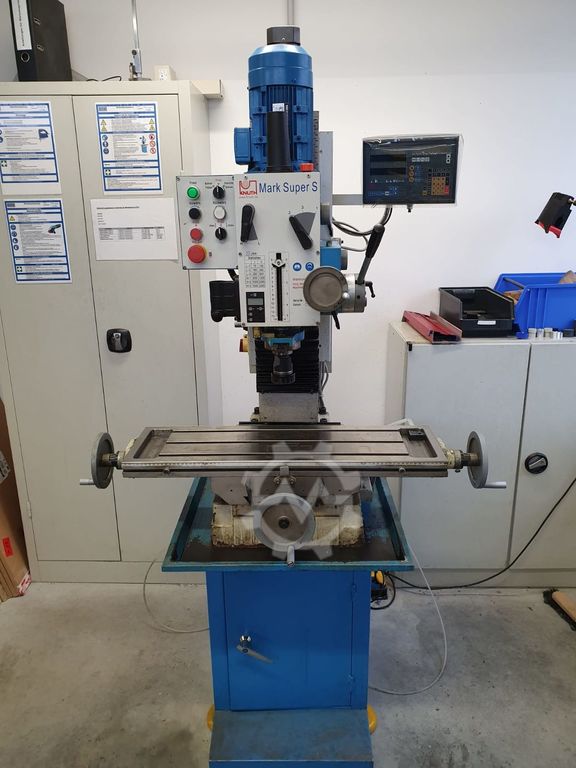

Knuth Mark Super S Drilling milling machine

Posted By :
Comments : 0

Workspace
X-axis travel 560 mm
Y-axis travel 190 mm
Table dimensions 800×240 mm
Drilling capacity, steel 32 mm
Bhsoeir29e
Drilling performance, cast 45 mm
End mill 32 mm
Height stroke head 350 mm
Speeds (12) 75 – 3200 min-1
Distance spindle nose – table (max.) 450 mm
T-slots, number 3 pieces
T-slots, width 14 mm
T-slots, spacing 80 mm
Vertical milling
Spindle mount MK 4 / MT 4
Quill stroke 120 mm
Quill diameter 75 mm
Projection 258 mm
Swivel range head ± 90 °
driving power
Motor power main drive (cont./30 min) 1.5 / 1.1 kW
400 V supply voltage
mass and weight
Dimensions 1120x960x1980 mm
Weight 350 kg

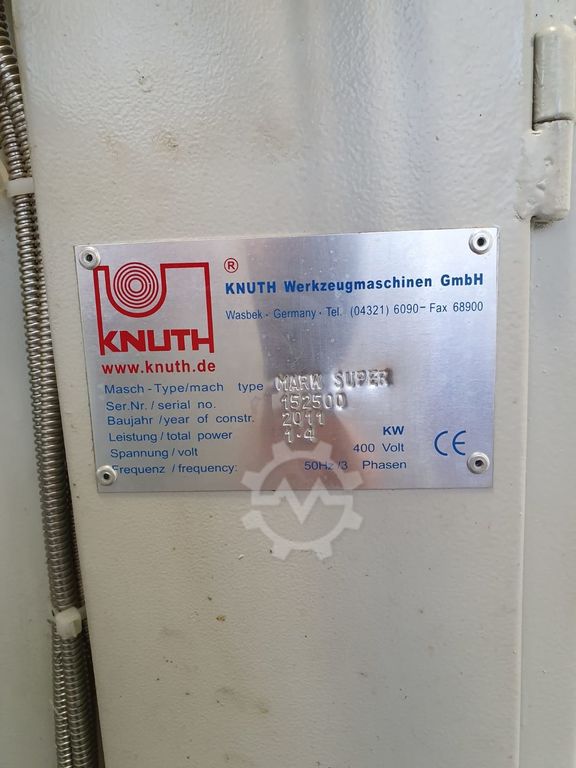

Machine Data

Machine IDWM228681
Knuth Mark Super S
Machine typeDrilling-milling machine
ManufacturerKnuth
ModelMark Super S
Year of manufacture2011
Conditionexcellent (used)

Price and Location

LocationEnnepetal , Germany

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163

Seller's other machines (14057)
