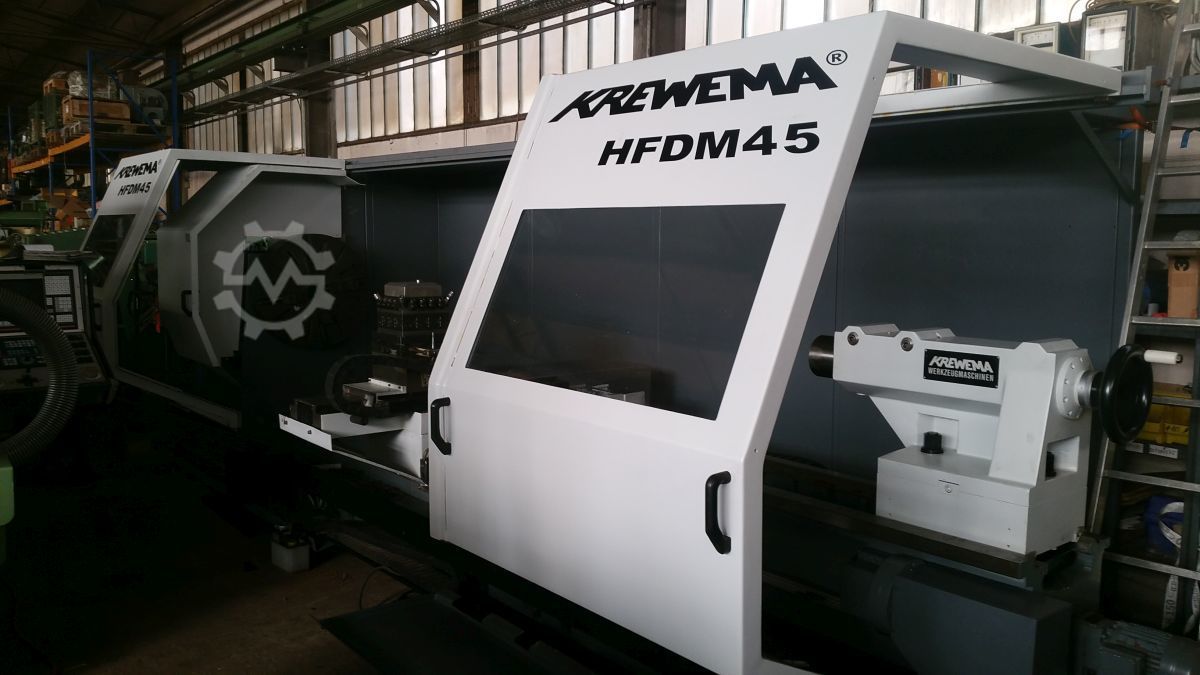

Krewema Heavy lathe

Posted By :
Comments : 0

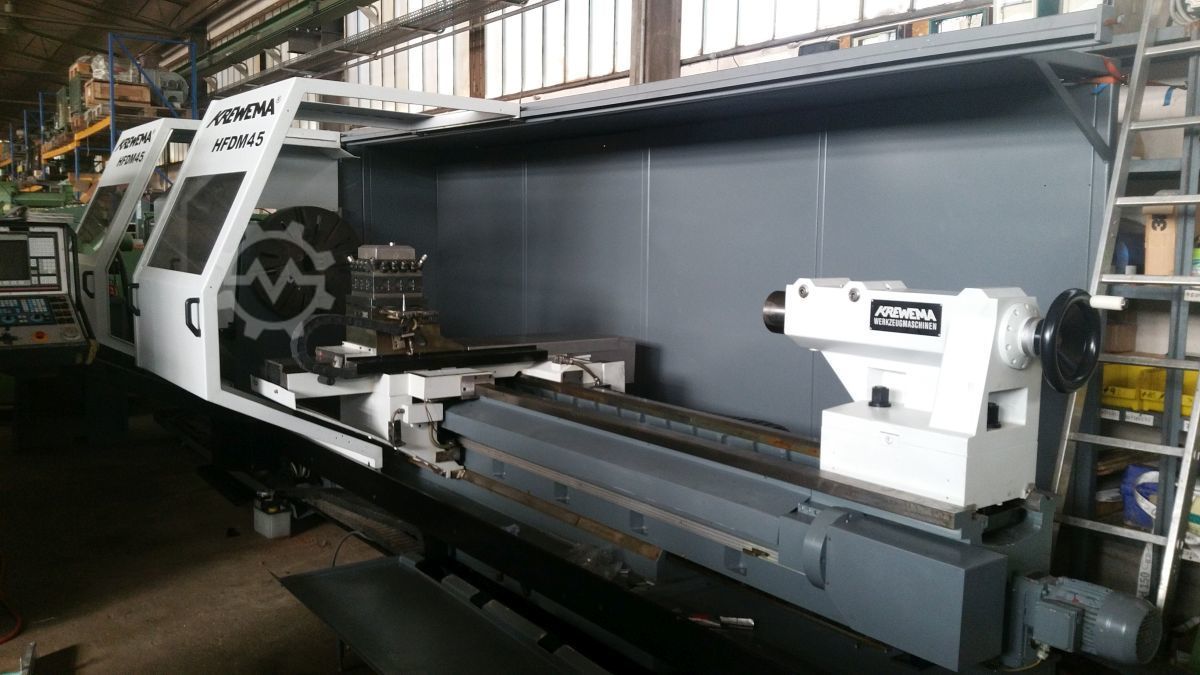

KREWEMA half frontal lathe
with moving bed
Fagor cycle control 8050 year 1998

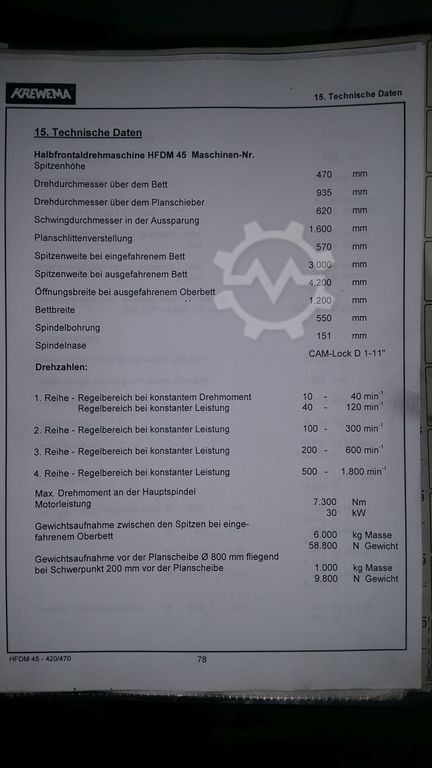

Tip height 470 mm
Turning diameter over bed 935 mm
Turning diameter over plan slide 620 mm
Swing diameter in the recess 1600 mm
Peak width at retracted bed 3.000 mm
Peak width at raised bed 420 mm
Raised bed opening width 1200 mm
Bed width 550 mm
Spindle bore 151 mm
Spindle head: 11 “camlock
Spindle nose CAM-lock D-11 ”
4 gear stages 10-1800 rpm
Maximum torque at main spindle 7300 NM
Motor kW 30
M3r7t
Weight recording between the peaks of 6000 kg

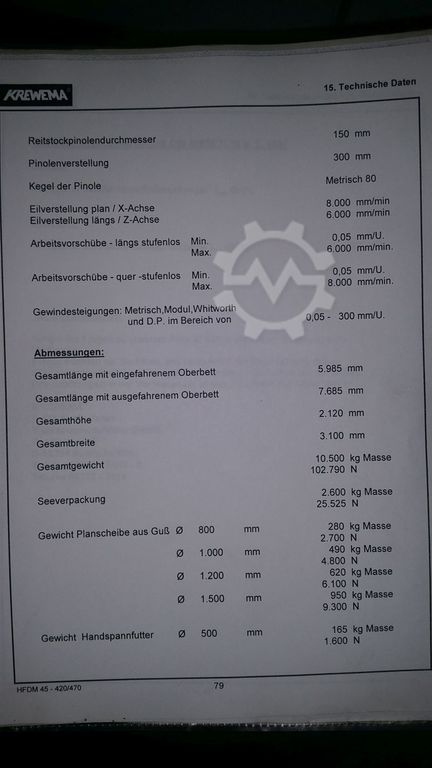

Tailstock Quill diameter 150 mm
Quill adjustment 300 mm
Cone of tailstock 80 metric
Rapid traverse x 8000 mm / min, Z-axis 6000 mm / min
Work feeds 0.05-8000 mm / min
Thread pitches 0.05 300 mm / Rev

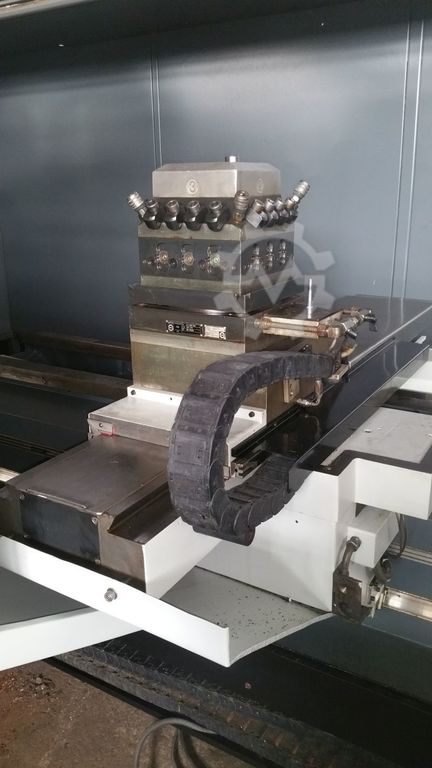

4-Sauter-revolver
Preparation for extraction
Machine dimensions L/W/H: approx. 7,400 x 3,100 x 2300 mm
Weight 10500 kg

Spindle bearings replaced in x axis (INA 30100).
The advertisement was translated automatically and some translation errors may have occurred.

Machine Data

Machine IDWM227864
Krewema
Machine typeHeavy lathe
ManufacturerKrewema
Year of manufacture1998
Conditiongood (used)

Price and Location

Price53.9000
Currency

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
