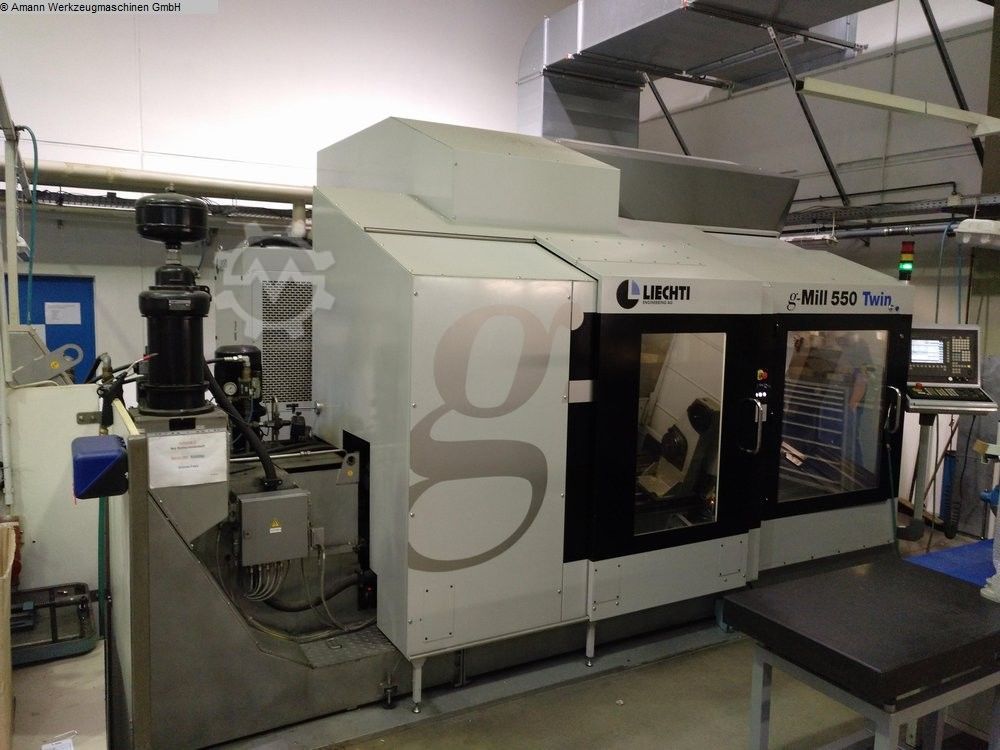

LIECHTI G Mill 550 Twin Turbine Blade Milling Machine
number of spindles 15.000
workpiece length max. 475 mm

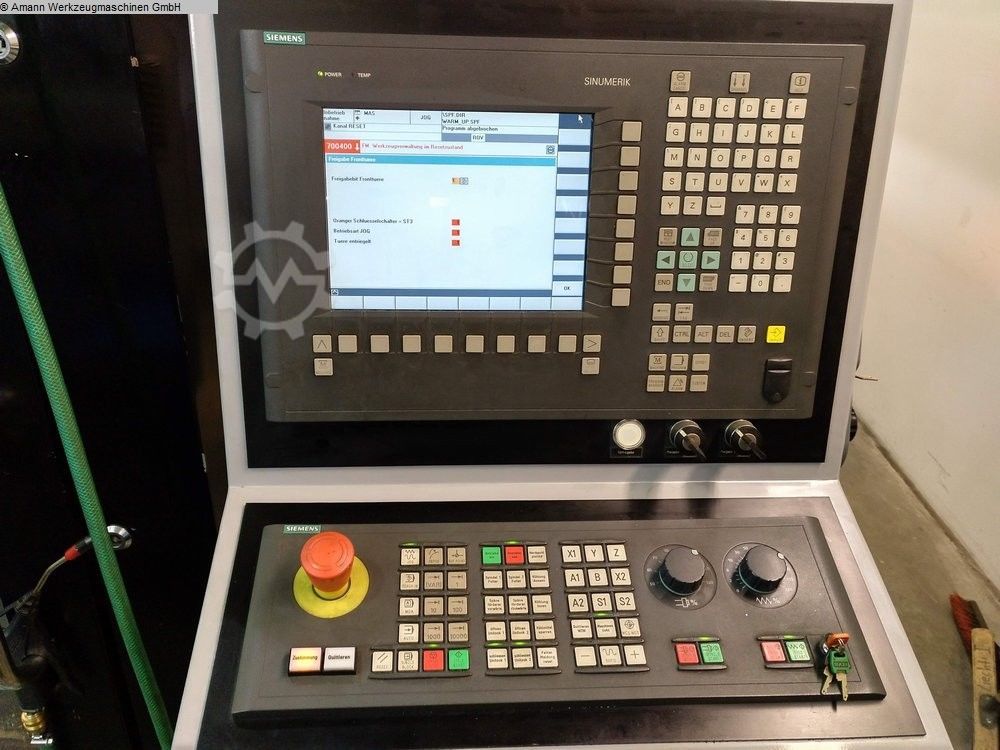

Control 840 D

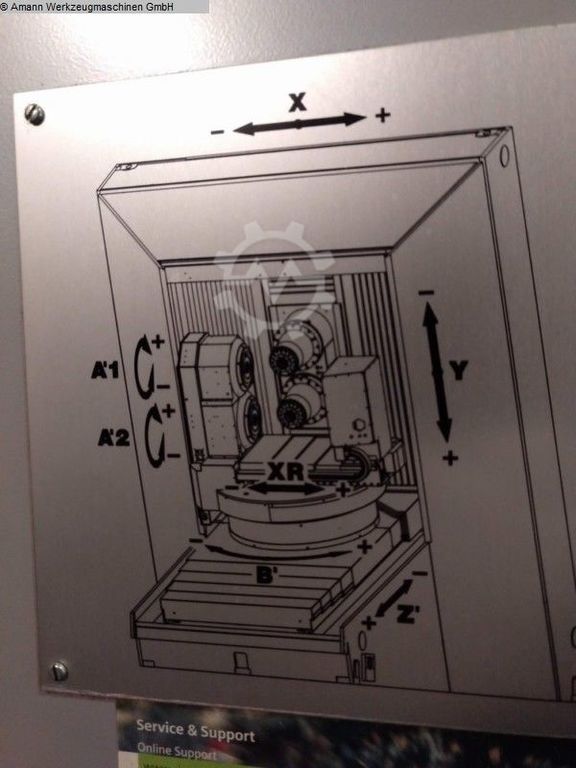

x-travel +/- 400 mm
y-travel +165 / -205 mm
z-travel +50 / +650 mm
A – axis 360 °
B – axis +80 / – 260 °
feed X/Y/Z/-axis 0 – 30.000 mm/min
rapid traverse X/Y/Z 30 m/min
feed A-Axis 0-200 U/min
feed B-axis 0-40 U / min
table load capacity 200 KG
tool taper HSK 63
number of tools in the magazine 50
tool diameter 80 mm
wotkpiece diameter with 2 vacant positions 140 mm
tool length – max. 350 mm
weight of tools max. 10 kg
tool changing time 12 sec
total power requirement 140 kW
weight of the machine ca. 20 t
dimensions of the machine ca. m
5-axes machining center
für rough and smooth working processes
ICS 50 bar
especially for engine- and turbine blade industrie and
mold making and aironautical engineering
Cfn3hx39
drive of rotating axes via torque drives
the oblique structure allows unhindered removal of the chips
Machine Data | |||||||||||||||
Machine ID | WM233345 | ||||||||||||||
Machine type | Turbine Blade Milling Machine | ||||||||||||||
Manufacturer | LIECHTI | ||||||||||||||
Model | G Mill 550 Twin | ||||||||||||||
Year of manufacture | 2008 | ||||||||||||||
Condition | used | Price and Location | |||||||||||||
Location | Werk | ||||||||||||||
