LIECHTI Turbomill1200 Turbine Blade Milling Machine

Posted By :
Comments : 0

number of spindles 1
workpiece length 800 mm
centre height 240 mm

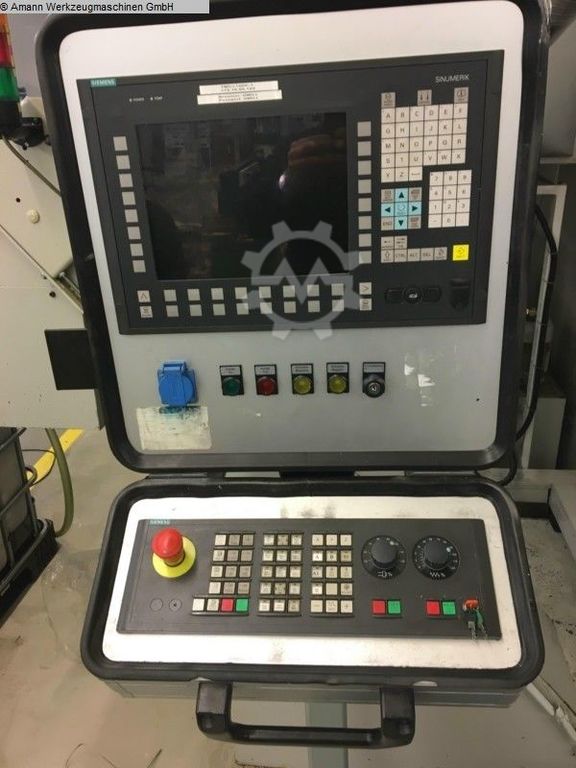

control SIN 840D
x-travel 2150 mm
y-axis 400 mm
z-axis 300 mm
B-axis +45 / -45 °
a-axis 360 x 0,001 mm
feed X/Y/Z-axis 0 – 30000 mm/min
rapid traverse X/Y/Z 30,00 m/min
feed A-axis 1 – 48000 °/min
feed B-axis 1 – 10080 U/min
spindle turning speed – stepless 0 – 24000 U/min
power capacity at 40 % load 30,00 kW
tool taper HSK-A63
no. of tools in the magazine 14 Stück
total power requirement 90,00 kW
Bhmjw8uaec
weight of the machine ca. 20,00 t
dimensions of the machine ca. 7,00 x 4,00 x H3,50 m

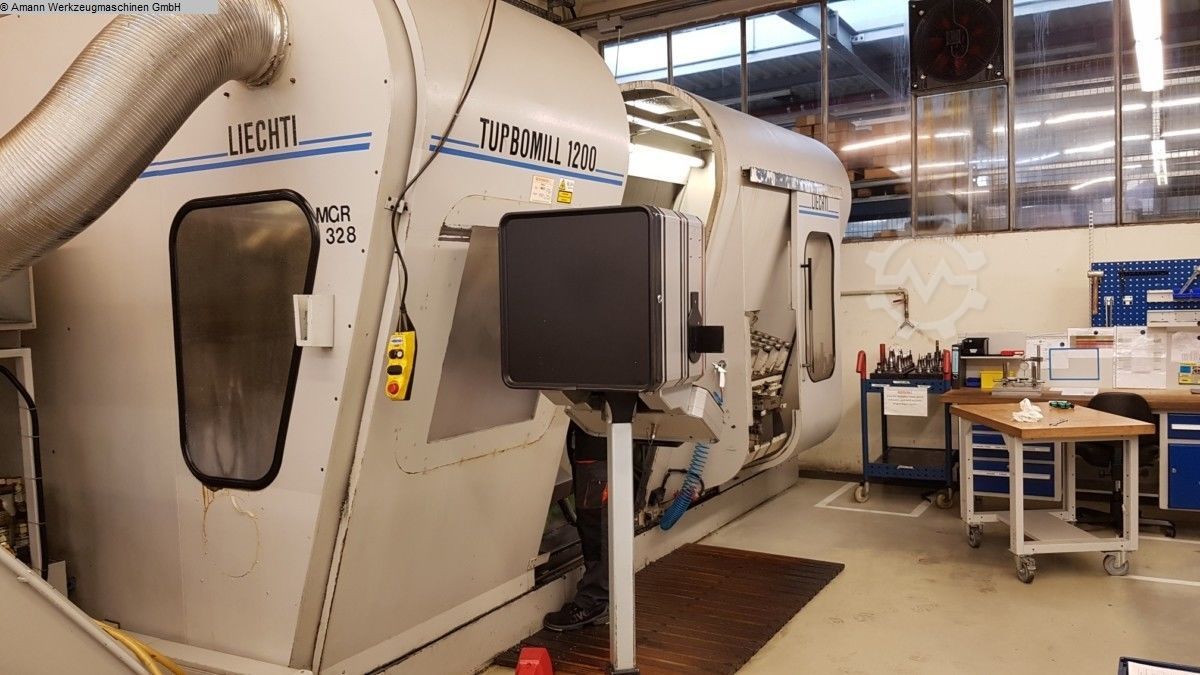

Turbine blade milling machine with control SIEMENS SIN 840D (retrofit 2007)

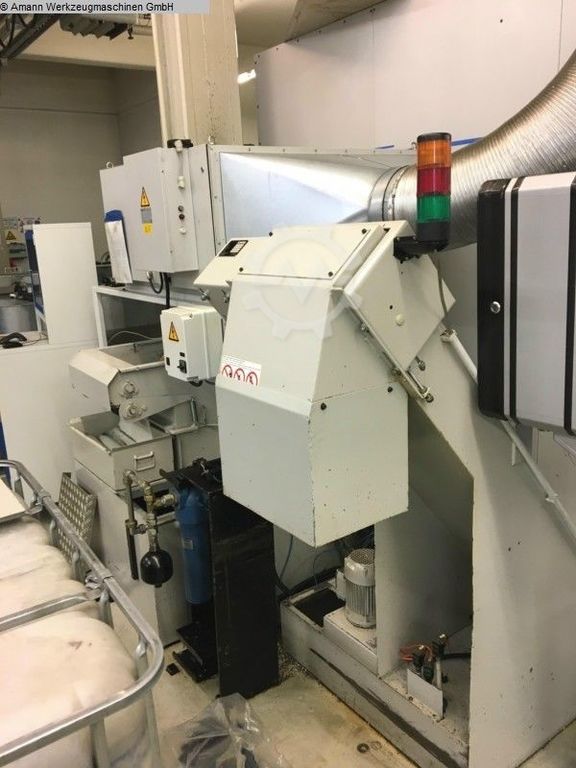

chip conveyor, coolant system, dust exhauster, spindle new in 2019

Machine Data

Machine IDWM230832
LIECHTI Turbomill1200
Machine typeTurbine Blade Milling Machine
ManufacturerLIECHTI
ModelTurbomill1200
Year of manufacture1995
Conditionused

Price and Location

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
