Maker: Magnemag

1.3 Plate Specifications
Length of plate Max. 14500 mm
Min. 2000 mm

Width of plates Max. 3000 mm
Min. 1000 mm

Thickness Max. 100 mm
Min. 8 mm

280fb0nej
Temperature Max. 500C
Min. 0C

Surface to be marked Dry and clean

Flatness (crosswise) Max. 25 mm/m

Flatness (lengthwise) Max. 25 mm/m

Ski-ends (front or tail) max. 200 mm (no test piece in case of ski- ends)

Head raising max. 120 mm

Plates are stopped / positioned for punch and paint marking
Alignment Centre line

Alignment tolerance  100 mm

Stop tolerance 20 – 40 mm

Machine Data
Machine ID	WM226511
MAGNEMAG #3768 fuer Bleche Tafeln & Rohre und Profile

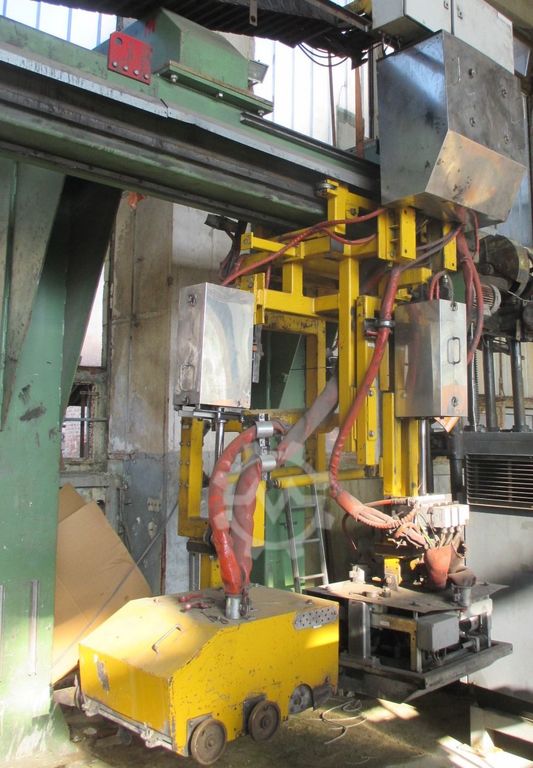

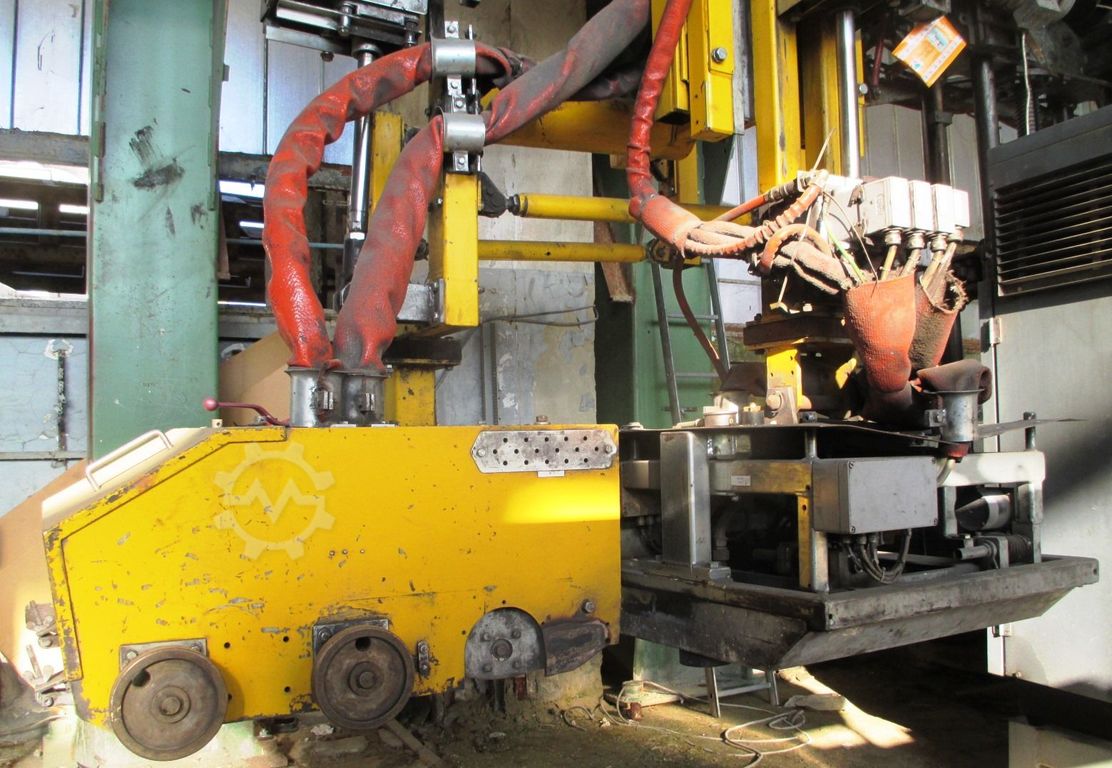

Machine type	Paint & Punch hot steel plates 0-500C
Manufacturer	MAGNEMAG #3768
Model	fuer Bleche Tafeln & Rohre und Profile
Year of manufacture	2007
Condition	good (used)
Price and Location
Price	17.6000
Currency	€
