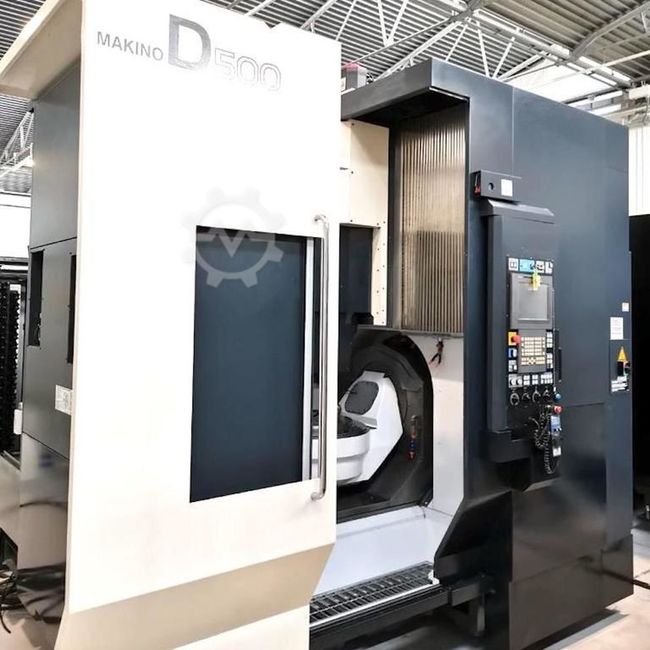

MAKINO D500 Vertical Machining Center 5ax

Posted By :
Comments : 0

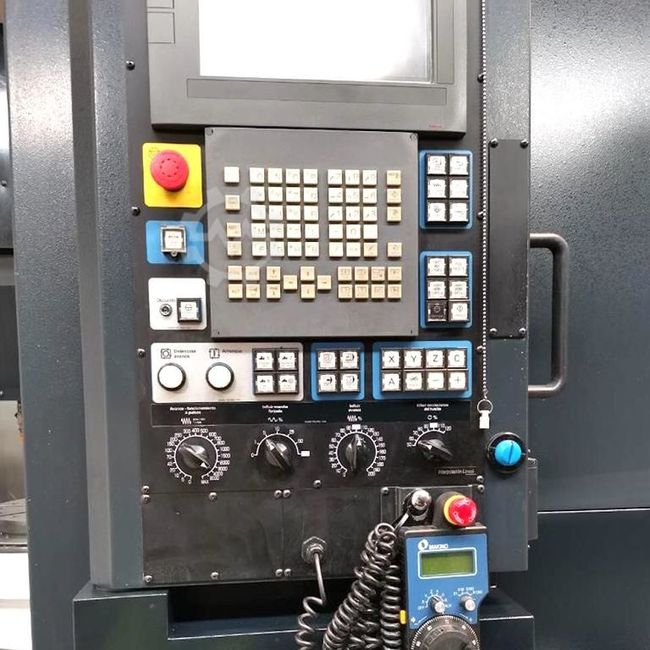

Control: FANUC Professional 5

Axes
X-axis travel mm: 550
Y-axis travel mm: 1000
Z-axis travel mm: 500
A-axis travel degree: 150 (+30 – 120º) rotary encoder
C-axis travel degree: 360 (continuous rotation) / rotary encoder
Rapid traverse m/min: X: 48
Rapid traverse m/min: Y, Z: 50
Rapid traverse m/min: A, C: 48
Feedrate mm/min: X: 1 – 32.000
Feedrate mm/min: Y, Z: 1 – 40,000
Feedrate mm/min: A, C: 1 – 18.000

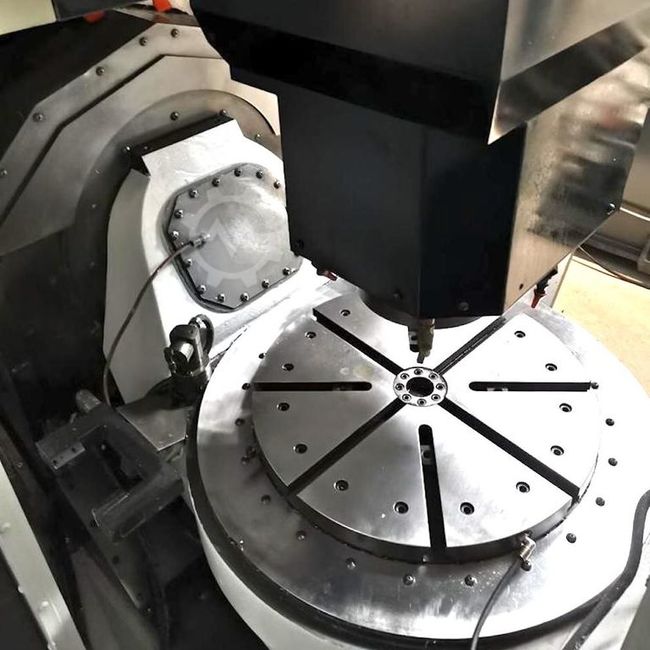

Work table
N2lep
Diameter rotary table mm: 500
Maximum workpiece size (D x H) mm: 650 x 500 (with restrictions)
Workpiece weight max. kg: 350
T-slot version: 4 x 18H8

Spindle
Spindle speed rpm: 20,000

Tooling system
Tool holder: HSK-A63

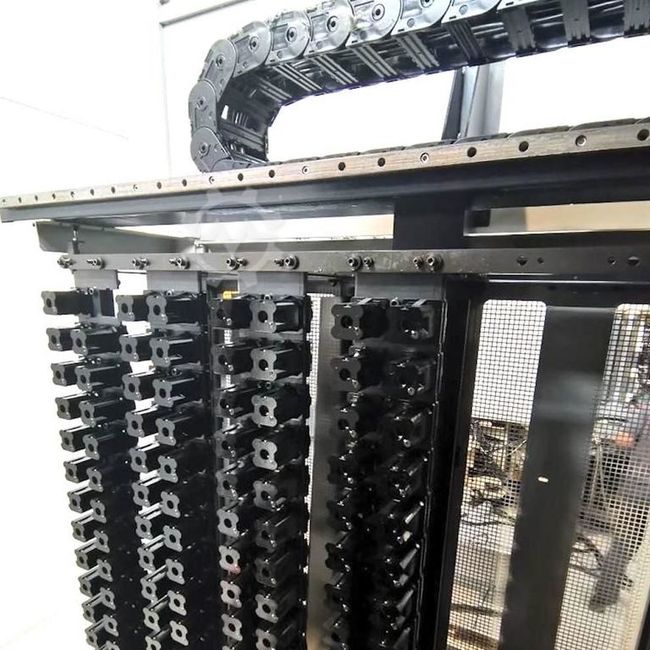

Tool magazine: Matrix
Tool magazine places: 197
Tool changer: double gripper
Tool diameter mm: 70
Tool diameter with free adjacent places mm: 140
Tool length max. mm: 300
Tool weight max. kg: 8

Coolant
Coolant through the spindle
Air through the spindle
8 coolant nozzles outside
Air nozzle outside
Coolant shower

Equipment
Erowa interface (commonly used for A / L type, CE specification) MML interface
Parameterization as type EROWA L
Large door for Erowa / System 3R
Special lift-up conveyor for robot shutter
Automatic non-contact tool measuring device
Automatic workpiece measuring device (MARPOSS)
Portable manual pulser with tool position indicator and handle release button
Helix interpolation (2 + 2 axes)
Additional part program memory (total): 640m
Additional registered program number (total): 500
Memory expansion function for data center type B (total: 800 MB)
Fast Ethernet board (including Ethernet function)
Additional optional blocks skip (total): 9 blocks
Common variable for custom macros 600
Electronic handwheel
Manual set MAKINO
Synchronized tapping
100 user macros
Smooth TCP
Super GI.4 Control
Coordinate system rotation
Swivel work plane

!!! EROWA robot system with 54 pallets not included but available and can be negotiated separately !!!

Operating hours
Cutting time hours: 19000

Basic machine dimensions / weight
Length mm: 3,550
Width mm: 2,900
Height mm: 3,200
Weight kg: 15,700

Machine Data

Machine IDWM234697
MAKINO D500
Machine typeVertical Machining Center 5ax
ManufacturerMAKINO
ModelD500
Year of manufacture2009
Conditionexcellent (used)

Price and Location

LocationItalia

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
