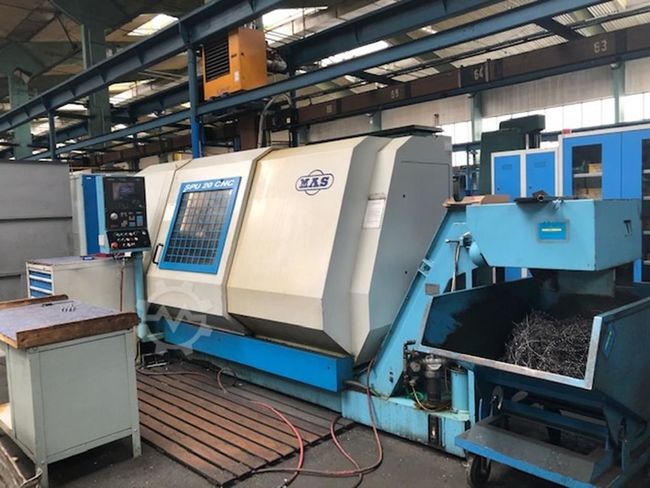

MAS SPU 20 CNC lathe
Catalog No. : 4897
Type: SPU 20
Producer: MAS
Made in: 2000
Characteristic:

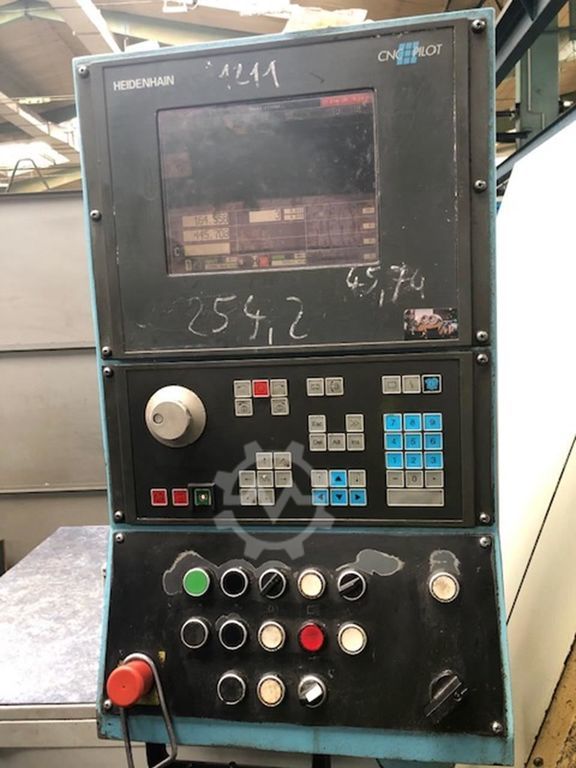

Control system: Heidenhain PILOT 3190
Maximum Z-axis feed length: 700 mm
Turning diameter over bed (max): 600 mm
Turning diameter over cross slide (max): 380 mm
Maximum rotary speed of the main spindle: 5000 1/min
Max. turning diameter: 200 mm

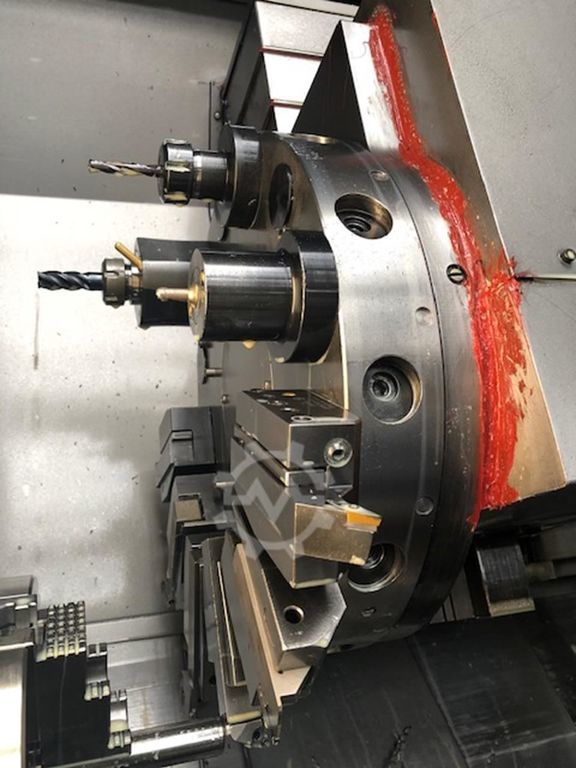

Number of tool head positions: 12
Spindle drilling: 77 mm
Number of axis: 3
Clrcof7
Max. bar diameter: 66 mm
Counter spindle speed: 4000 1/min
Max. the passage of the bar material: 90 mm
Length of the lathe: 3590 mm
Width of the lathe: 2160 mm
Height of the lathe: 2050 mm
Weight of the lathe: 5500 kg
Equipment:
C-axis
Liquid cooling system
Tailstock
Chip conveyor

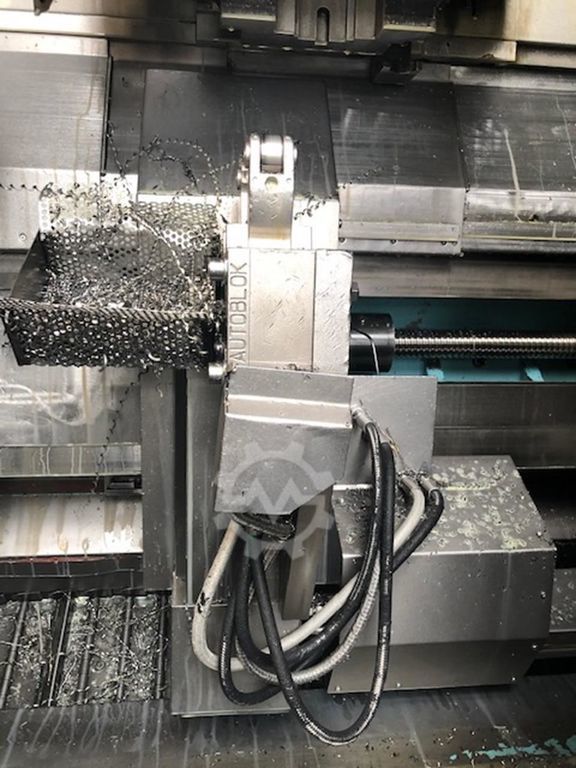

CNC Steady Rest
Driven Tools
Availability: 2Q/2020
Machine Data | |||||||||||||||
| Machine ID | WM233482 | ||||||||||||||
| Machine type | CNC lathe | ||||||||||||||
| Manufacturer | MAS | ||||||||||||||
| Model | SPU 20 | ||||||||||||||
| Year of manufacture | 2000 | ||||||||||||||
| Condition | good (used) | Price and Location | |||||||||||||
| Location | Brno , Czech Republic | ||||||||||||||
