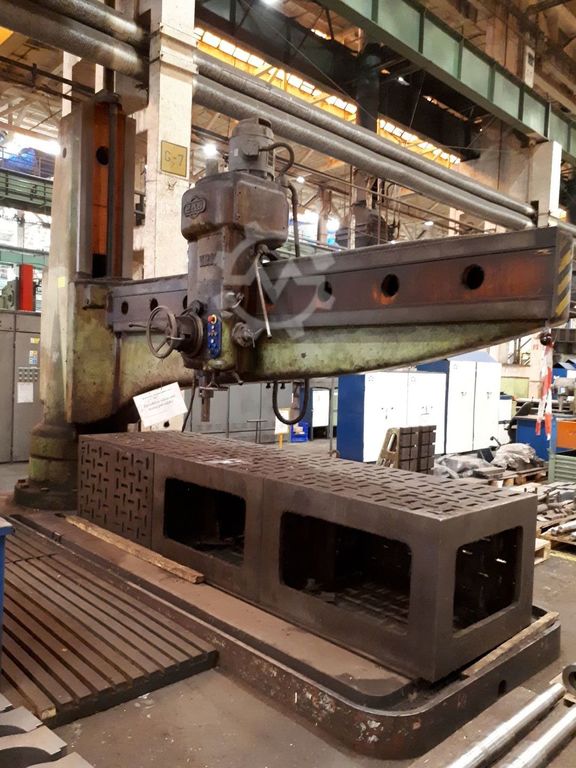

MAS VR 104 Radial drilling machine

Posted By :
Comments : 0

We offer for sale drilling machine VR 104 A
Manufacturer: MAS Kovosvit Sezimovo Usti
Type: VR 104 A
Application: industrial, rotary, column drill for drilling, threading and aligning a wide range of workpieces.
Basic technical data of the machine:
Machine length: 5870 mm
Machine width: 1800 mm
Machine height: 5000 mm
Machine weight: 17600 kg
Total power input of the machine: 20 kW
Maximum drilling diameter in steel 600 MPa: 110 mm
Maximum drilling diameter in steel 250 MPa: 125 mm
Maximum drilling diameter with 600 MPa steel guide: 350 mm
Maximum thread for steel cutting 600 MPa: M 100
Maximum thread for steel cutting 250 MPa: M 120
Distance spindle – column: 530 – 4000 mm
Bhfwi77rst
Maximum headstock travel on the shoulder: 3430 mm
Maximum spindle height above table: 2785 mm
Minimum spindle height above table: 710 mm
Arm rotation: 0 – 360 degrees. and back
Cone in spindle: Morse 6
Spindle diameter: 65 mm
Spindle stroke: 475 mm
Spindle speed:
v norm. rpm: 22.5 – 1000
incr. rpm: 31.5 – 1400
Number of stages: 14
Other machine specifications: see manufacturer’s tables in the appendix

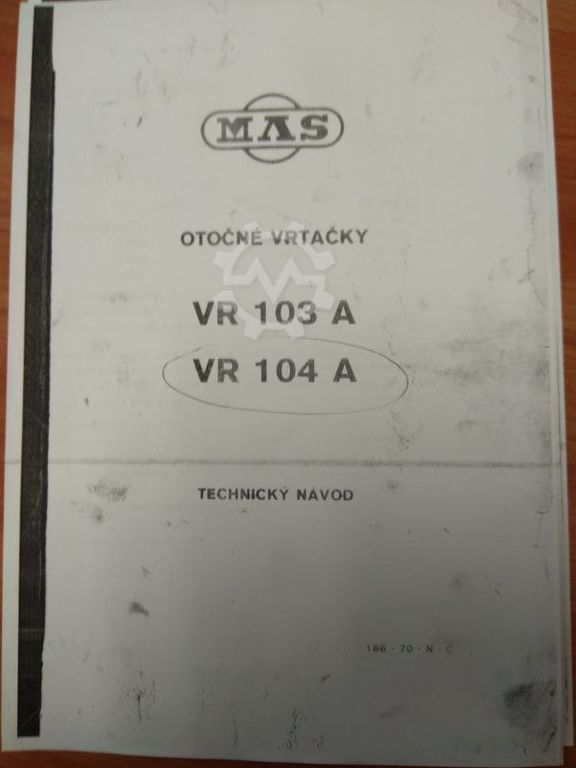

Condition: The drill is fully functional, in good technical condition, regularly serviced and maintained. It is complete, original technical documentation. / picture attached /
Accessories: clamping block
Price: 4.900, € + VAT
VAT deduction possible
Place of storage: Košice

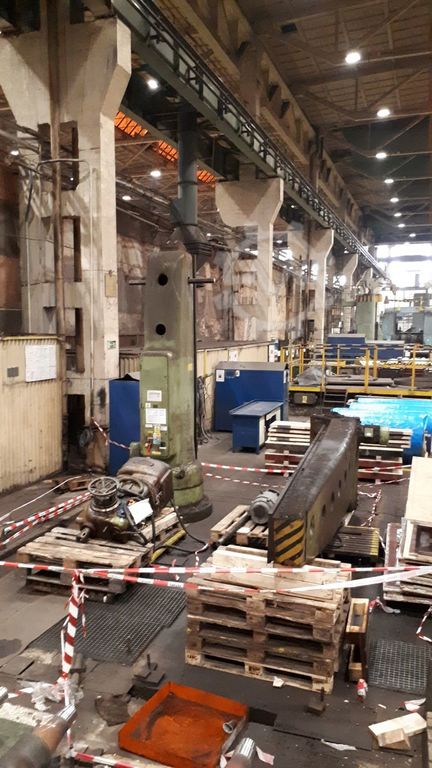

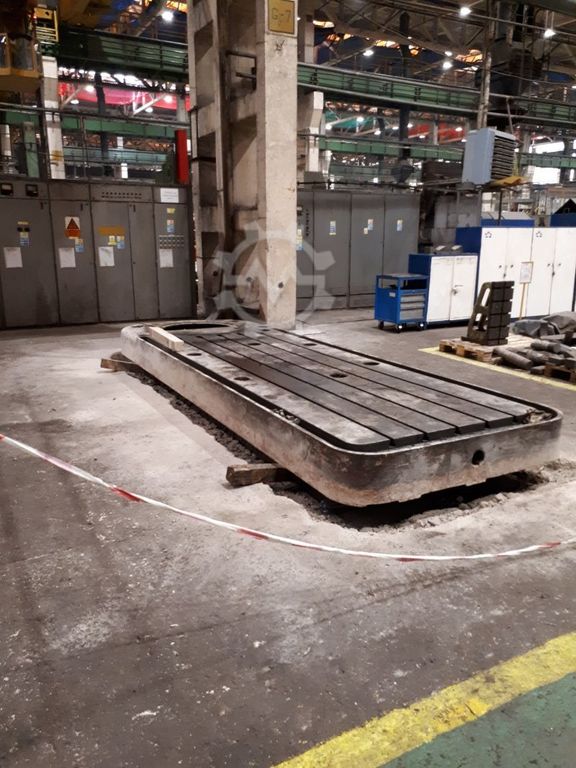

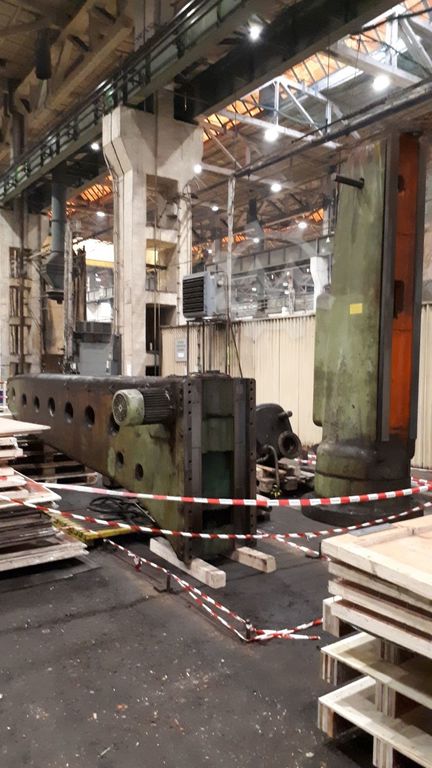

Fotografie: real condition

Machine Data

Machine IDWM231688
MAS VR 104
Machine typeRadial drilling machine
ManufacturerMAS
ModelVR 104
Conditiongood (used)

Price and Location

Price5.390
Currency
LocationKošice , Slovakia

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
