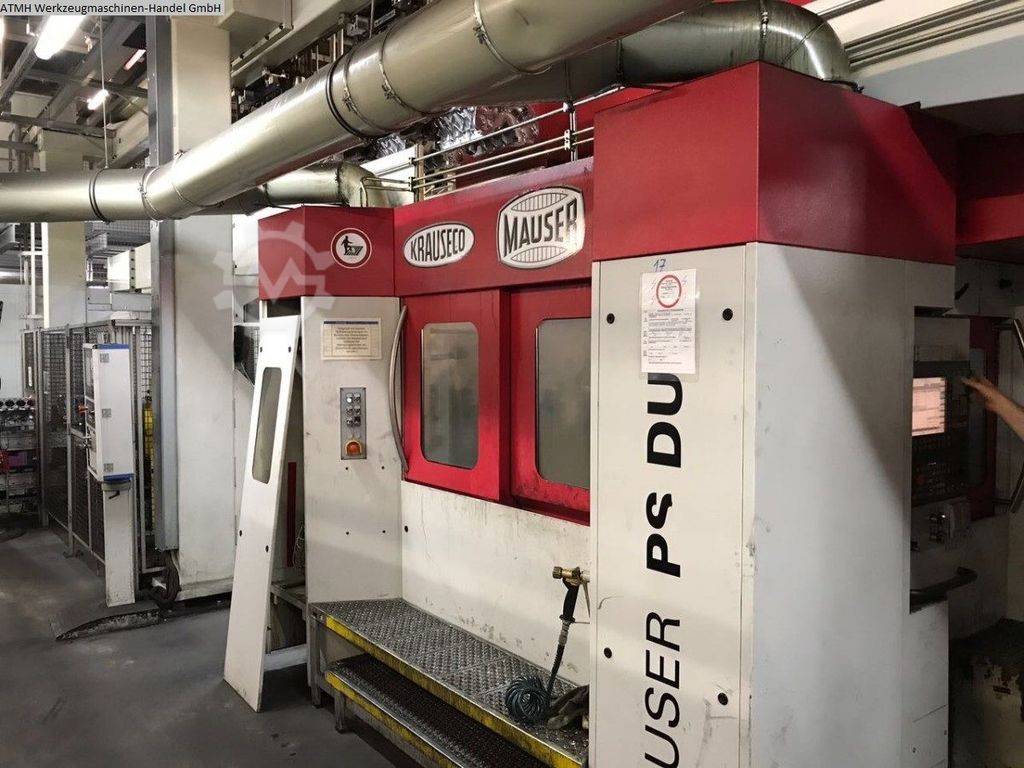

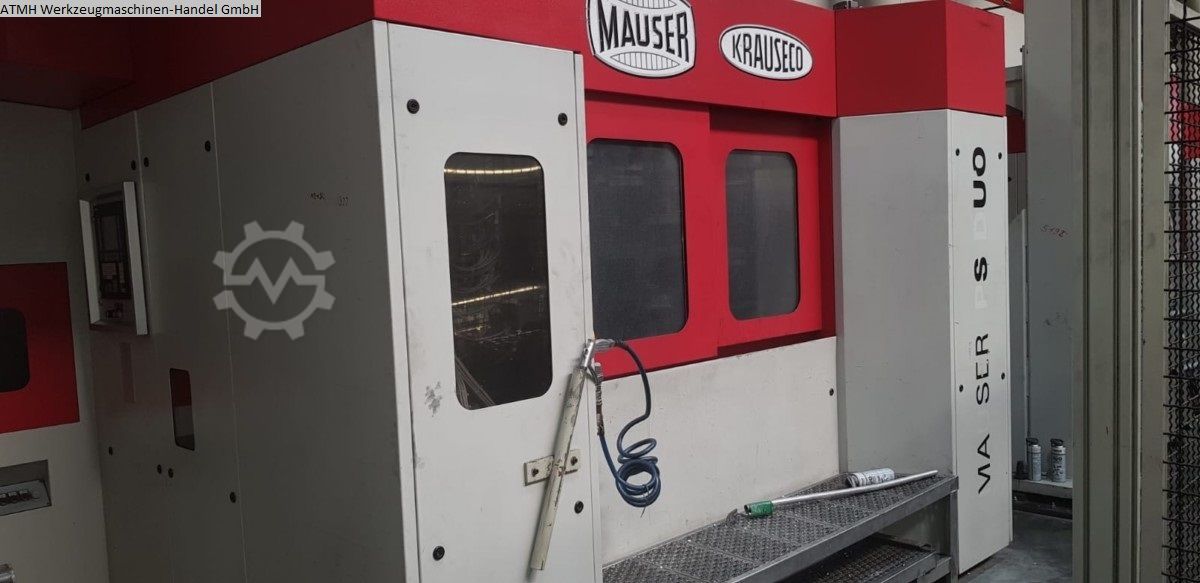

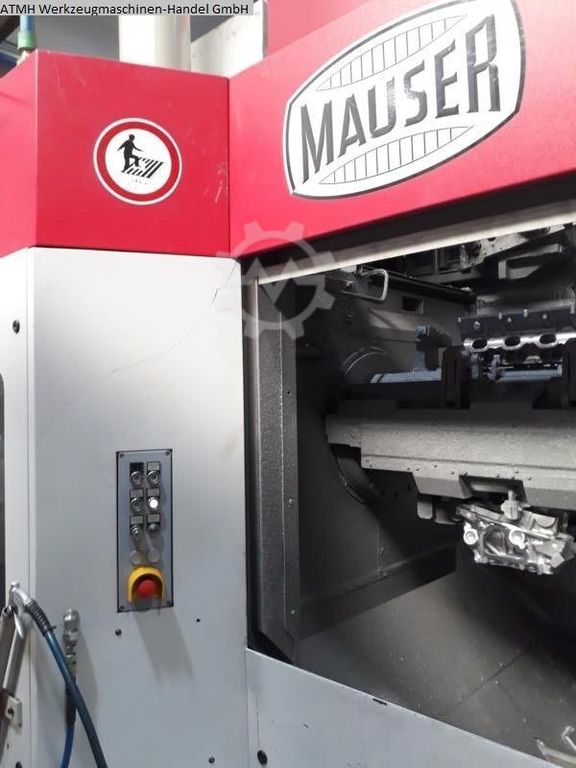

Mauser PS DUO Machining Center Horizontal
Technical details
x-way 750 mm
y-way 850 mm
z-way 600 mm
Control S 840 D
Rapid traverse x / y / z 50/50/70 m / min
Spindle speeds – stepless 30 – 10000 rpm
Tool holder 80 HSK
Tool weight max. 15 kg
Tool length – max. 400 mm
Clamping force 20 kN
Tool diameter 120 (200) mm
Total power requirement 95 kVA
Bdtrckvuap
Machine weight approx. 27 t
Space required approx. 5 x 3 x 3 m

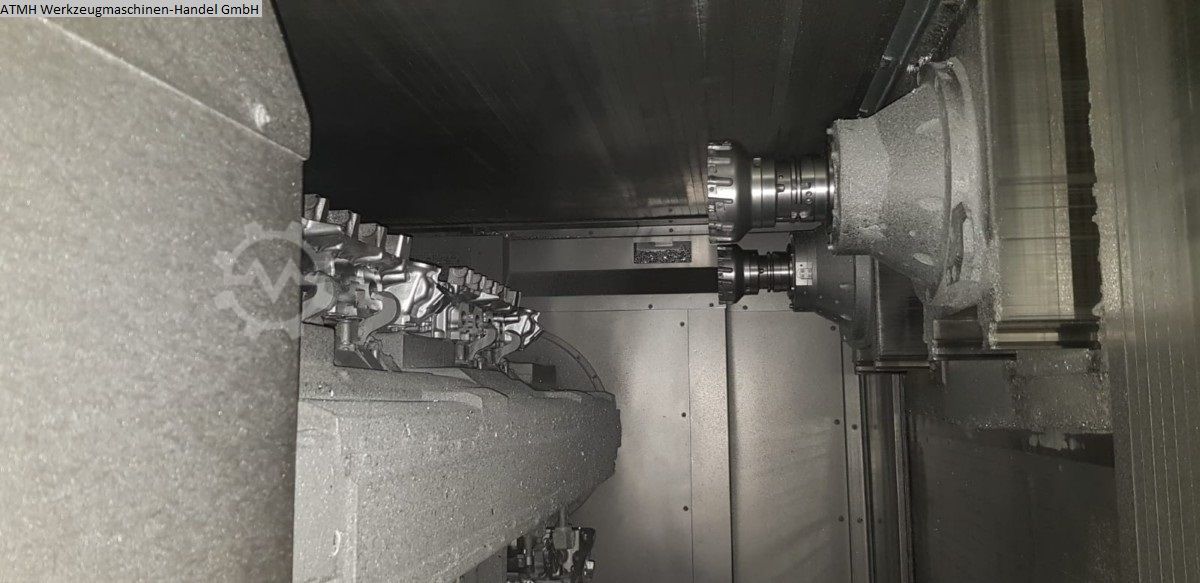

Additional informationTwo – spindle horizontal machining center with swiveling table for
a 4-axis machining. Machine was for editing
Cylinder heads used in the automotive industry (8 cylinders). The machine
has 2 tool changing magazines with 50 places each.
Machine control: Siemens 840 D
Additional data: A-axis partial accuracy = +/- 5 arc seconds, chip-to-chip
Time up to 4 kg = 4.5 sec. And 5 to 15 kg = 7 sec.
Machine Data | |||||||||||||||
Machine ID | WM228374 | ||||||||||||||
Machine type | Machining Center-Horizontal | ||||||||||||||
Manufacturer | Mauser | ||||||||||||||
Model | PS DUO | ||||||||||||||
Year of manufacture | 2007 | ||||||||||||||
Condition | good (used) | Price and Location | |||||||||||||
Location | Ennepetal , Germany | ||||||||||||||
