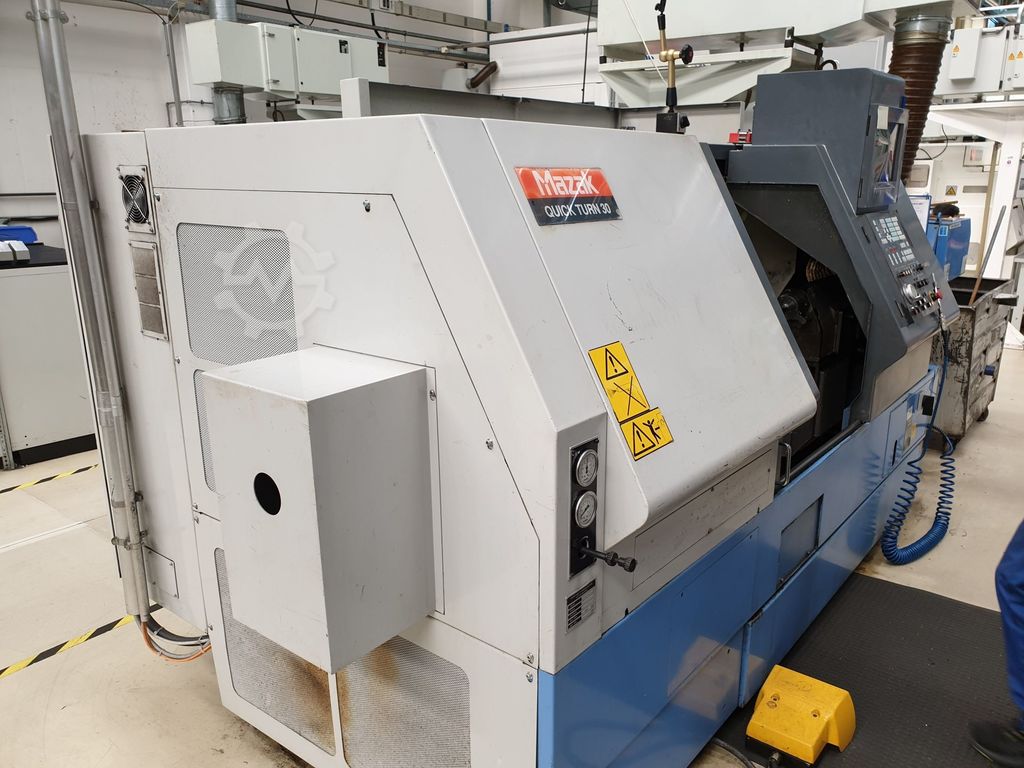

Mazak QT30 CNC lathe
max. swing diameter: 510 mm
max. turning diameter: 320 mm
max. turning length: 951 mm
rod work up to diameter max. 70 mm
main spindle:speed range: 33 – 3.300 rpm
main drive power: 22 KW
constant torque: 432 Nm
spindle nose: A2 – 8 inch
spindle bore: 80 mm

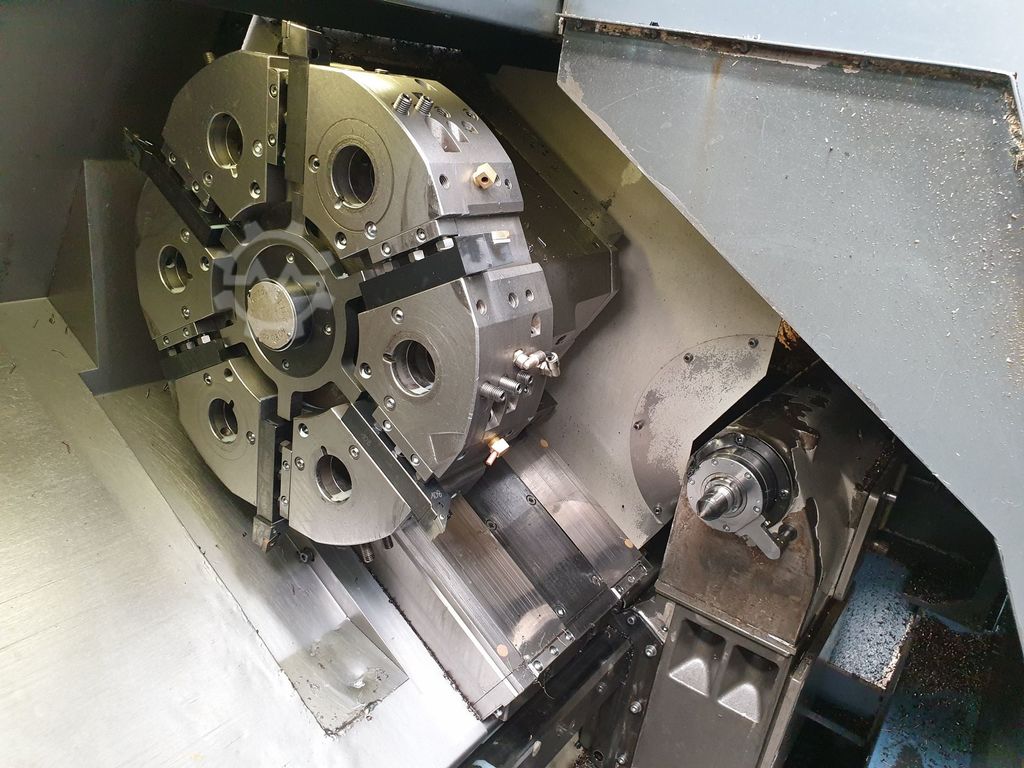

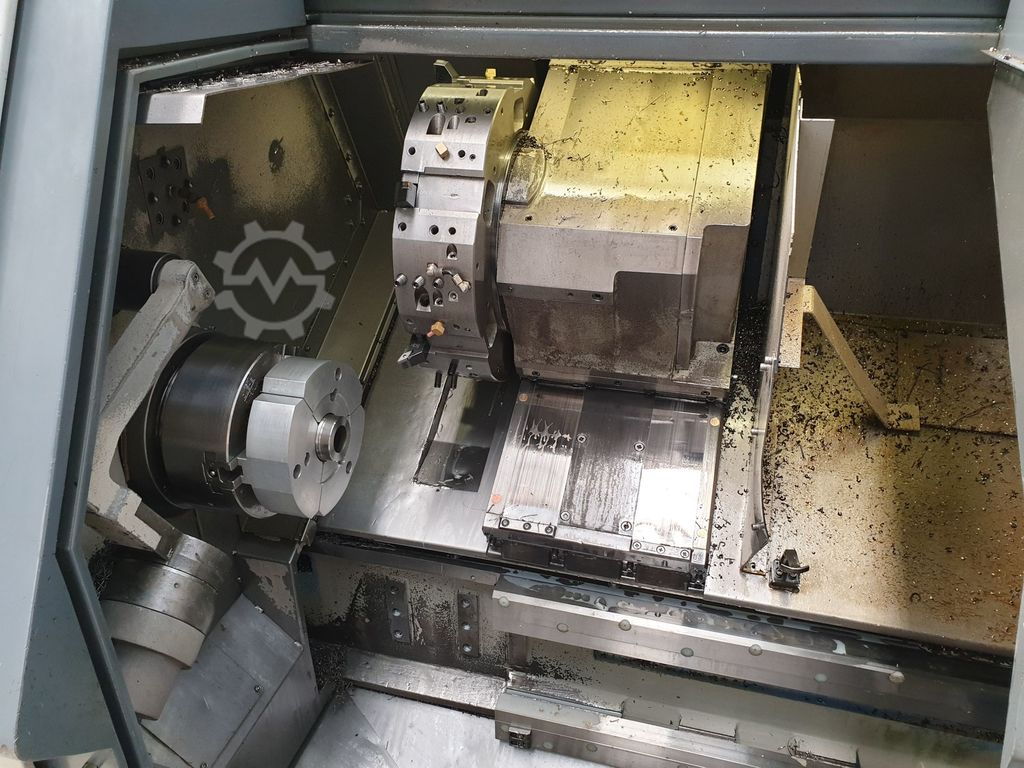

tool revolver:standard design: 8-fold/16 positions
travel paths:revolver – travel path:
x – axis: 200 mm
Nwls2
z – axis: 1.020 mm
Traverse speed:
Rapid traverse:
x – Axis: 20 m/min
z – Axis: 25 m/min
Feed range: 0 – 5,000 mm/min
Tailstock traverse path: 835 mm
Pinole tip: MK 5
Pinole stroke: 130 mm
Machine weight: approx. 5,300 kg
Machine dimensions: L x W x H: approx. 2.80 x 1.95 x 1.95 m
Accessories/options:
Three-jaw chuck
Tool presetter (MAZAK Tool Eye System)
Coolant and chip protection through fully enclosed working chamber
Double foot switch for opening/closing the chuck
Programmable tailstock
Documentation

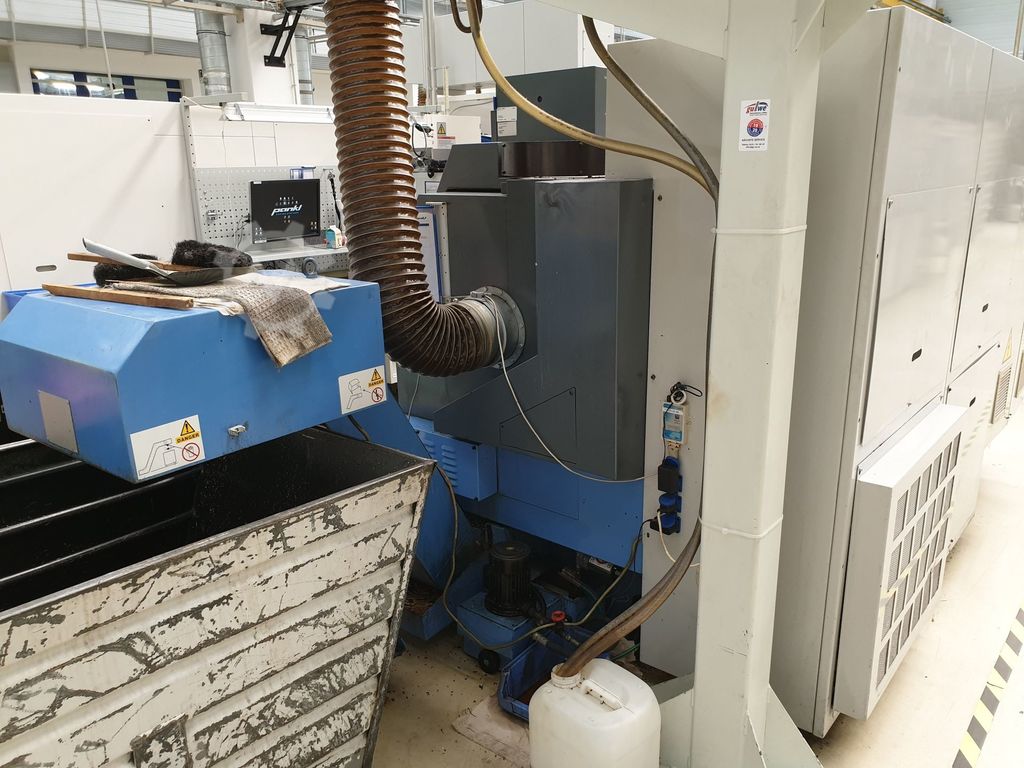

Chip conveyor
Tool holders
Machine Data | |||||||||||||||
| Machine ID | WM232945 | ||||||||||||||
| Machine type | CNC lathe | ||||||||||||||
| Manufacturer | Mazak | ||||||||||||||
| Model | QT30 | ||||||||||||||
| Year of manufacture | 1997 | ||||||||||||||
| Condition | good (used) | Price and Location | |||||||||||||
| Price | 10.890 | ||||||||||||||
| Currency | € | ||||||||||||||
| Location | Szigetszentmiklós , Hungary | ||||||||||||||
