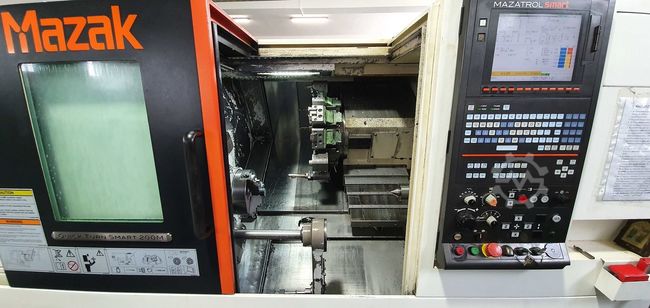

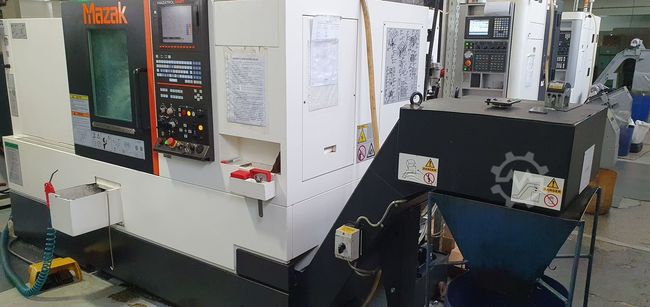

Mazak QTS200M CNC lathe with bar feeder

Posted By :
Comments : 0

CNC lathe MAZAK QTS200M

Training to customer for the machine (if necessary) is available 2 days free of charge , from our technical group.

Work-capacity:
Max. swing diameter 660 mm, Max. machining diameter 360 mm
Max. machining length 500mm, Max. bar material diameter65 mm

Main-spindle:
Spindle speed 35-6000 RPM, Main spindle motor 18,5 kW
Max. torque 350 Nm, Spindle nose A2 – 6 ”
Spindle bore 76 mm, Spindle indexing increments 0,001 °
Cfkty2hu

Turret tool capacity 12.

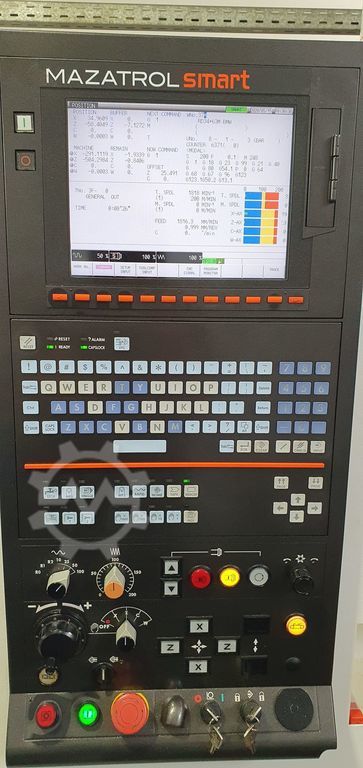

Control:
Mazatrol SMART

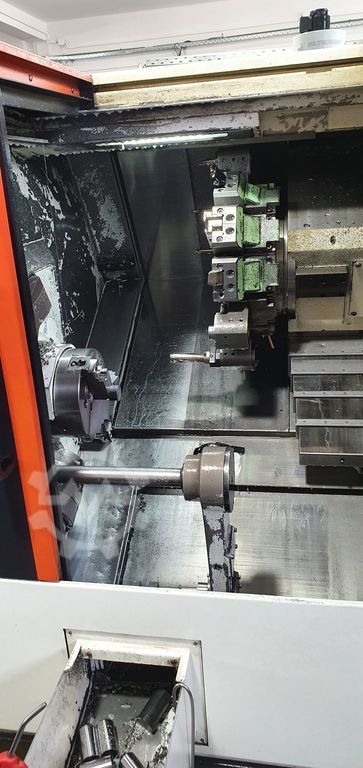

Rotary tools:
Spindle speed 120-5000 RPM, Power 3,7 kW

Feedrate:
Rapid traverse rate:
X-axis 30 m/min, Z-axis 30 m/min, C-axis 400 RPM

Tailstock:
Tailstock quill stroke150 mm, Tailstock centerMK 5, Tailstock travel400 mm

Cutting feed rate:
X/Z-axis0 – 5.000 mm/min, C-axis1 – 2.000 °/min

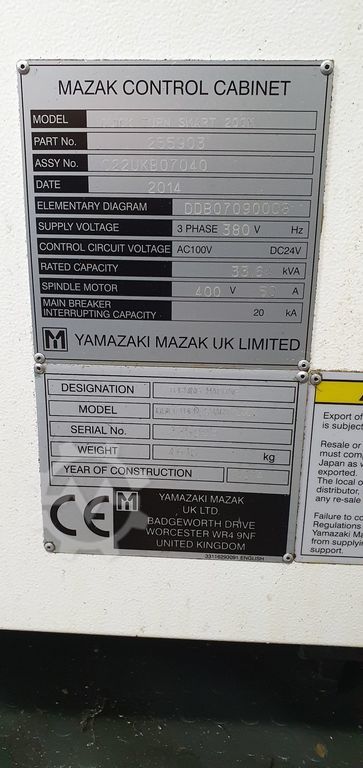

Machine-data:
Electrical power supply35 KVA, Machine weightca. 5.050 kg
Machine size (L x B x H), approx. L2.630mm, W1.680mm, H1.850mm

The machine is a full equiped with options:
-kitagawa Chuck
-tool eye(automatic measurement),
-parts catcher,
-Chip conveyor,
-synchronize tapping,
-milling operation in all positions,
-tailstock hydraulic.
-Optional the machine has 4live driven tools (for face and for diameter).
-all the diameter of protection plain tubes.
-Navigation monitoring display
-PCMCIA port
-IC Port
-Interface for MAZATROL DATA TRANSFER
-Documentation.

Machine Data

Machine IDWM235712
Mazak QTS200M
Machine typeCNC lathe with bar feeder
ManufacturerMazak
ModelQTS200M
Year of manufacture2014
Conditionexcellent (used)

Price and Location

LocationOREOKASTRO , Greece

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
