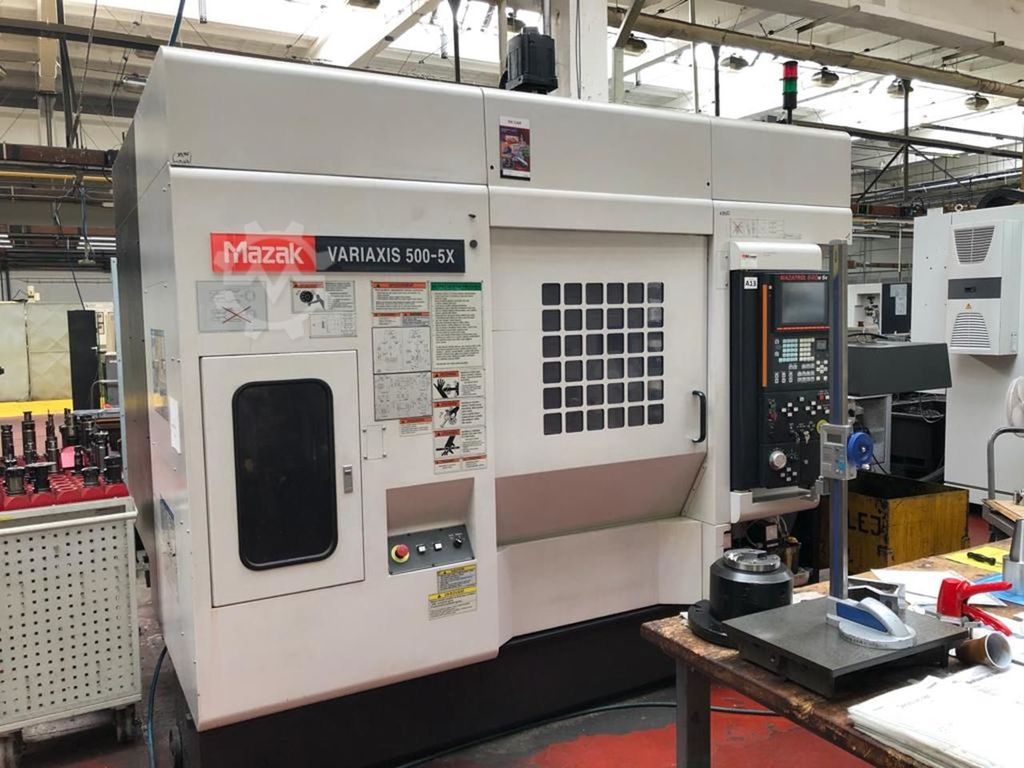

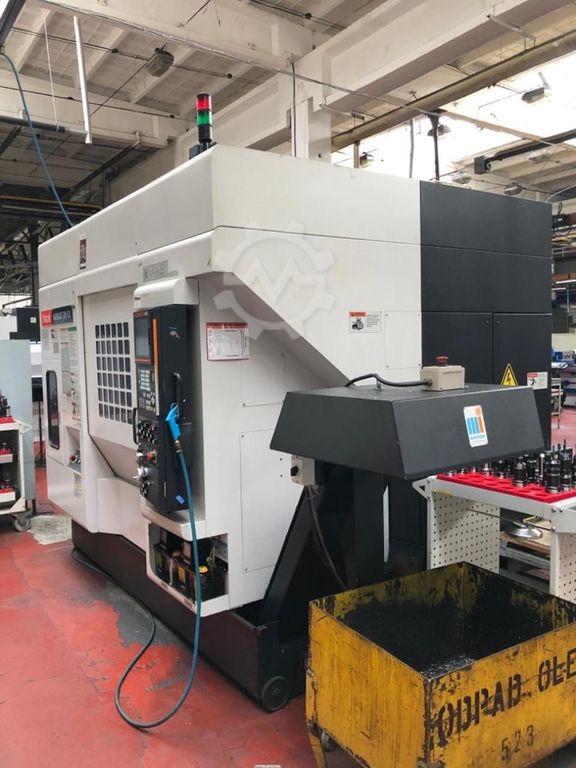

MAZAK VARIAXIS 500 5X CNC Machining Centre

Posted By :
Comments : 0

Control system: MAZATROL 640M 5X
Total hours: 57993 h
Length of the working table: 400 mm
Width of the working table: 400 mm
Maximum table load (evenly distributed): 300 kg
Power of the spindle drive: 22 kW
Minimum rotary speed of the vertical spindle: 35 1/min
Maximum rotary speed of the vertical spindle: 12000 1/min
Minimum distance of the spindle from the table: 190 mm
Maximum distance of the spindle from the table: 650 mm
Travel length X-axis (mechanical feed): 510 mm
Travel length Y-axis (mechanical feed): 510 mm
Travel length Z-axis (mechanical feed): 460 mm
Bhxhbqlq3h
Maximum feed rate in X-axis: 50 m/min
Maximum feed rate in Y-axis: 50 m/min
Maximum feed rate in Z-axis: 50 m/min
Taper: ISO 40
Maximum number of tools: 60 pcs
Maximum tool length: 300 mm
Workpiece diameter: 500 mm
Workpiece height: 405 mm
Tool diameter: 125 mm
Machine height: 3074 mm
Machine length: 3973 mm
Machine width: 2805 mm
Machine weight: 9000 kg
Equipment:

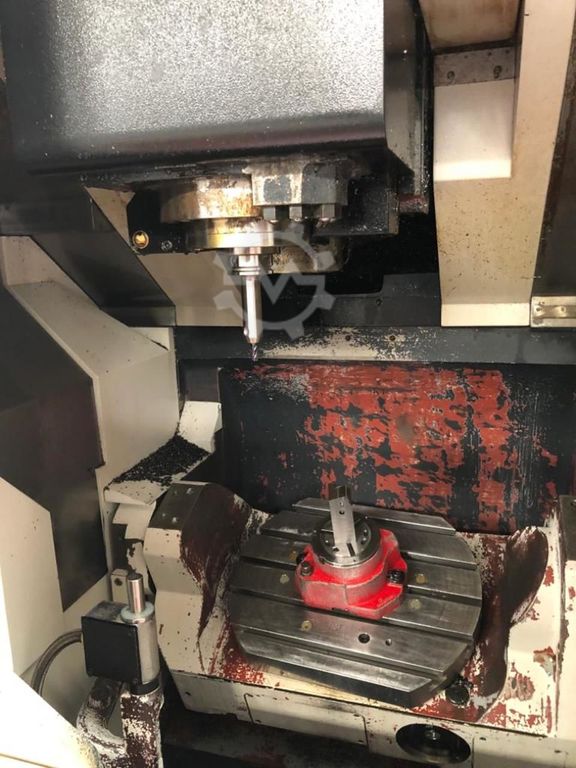

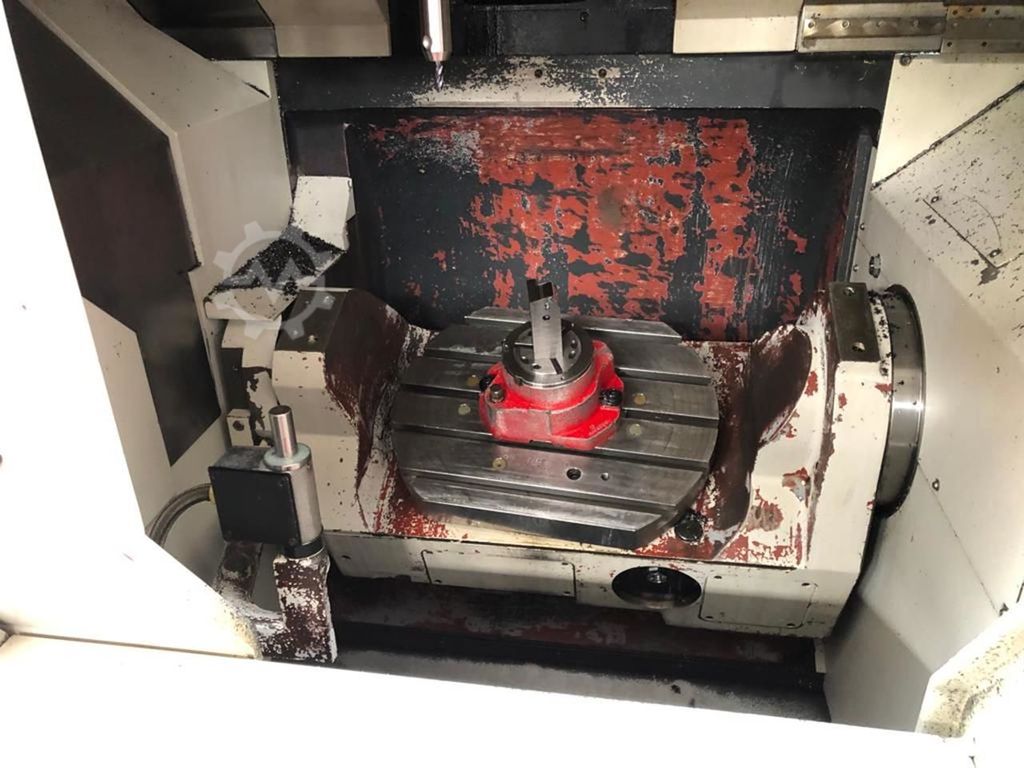

CNC rotary table – synchronous axis
Liquid cooling system
Technical books
Chip conveyor
Internal cooling

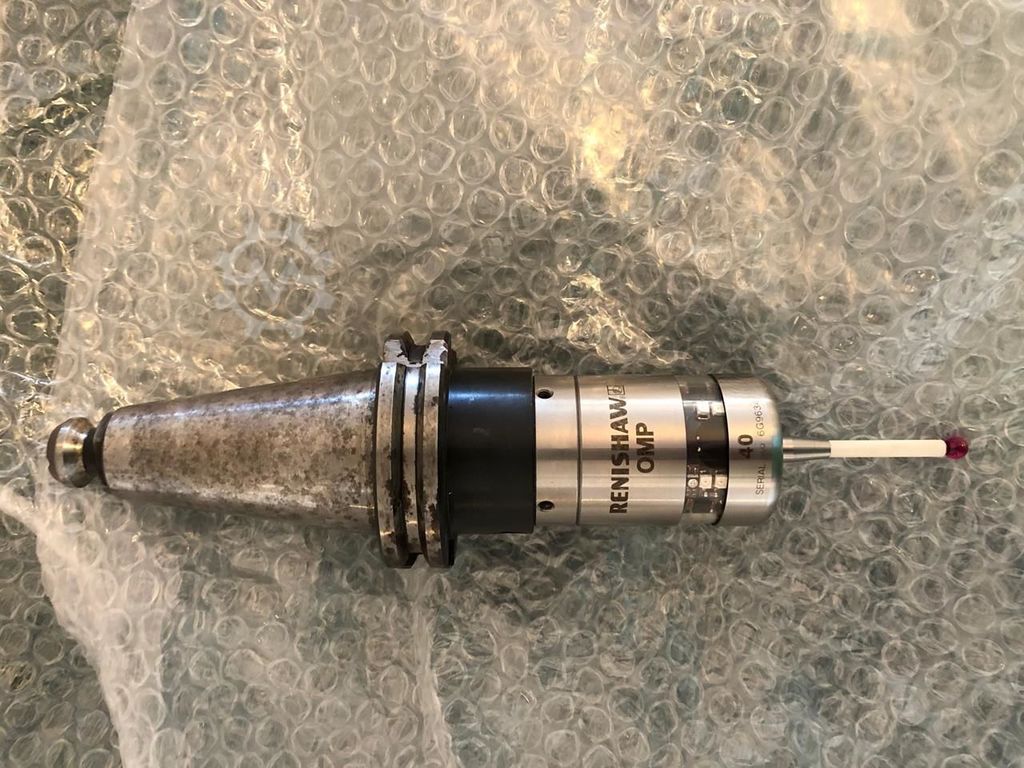

Workpiece probe Renishaw

Machine Data

Machine IDWM232886
MAZAK VARIAXIS 500-5X
Machine typeCNC Machining Centre
ManufacturerMAZAK
ModelVARIAXIS 500-5X
Year of manufacture2004
Conditiongood (used)

Price and Location

LocationBrno , Czech Republic

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
