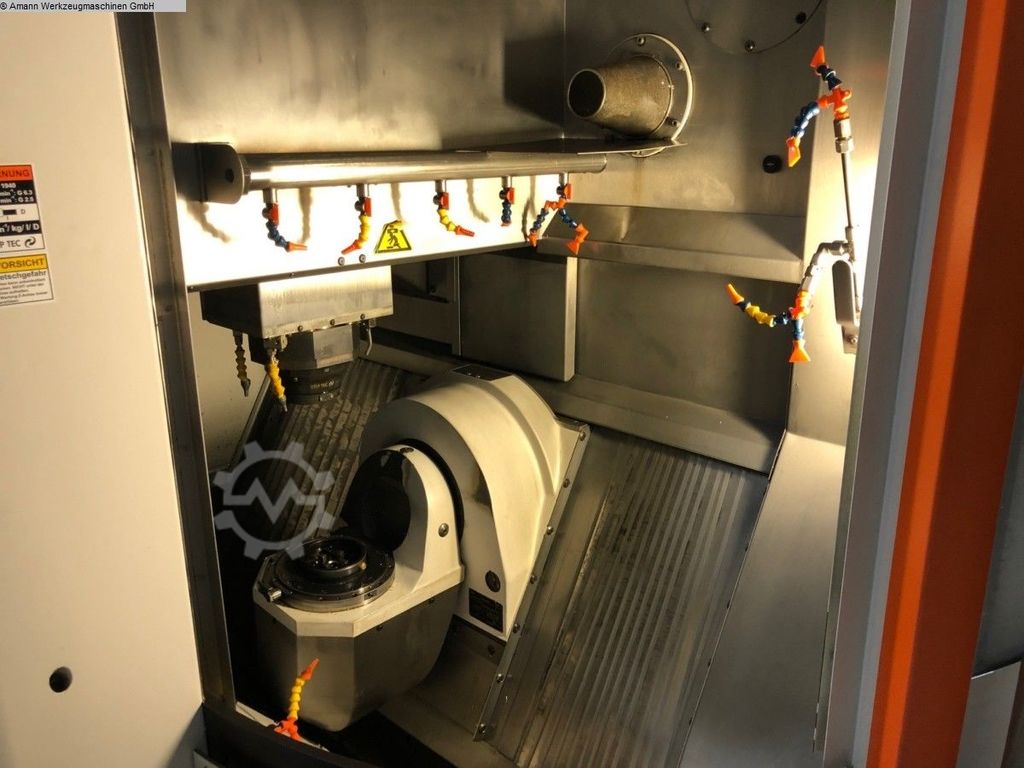

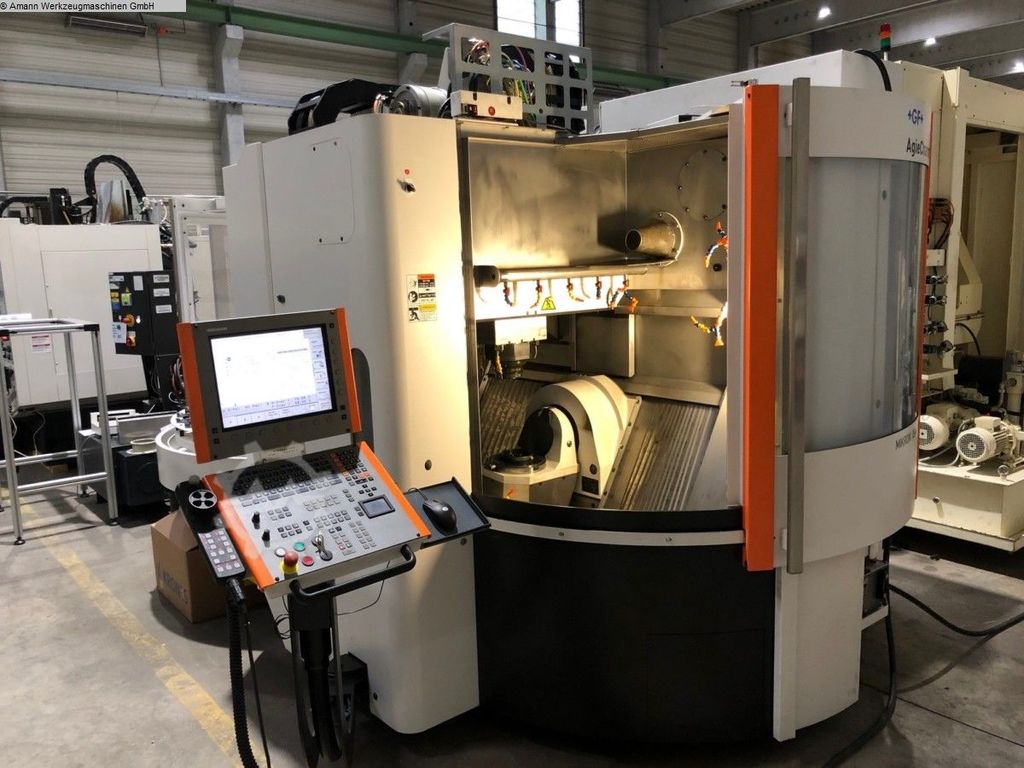

MIKRON AGIE CHARMILLES XSM 400U LP milling machining centers vertical

Posted By :
Comments : 0

x-travel 500 mm
y-travel 240 mm
z-travel 360 mm
B – axis + / – 110 °
C-axis 360 °

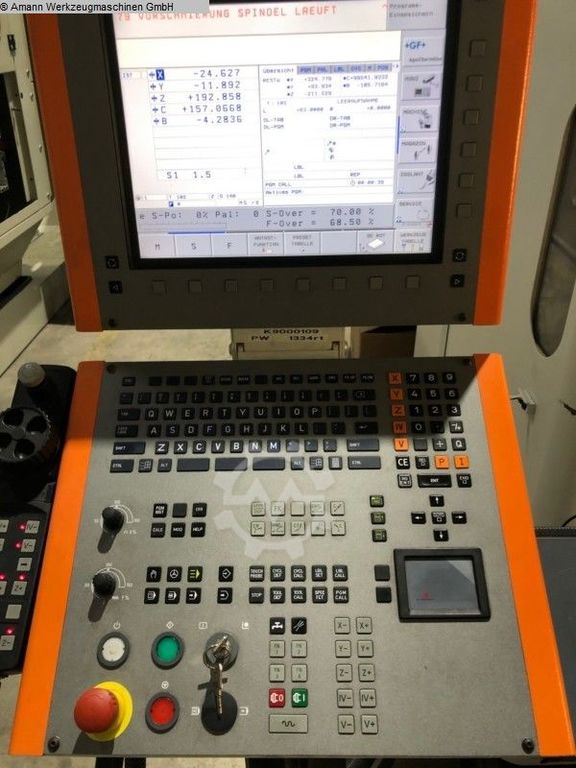

Control iTNC 530

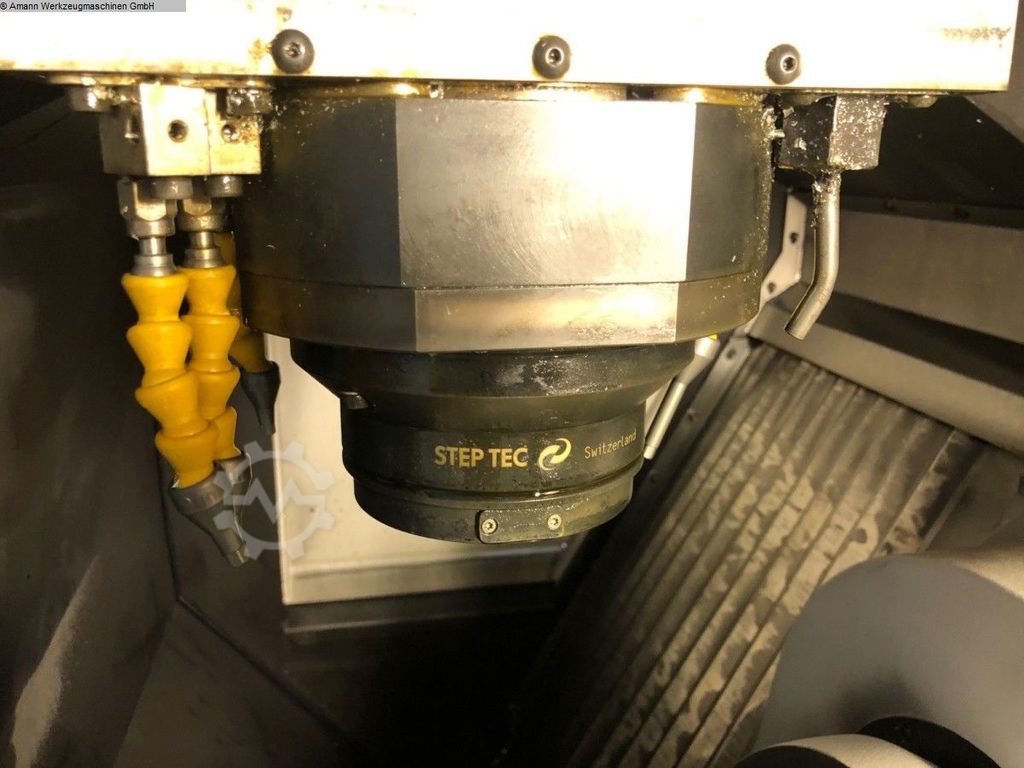

turning speeds max. 42.000 U/min
tool taper HSK – E40
Gutuewz
number of tools in the magazine 68
diameter of tools max. 16 mm
tool length – max. 120 mm
weight of tools max. 1 kg
feed capacity X/Y/Z 8,8 / 4,4 / 1,5 kN
rapid traverse X/Y/Z 100 / 100 / 100 m/min
type of pallet-magazin: round 27
working pressure 6 bar
total power requirement 33 kW
weight of the machine ca. 7 t
dimensions of the machine ca. 3,4 x 2,4 x 2,7 m

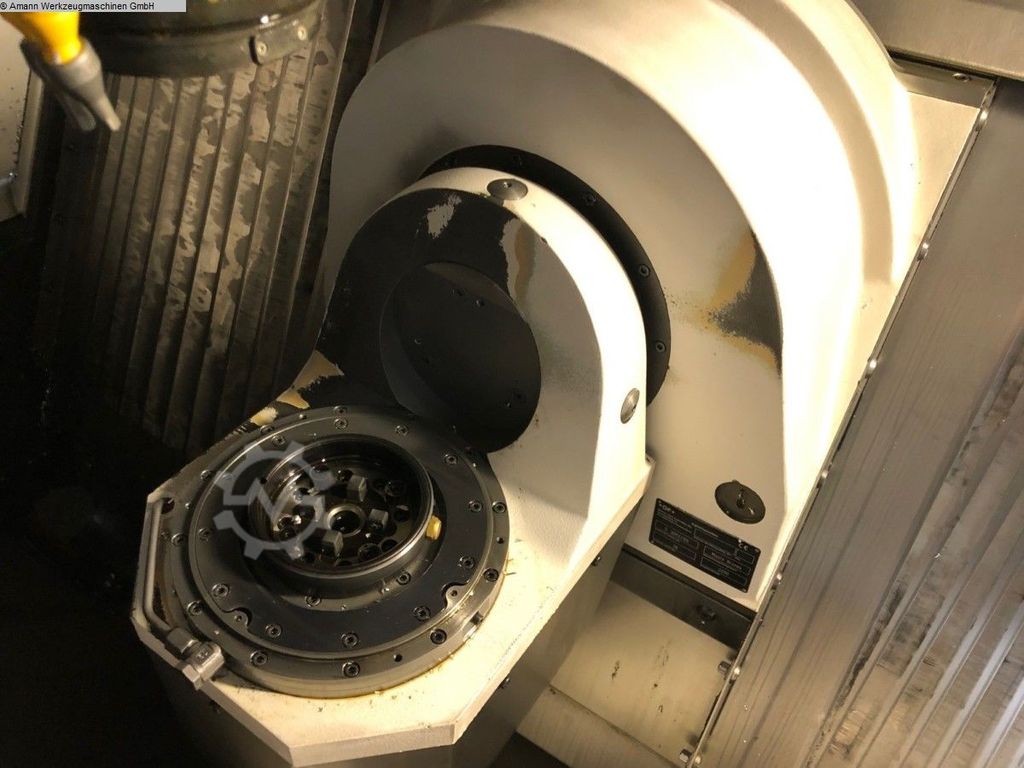

5-axis version with swivel rotary table
Laser tool measuring
electronic handwheel
M & H probes available
Chip conveyor KNOLL type 500 K1
Coolant system with band filter ARO type B-14.9 / 8.8 / 6
Pallet system 3R Macro (none available)

Machine Data

Machine IDWM226728
MIKRON-AGIE CHARMILLES XSM 400U LP
Machine typemilling machining centers - vertical
ManufacturerMIKRON-AGIE CHARMILLES
ModelXSM 400U LP
Year of manufacture2010
Conditionused

Price and Location

LocationLager

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
