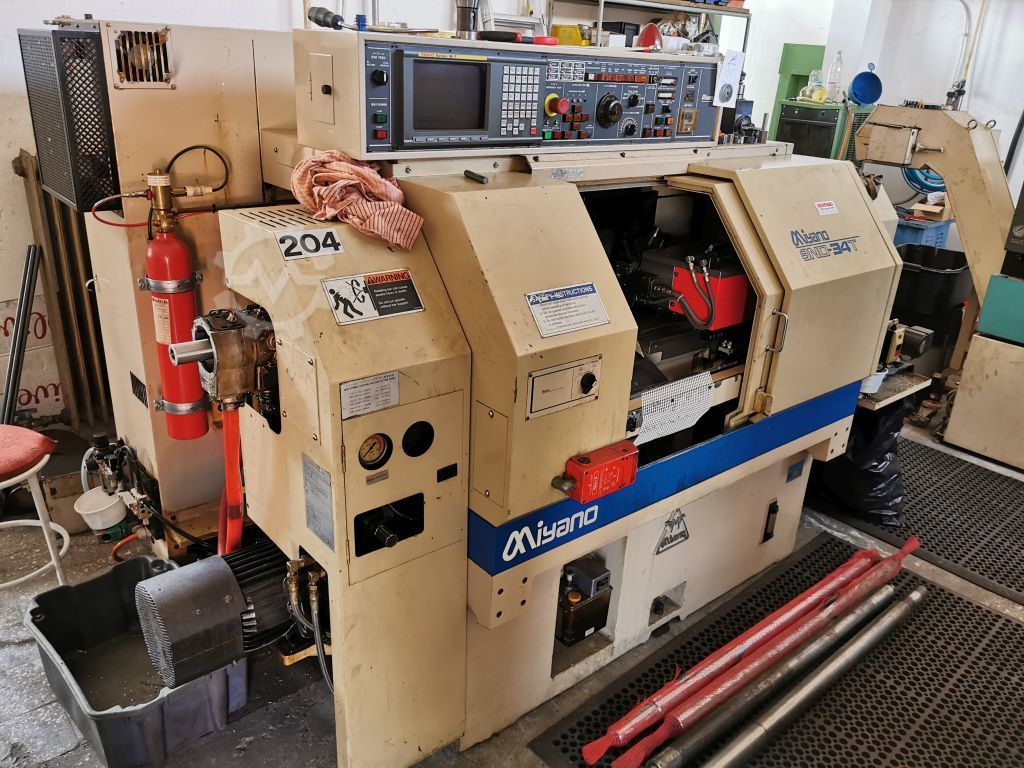

Miyano BND 34T Cnc lathe

Tags : , , , ,
Posted By :
Comments : 0

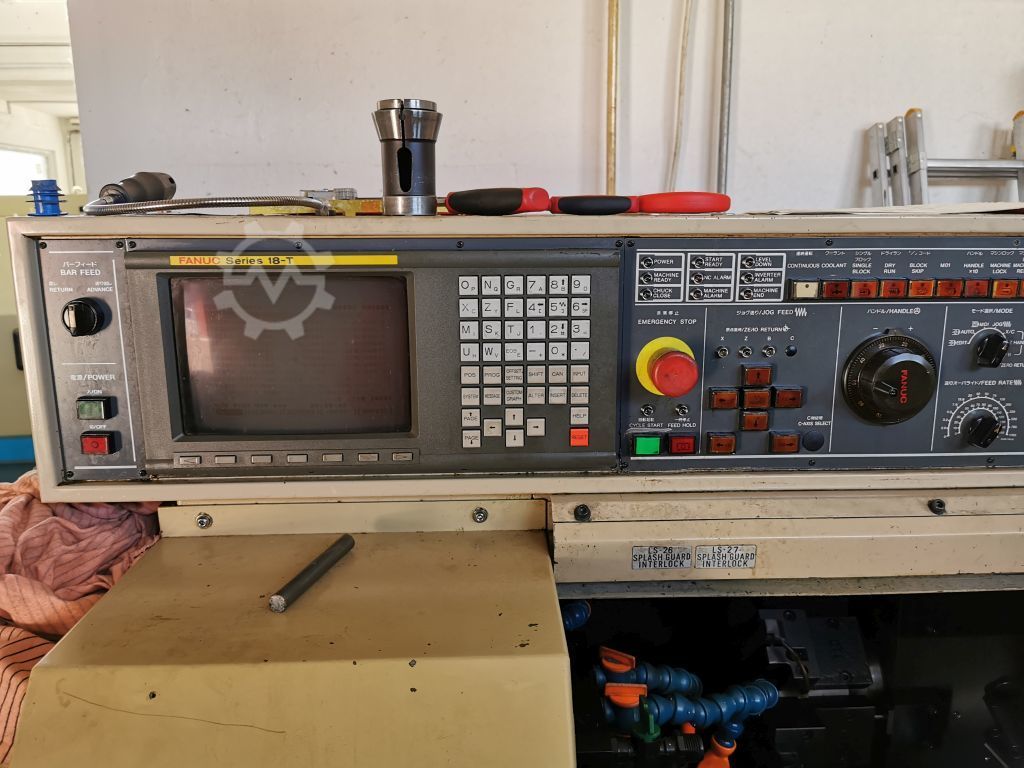

Control FANUC 18-T
Max turning dia 75 mm
Turning length 220 mm
Max. chuck dia 127 mm
Collet type Typ B&S#22
Spindle speed 66 – 5000 rpm
Spindle hole D37 mm
Spindle power 7,3 kW
Spindle indexing 7.5 degree
1. turret 8-fold
2. turret 6-fold
Weight 3800 kgs
Machine size LxWxH 2500 x 1600 x 1700 mm

Accessories
– 2 x turret with live tool attachment
– Collets
– Tool molders (also live)

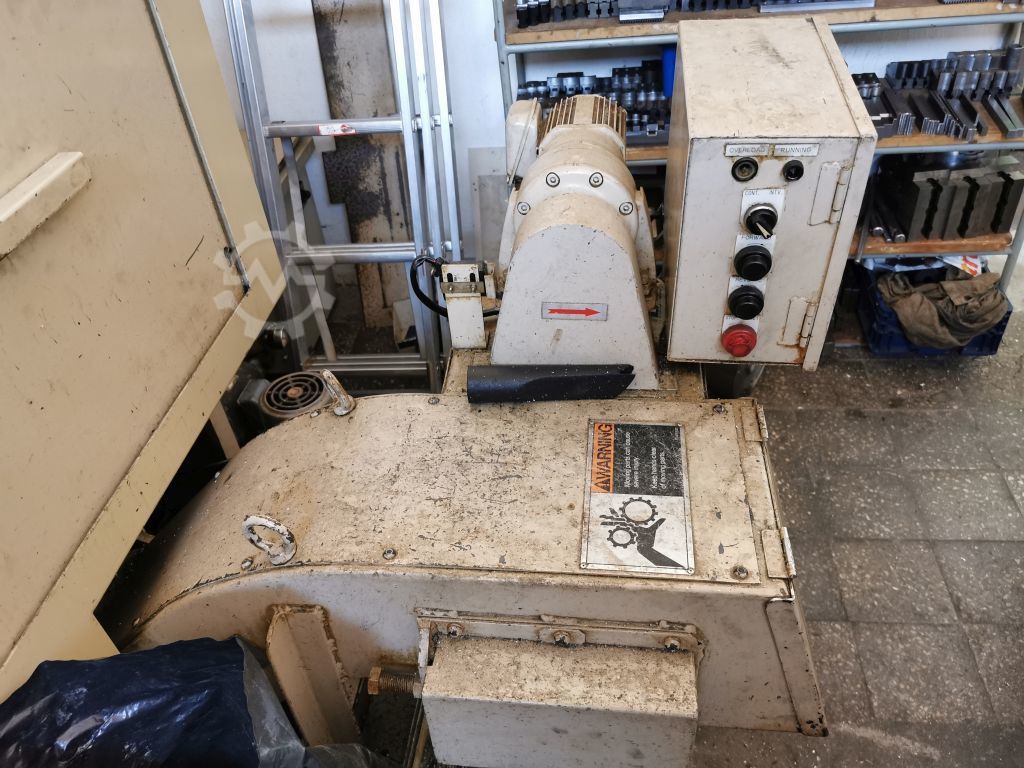

– Chip conveyor
Nxxs9
– Coolant unit
– Fire-extinguisher
– Manuals

Machine Data

Machine IDWM230496

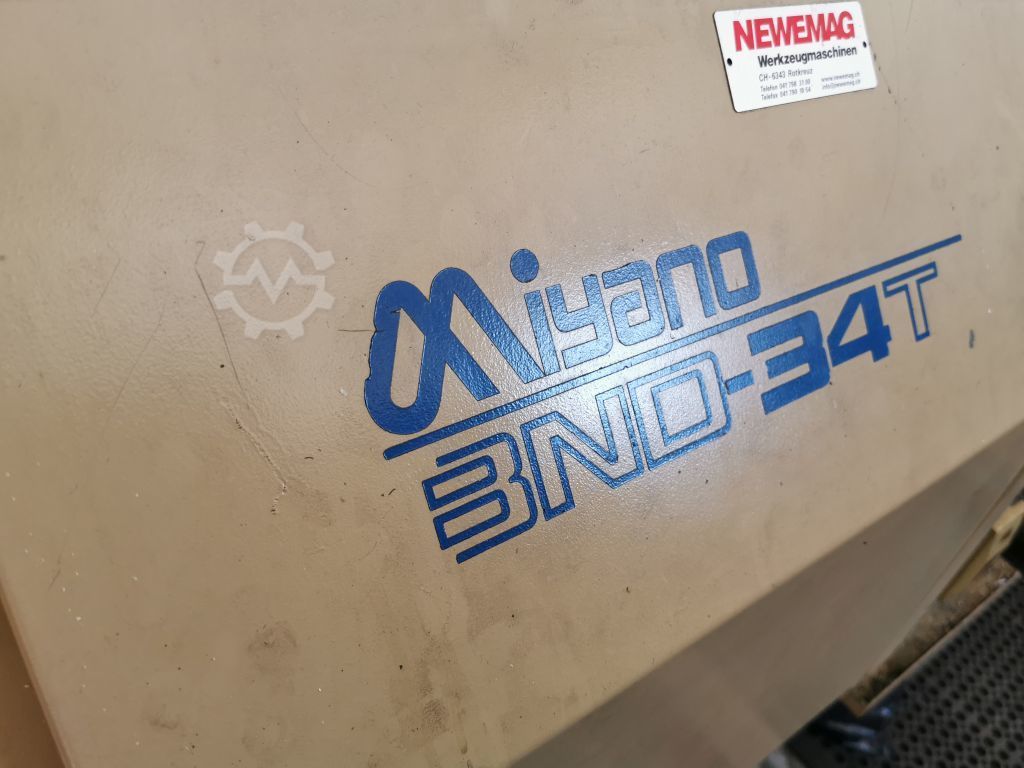

Miyano BND-34T
Machine typeCnc lathe
ManufacturerMiyano
ModelBND-34T
Year of manufacture1996
Conditiongood (used)

Price and Location

LocationSzekesfehervar , Hungary

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
