x travel 4000 mm
y travel 1400 mm
z travel 1500 mm
—–
WORKING RANGE -CUBIC-
– X-axis travel 4000 mm
– Y-axis travel 1400 mm
– Z-axis travel 1500 mm
TABLE
Doio97fps
– table surface (left-right) 4200 mm
– table surface (front-back) 1200 mm
– workpiece load (max) 14000 kg

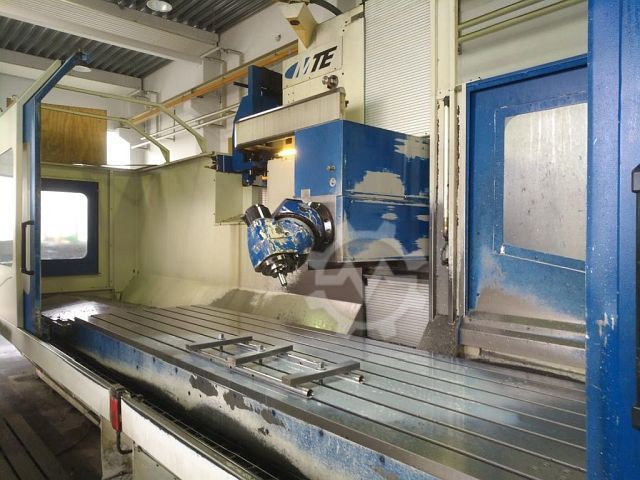

MILLING SPINDLE / HEAD
– spindle type: tilting head
– spindle revolutions (min) 40 /min
– spindle revolutions (max) 4000 /min
– tool fixture: ISO SK 50
AXIS DRIVES
– feed velocity (min) 0 mm/min
– feed velocity (max) 15000 mm/min
– rapid traverse 25000 mm/min
DIMENSIONS / WEIGHTS
– space requirements -left/right- 10400 mm
– space requirements -front/back- 5100 mm
– total height 4200 mm
– total weight approx. 30000 kg
ATTACHMENTS
– through spindle coolant attachment: yes
– closed cabin: yes
