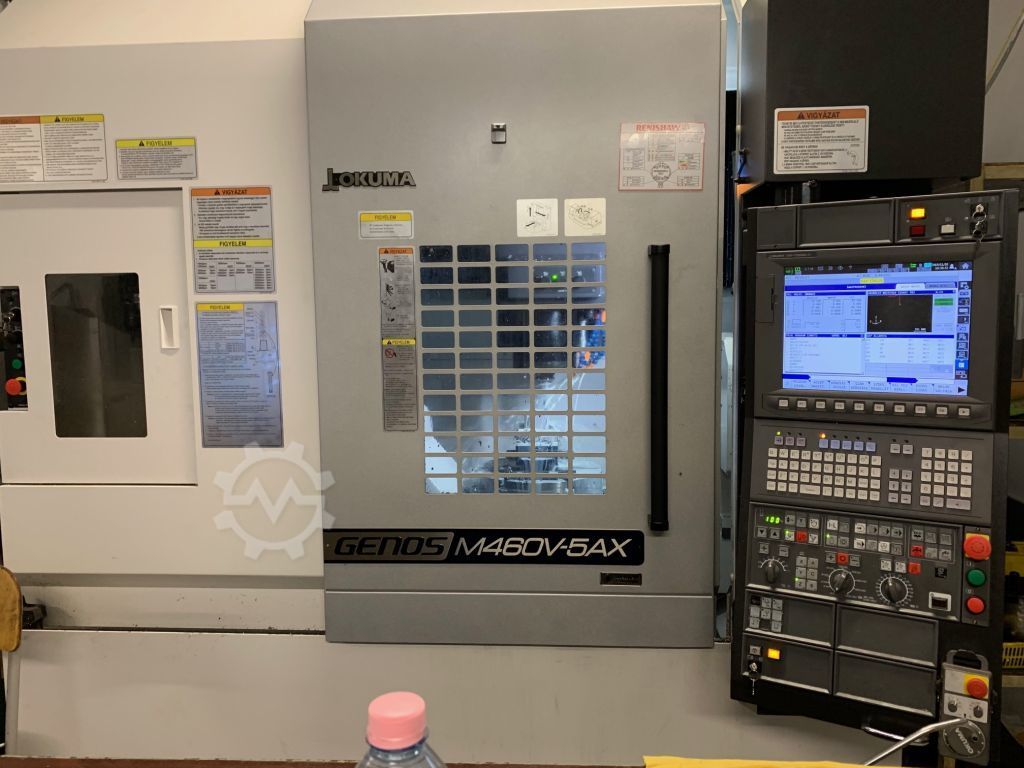

Okuma M460 5AX 5 axis machining center

Posted By :
Comments : 0

First installation in 2019. The machine is like new. It was just for couple of weeks in production. It will be sold because of company liquidation.

The next-generation, 5-axis vertical machining center is specifically designed to manufacture high-precision parts and deliver impressive metal removal rates in a compact design. Its solid double-column structure, full 5-axis simultaneous control, and thermal stability performance give it the ability to easily cut a variety of materials.

Using a hypoid gear drive, the GENOS M460V-5AX features trunnion construction that offers exceptional accuracy, rigidity, and table rotation speed. The spindle produces less vibration and power loss at the tool tip for outstanding surface finishes and metal removal rates. This affordable, 5-axis machine provides high productivity and profitability in a small footprint.

Bgnrduqaij
Technical parameters
– Control OSP-P300MA-H (touch LCD screen, USB)
– Table size Ø 400 mm
– Table load max 300 kgs
– Spindle speed 15000 rpm
– X travel 762 mm
– Y travel 460 mm
– Z travel 460 mm
– A axis +20 / -110 degree
– C axis 360 degree
– Distance between spindle nose and table surface 100 – 560 mm
– Spindle taper MAS-BT40
– ATC magazin capacity 32-fold
– Max tool diameter D90 mm
– Max tool length 240 mm
– Rapid speed X = 40 m/min
– Rapid speed Y = 40 m/min
– Rapid speed Z = 42 m=min
– Rapid speed A/C axes 14,400 degree/min
– Spindle power (VAC) 22/18.5 kW
– Place required LxWxH 2160 x 2810 x 3000 mm
– Weight 8300 kgs

Features
– Renishaw RMI-Q tool and zero point presetter system
– Chip conveyor
– Coolant unit
– Machine manuals
– Manual pulse generator

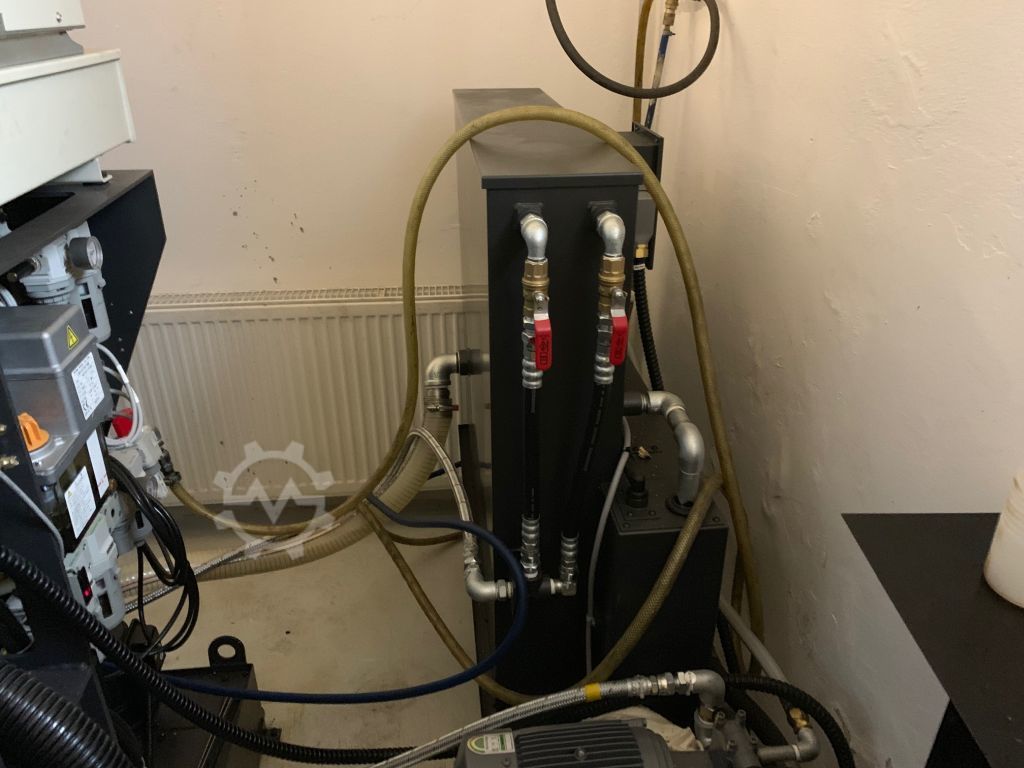

– Spindle cooler

The machine was hardly used. Still under power. An inspection is possible after making and appointment. Location West-Hungary.

Machine Data

Machine IDWM227483
Okuma M460-5AX
Machine type5 axis machining center
ManufacturerOkuma
ModelM460-5AX
Year of manufacture2018
Conditiongood condition (used)

Price and Location

LocationSzekesfehervar , Hungary

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
