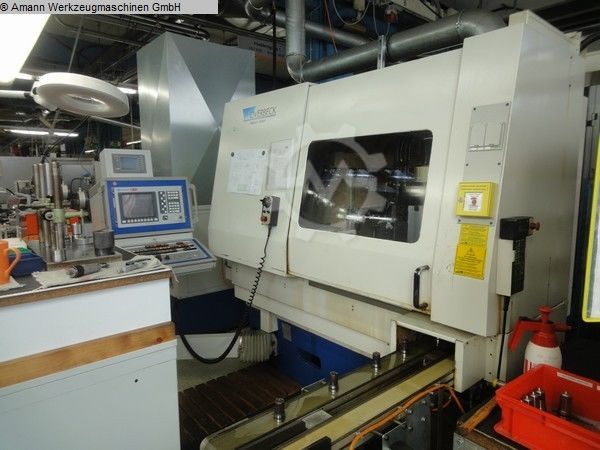

OVERBECK 600R CNC Cylindrical Grinding Machine

Posted By :
Comments : 0

grinding diameter 190 mm
grinding length 655 mm
centre height 230 mm
clamping length 655 mm
control MARPOSS E9034
swing dia. 190 mm
work piece spindle speed 20 – 1000 U/min
grinding spindle rotation speed 1337 / 1573 U/min.
dimensions of grinding wheel 500 x 80 x 203,20 mm
workpiece spindle swivable +/- 45 °
taper MK5
feed x-axis 1 – 9.999 mm/min
rapid traverse X-axis 10,00 m/min
grinding spindle drive 5,50 kW
workpiece weight max. 120 kg
power capacity 7,5 kW
total power requirement 16,00 kW
weight of the machine ca. 4,10 t
Bidwvmqn7e
dimensions of the machine ca. 5,00 x 4,00 x 3,20 m

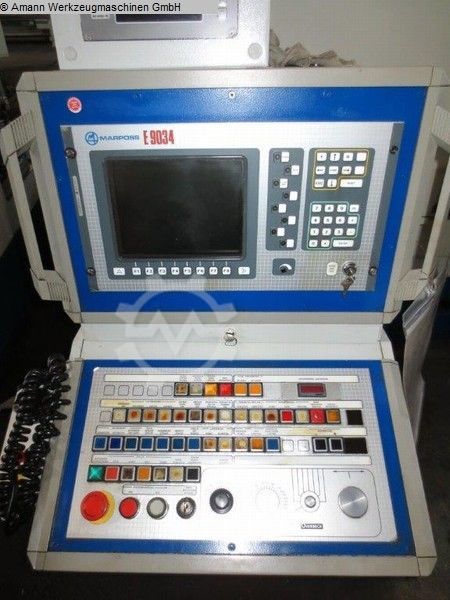

Marposs E9034 control, loading-and unloading roboter,
loading- and unloading belt, electric hand wheel x- and z-
axis, band filtre unit,
hydraulic chuck, regrind cycle
only in German language

Machine Data

Machine IDWM232658
OVERBECK 600R - CNC
Machine typeCylindrical Grinding Machine
ManufacturerOVERBECK
Model600R - CNC
Year of manufacture1998
Conditionused

Price and Location

LocationLager

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
