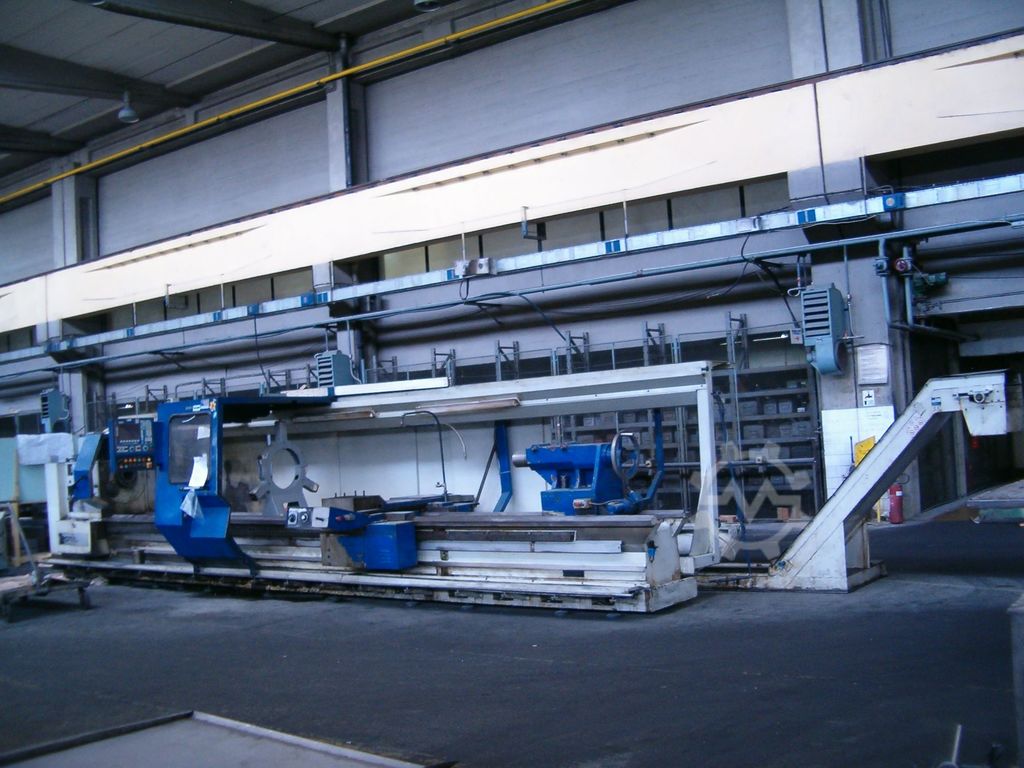

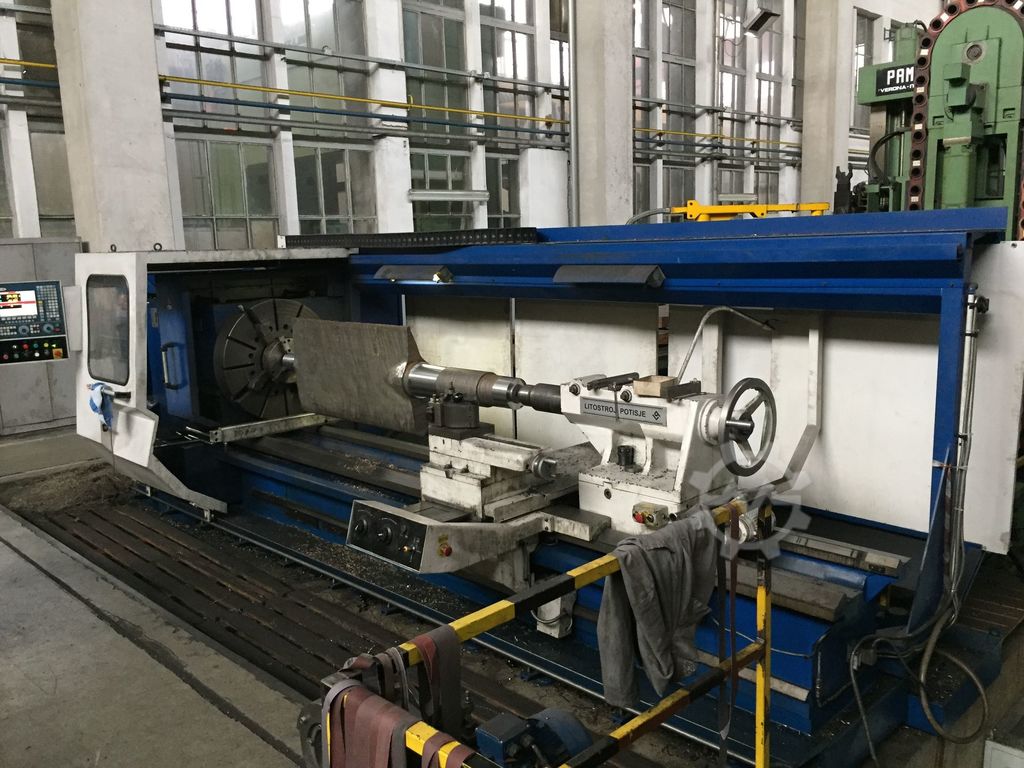

POTISJE PA50 6000 CNC horisontal lathe

Posted By :
Comments : 0

POTISJE PA 50/6000 CM with cycling controlled unit Fagor 8055 T
YOM 2002, GENERALLY OVERHAULED TO LIKE NEW CONDITION in MAY 2020

Characteristics of the machine:

Bil9c2ycum
Working range
Distance between centres 6000 mm
Swing diameter above bed 1000 mm
Swing diameter above cross slide 700 mm
Diameter of face plate 850 mm
Tool cross section 50×25
Headstock and spindle
Spindle nose DIN 55021
No 11
Spindle bore 140 mm
Spindle diameter at from bearing 190 mm
Spindle rpm
Range I 1-128 min-1
Range II 129-315 min-1
Range III 316-800 min-1
Bed and slideways
Bed width 650 mm
Width of carriage 820 mm
Travel of cross slide 610 mm
Max.feed rate x/z axis 5m/sec
Main drive
Motor power * 28,5 KW
Transverse drive 2.49 KW
Longitudinal drive 4.36 KW
Tailstock
Quill diameter 140 mm
Quill taper 6
Max.workpieces weight
Between centres with steady 6500 kg
Unsupported from one end 800 kg
Weight of machine 16000 kg
Maximum torque at face plate 5000 Nm

THE MACHINE IS EQUIPPED WITH FOLLOWING ACCESSORY:

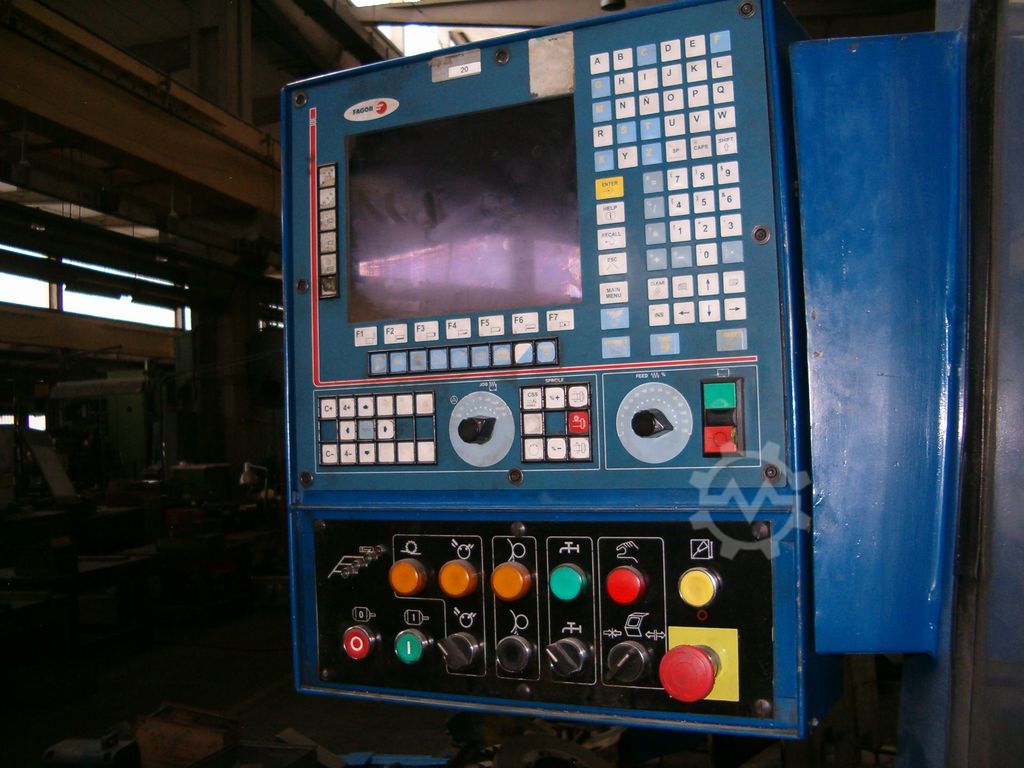

 Control unit FAGOR 8055 T
 Work light 24V
 Lubrication system
 Protection door – total length of the back side the machine
 – one mobil door on the front side of machine

 Coolant system
 Manual tailstock with electrical displacement
 Electro equipment for connection to the network 3*400V, 50Hz
 Tool holder Multifix D1
 Facing plate dia 850 mm with 4 chucks
 Fixing head dia 475 mm

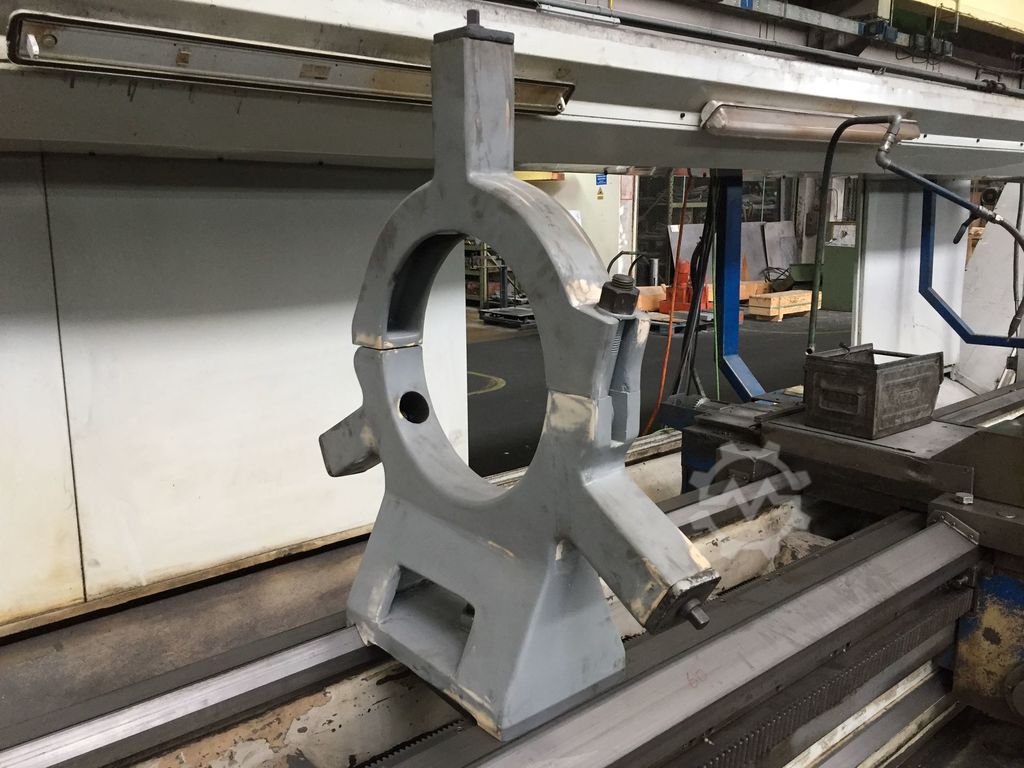

 Three linetes
 Chips conveyor
 CE conformity

Machine Data

Machine IDWM232236
POTISJE PA50-6000
Machine typeCNC horisontal lathe
ManufacturerPOTISJE
ModelPA50-6000
Year of manufacture2002
Conditionrefurbished (used)

Price and Location

LocationLjubljana , Slovenia

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
