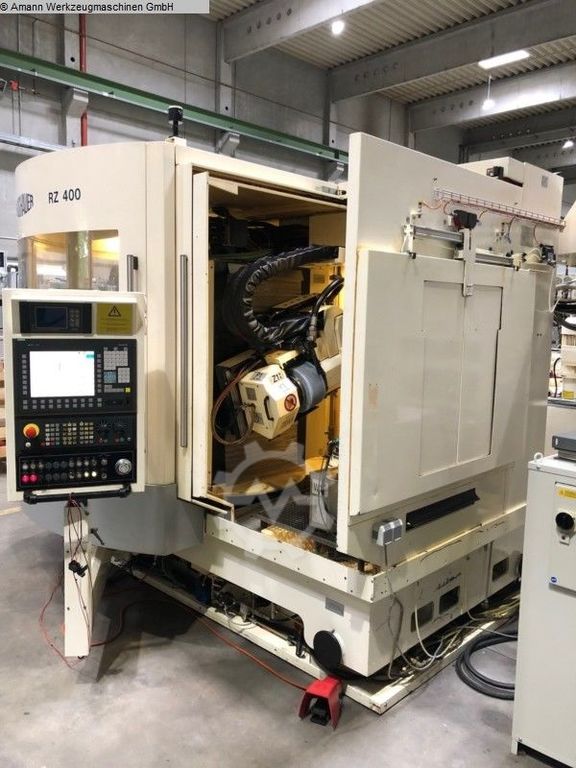

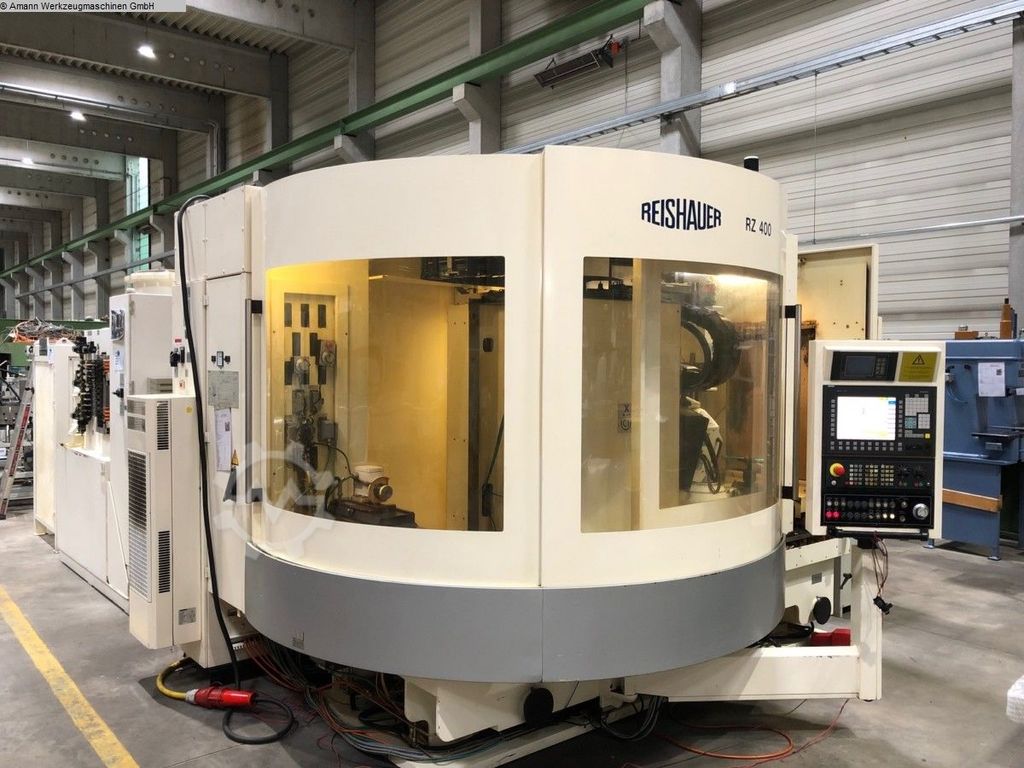

REISHAUER RZ 400 Gear Grinding Machine

Posted By :
Comments : 0

max. wheel diameter 400 mm
gear width 300 mm
max. module 8
min. module 0,3

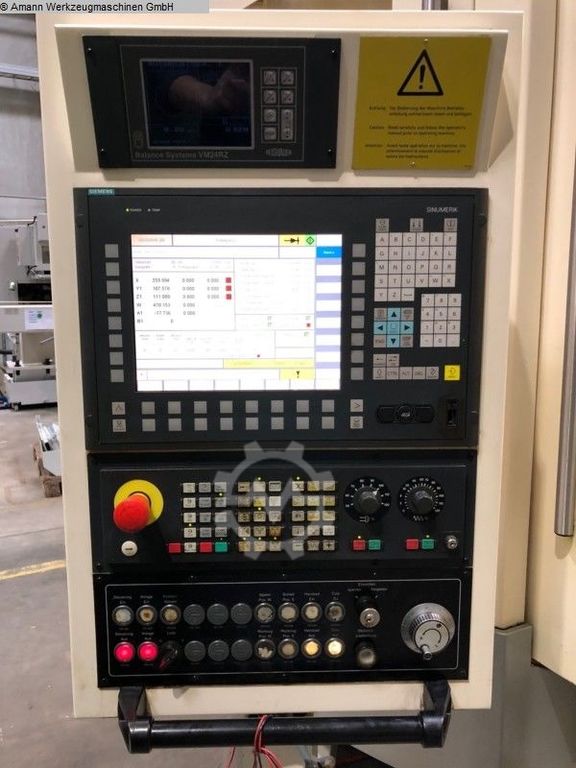

control Sinumerik 840 D
number of teeth 5 – 999
pressure angle 14 – 30 °
helix angle -45 / +45 °
workpiece weight max. 300 kg
x-axis 490 mm
rapid traverse X-axis 15 m/min
y-axis 220 mm
rapid traverse Y-axis 5 m/min
z-axis 300 mm
Beokxjoegj
rapid traverse Z-axis 5 m/min
grinding wheel diameter 205 – 300 mm
grinding wheel width max. 125 mm
boring diameter 160 H7 mm
number of starts 1 – 5
total power requirement 42 kW
weight of the machine ca. 12 t
dimensions of the machine ca. 7,70 x 5,00 x 2,90 m

Machine for manual assembly
It was manufactured individual parts and small series
2 flanges
1 clamping device incl. Tailstock and high pressure hydraulics
Reissauer collet system Ø65 mm

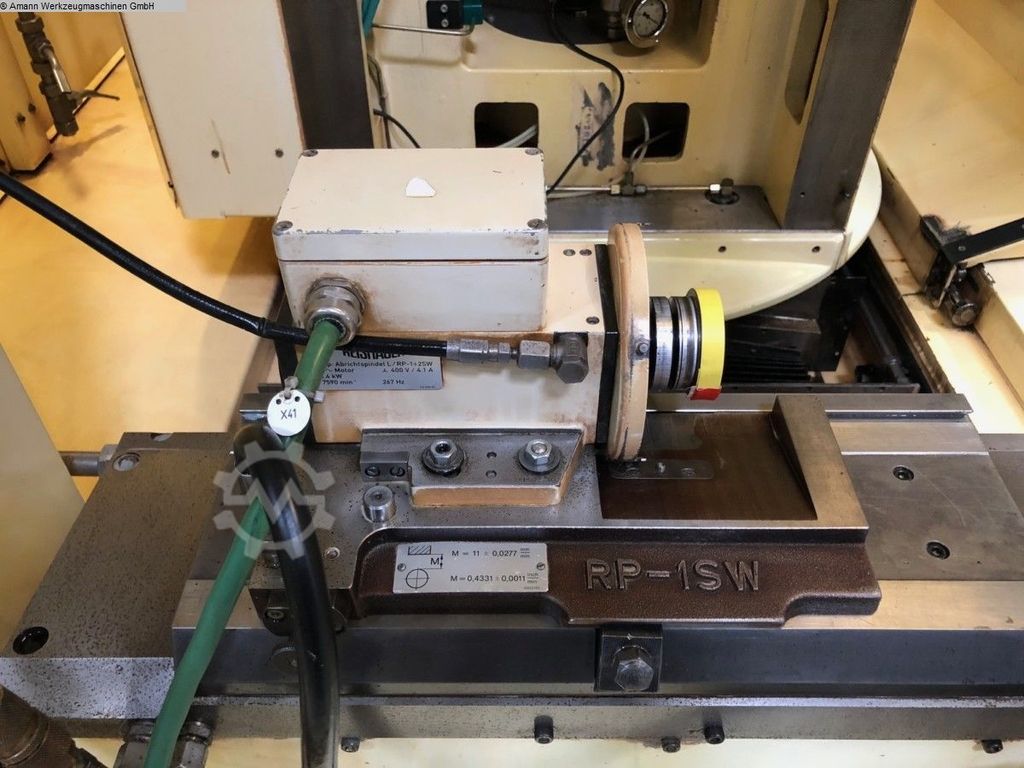

Reishauer dresser RP-1SW
Novotecnic coolant filter system
external oil cooler

Machine Data

Machine IDWM227836
REISHAUER RZ 400
Machine typeGear Grinding Machine
ManufacturerREISHAUER
ModelRZ 400
Year of manufacture2002
Conditionused

Price and Location

LocationLager

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
