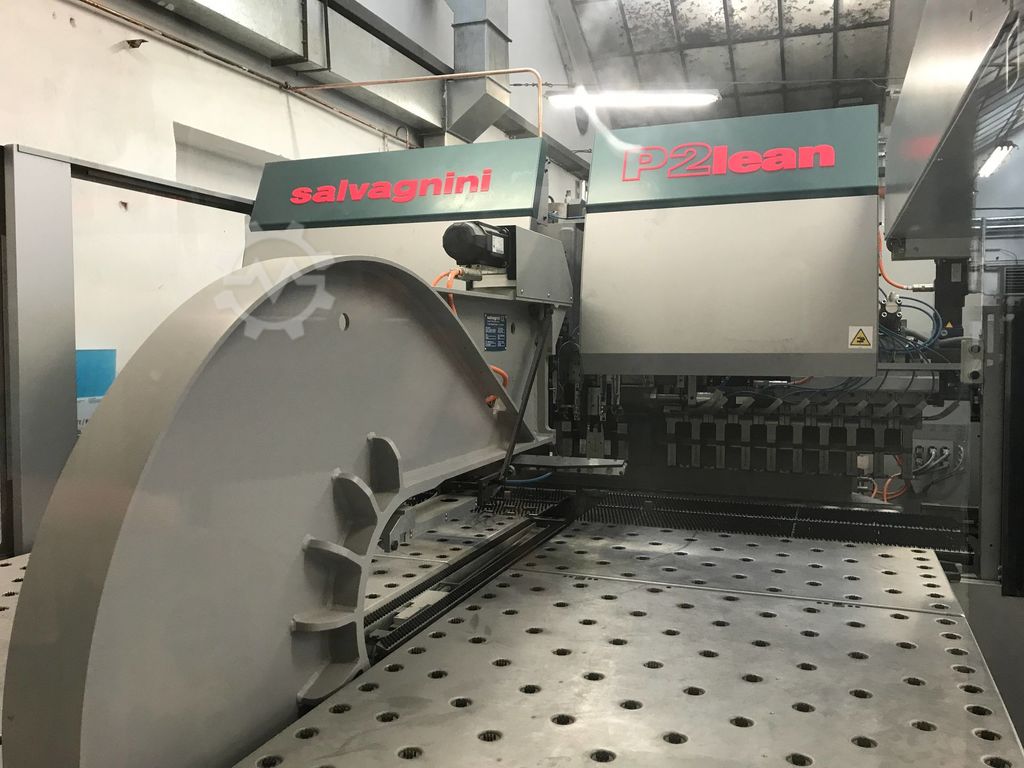

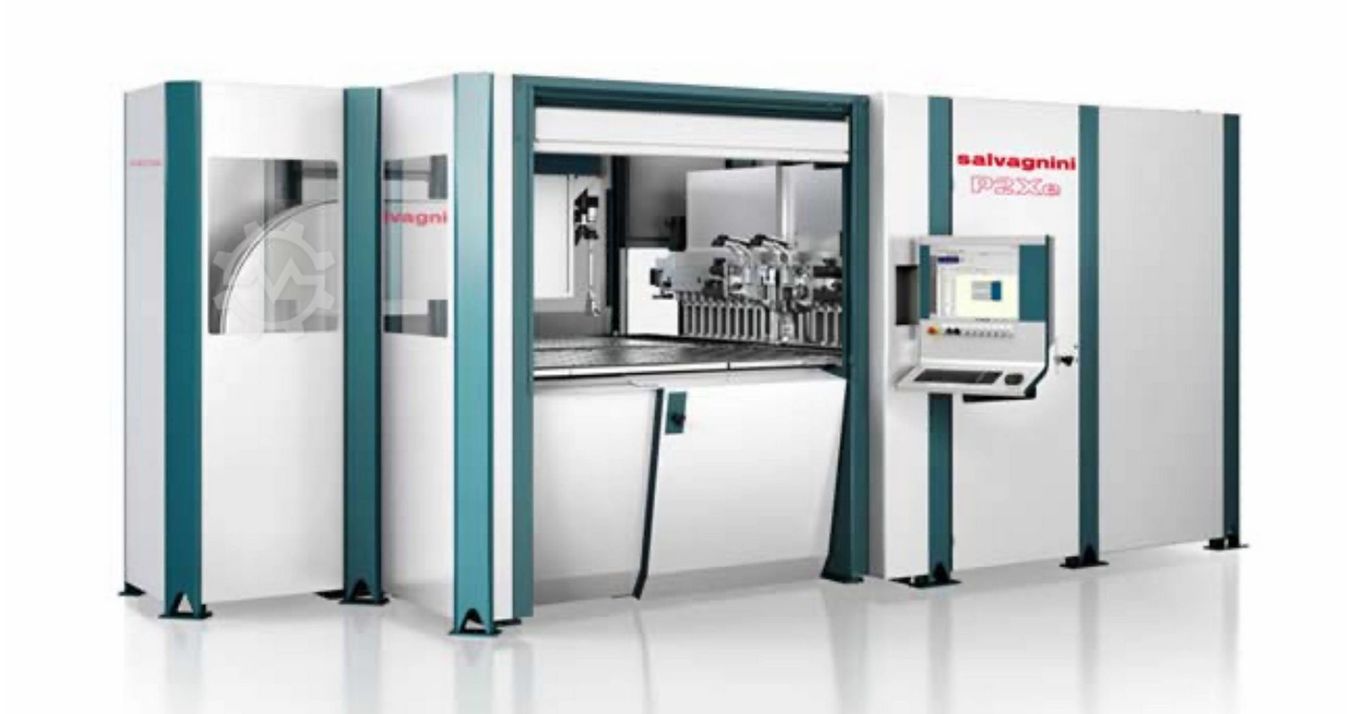

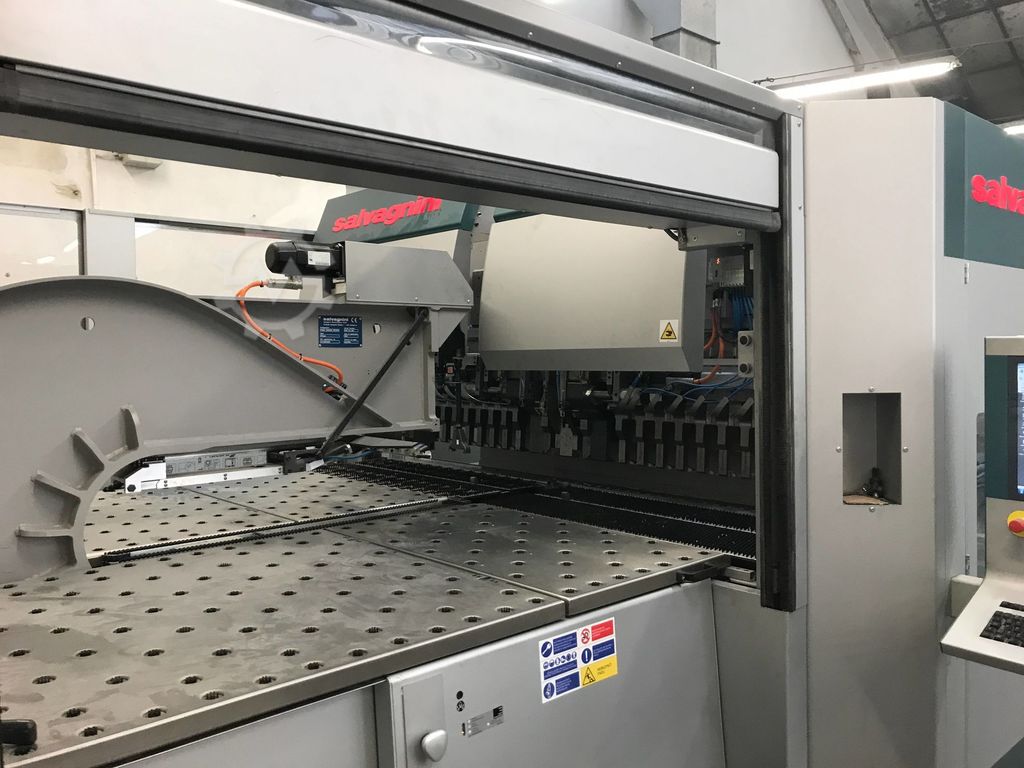

Automatic bending machine
Type: P2Xe-21

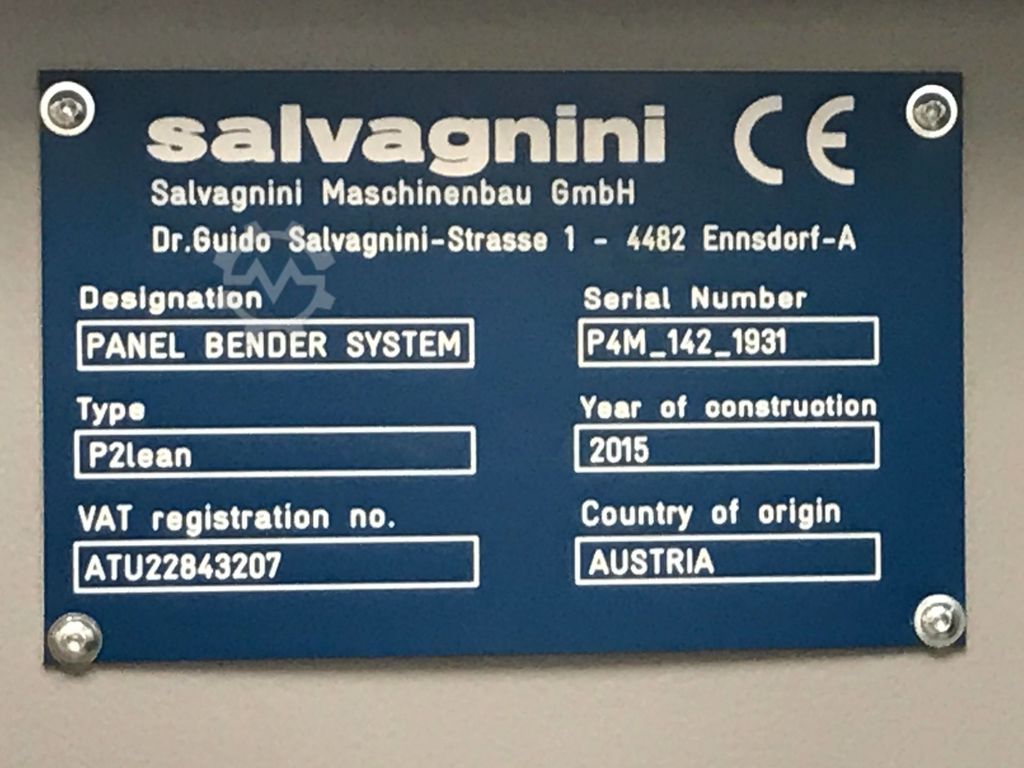

Manufacturer: Salvagnini
Year of production: 2015
Operating hours: 619 hours!
Control system: SiX
Production management software: JOB.CONSOLE.P4
Programming software: OFFICE.P4
Graphic software: EDIT.P4
Maximum length of the sheet to be laid: 2,495 mm
Maximum width of the loaded sheet: 1,524 mm
Cutting diagonal length: 0 – 2,500 mm
Bending length: 0 – 2.180 mm
Bending height above the work surface: 165 mm
LS special – top rail (special tools for ABA special holder.
Max. material thickness DC01: 1.5 mm
LI special – bottom rail (special tools for ABA special holder.
Max. material thickness DC01: 1.5 mm
Additional equipment:
ABA 30/400/130 Holder with automatic length adjustment.
W9kr0p2l
Set of tools with front and side grooves.
ABA special – modification of the dormice holder for bending very narrow profiles
CLA-A – tool for auxiliary bending of the tool for positive bending with asymmetric control (two more numerically controlled axes)
UCE640 – set of CLA tools for positive bends (12 pairs of CLA tools with a total length of 640 mm + 1 pair of CLA tools 75 mm for – 45 °.
Maintenence Manager – manager of maintenance and replacement of used parts.
Easy Data – diagnostic software
DPM – manipulator for narrow profiles. Spare manipulator with suction cups from the side.
External dimensions of the machine: 5.6 x 5.1 meters
Machine weight: 18 tons
