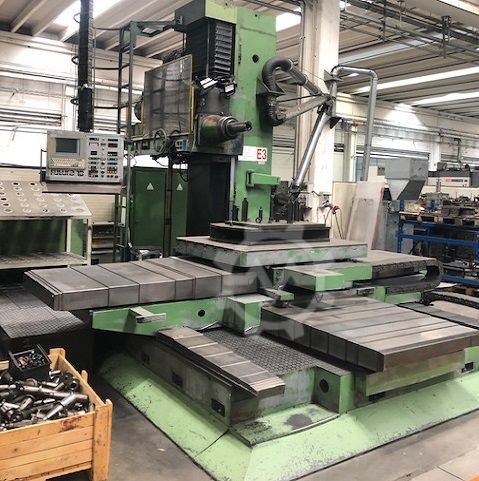

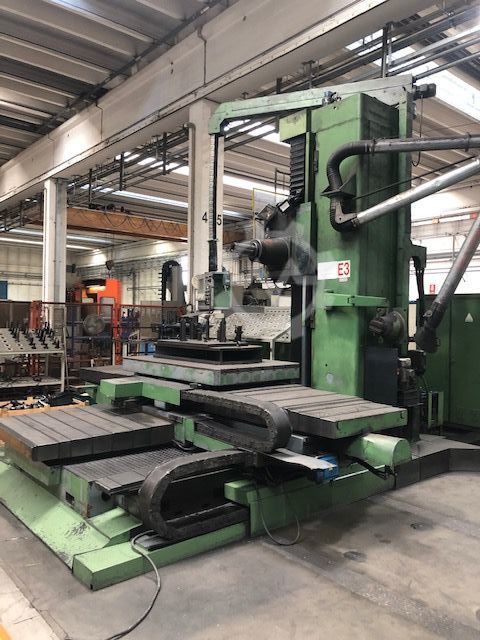

San Rocco FUTURA 13 Boring machine

Posted By :
Comments : 0

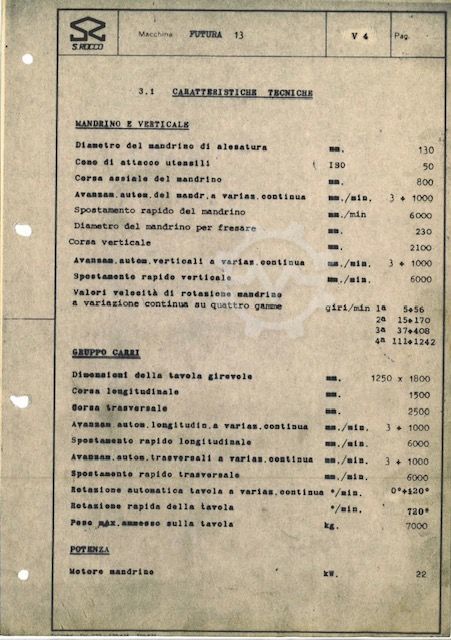

Rotary table dimensions: 1250×1800 mm
Longitudinal travel: 1500 mm
Cross travel: 2500 mm
Biyzbrwep9
Longitudinal automatic feeds with continuous variation: 3 ÷ 1000 mm / min
Longitudinal rapid movement: 6000 mm / min
Continuously variable automatic transverse feeds: 3 ÷ 1000 mm / min
Rapid transversal movement: 6000 mm / min
Maximum weight allowed on the table: 7000 kg
Spindle motor power: 22 kW
Ø boring spindle: 130 mm
Spindle cone ISO 50
Axial travel of the spindle: 800 mm
Continuously variable automatic spindle feeds: 3 ÷ 1000 mm / min
Quick spindle movement: 6000 mm / min
Ø spindle for milling: 230 mm
Vertical stroke: 2100 mm
Vertical automatic feeds with continuous variation: 3 ÷ 1000 mm / min
Rapid vertical movement: 6000 mm / min

Machine Data

Machine IDWM233254
San Rocco FUTURA 13
Machine typeBoring machine
ManufacturerSan Rocco
ModelFUTURA 13
Conditiongood condition (used)

Price and Location

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163

Seller's other machines (14092)
